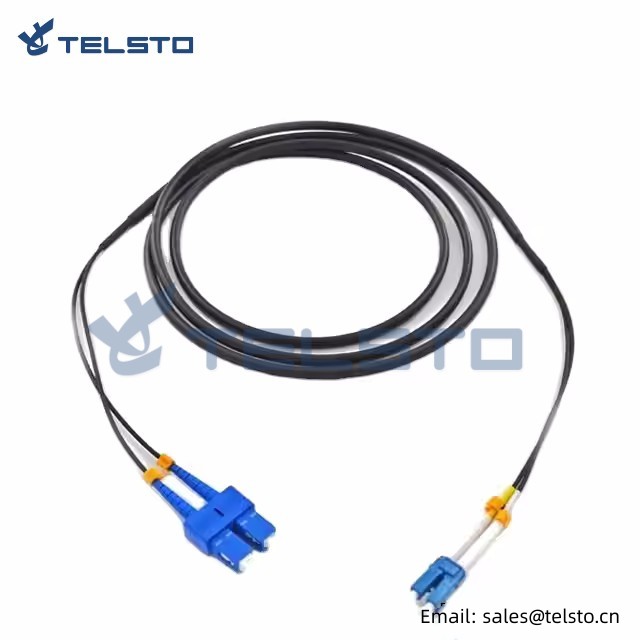

DLCPC DLCPC fiber optic Cable Assembly

Fiber Type: Singlemode (SM) or Multimode (MM)

Cable Type: Simplex or Duplex

Insertion Loss: 0.3 dB

Cable Color: Black

Place of Origin: Shanghai, China (Mainland)

Brand Name: Telsto

Send email to us

Description

Optical Cable Assembly, DLC/PC,DLC/PC, Single mode, GYFJH 2B1 (LSZH), 7.0mm, 2 Cores outdoor protected branch

The Optical Cable Assembly features DLC/PC connectors and is available in both Single mode and Multi mode configurations. It is constructed with GYFJH 2B1 (LSZH) material, ensuring safety and durability. The cable has a diameter of 7.0 mm and contains 2 cores, making it suitable for outdoor protected branch applications.

DLC PC DLC PC fiber optic Cable Assembly

Application

The FTTA (Fiber to the Antenna) patch cord is designed for a variety of applications, including:

● 3G and 4G base stations
● Aerospace and Defense
● Equipment diagnostics
● Fiber Optic sensors
● FTTA, FTTP, and FTTX networks
● WiMAX
● Baseband Units (BBU)
● Remote Radio Units (RRU)
● Remote Radio Heads (RRH)
● Long-Term Evolution (LTE)

Products Description

GJFJV Cable

Single mode fiber

Item	Unit	Specification
Attenuation	dB/km	1310nm≤0.41550nm≤0.3
Dispersion	Ps/nm.km	1285~1330nm≤3.51550nm≤18.0
Zero dispersion wavelength	Nm	1300~1324
Zero dispersion slope	Ps/nm.km	≤0.095
Fiber cutoff wavelength	Nm	≤1260
Mode field diameter	Um	9.2±0.5
Mode field concentricity	Um	<=0.8
Cladding diameter	um	125±1.0
Cladding non-circularity	%	≤1.0
Coating/cladding concentricity error	Um	≤12.5
Coating diameter	um	245±10
bending, dependence induced attenuation	1550nm, 1turns,32mm diameter 100rums,60mm diameter	≤0.5 db
Proof test	kpsi	≥100

Each Requirement

1 –Fiber count-------22 – Fiber characteristic -------OD: 245±10um

3 Characteristic of tight buffered

4 OD: 0.87±0.05mm

2.0LSZH simplex optical fiber cable : Color : according to the

contract

- White 0.9mm PVC

- OD: 0.87±0.06mm

Thickness: 0.30±0.03mm

5 – Out jacket: LSZH

Connector Specification

Singlemode

ITEM	PARAMETER
Connector type	LC/UPC, SC/UPC, FC/UPC, ST/UPC.	LC/APC, SC/APC, FC/APC, ST/APC
Insertion Loss	<=0.2db	<=0.3db
Return Loss	>=50db	>=60db
Fiber mode	Single-mode
Operating wavelength	1310, 1550nm
Test wavelength	1310,1550nm
Repeatability	<=0.1
Interchangeability	<=0.2dB
Durability	<=0.2dB
Fiber Length	1m, 2m….. any length optional.
Length and tolerance	10cm
Operating Temperature	-40C ~ +85C
Storage Temperature	-40C ~ +85C

Multi mode

ITEM	PARAMETER
Connector type	LC/UPC, SC/UPC, FC/UPC, ST/UPC. Optional
Fiber mode	Multi-mode
Operating wavelength	850, 1300nm
Test wavelength	850, 1300nm
Insertion Loss	<=0.2db
Return Loss	>=35db
Repeatability	<=0.1
Interchangeability	<=0.2dB
Durability	<=0.2dB
Fiber Length	1m, 2m….. any length optional.
Length and tolerance	10cm
Operating Temperature	-40C ~ +85C
Storage Temperature	-40C ~ +85C
