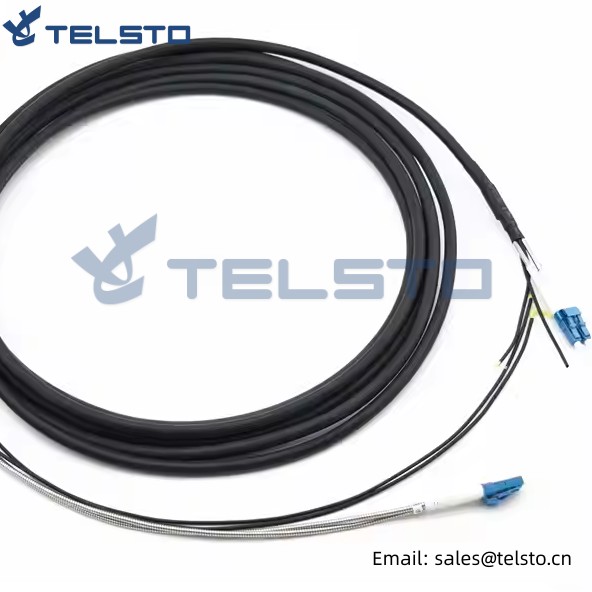

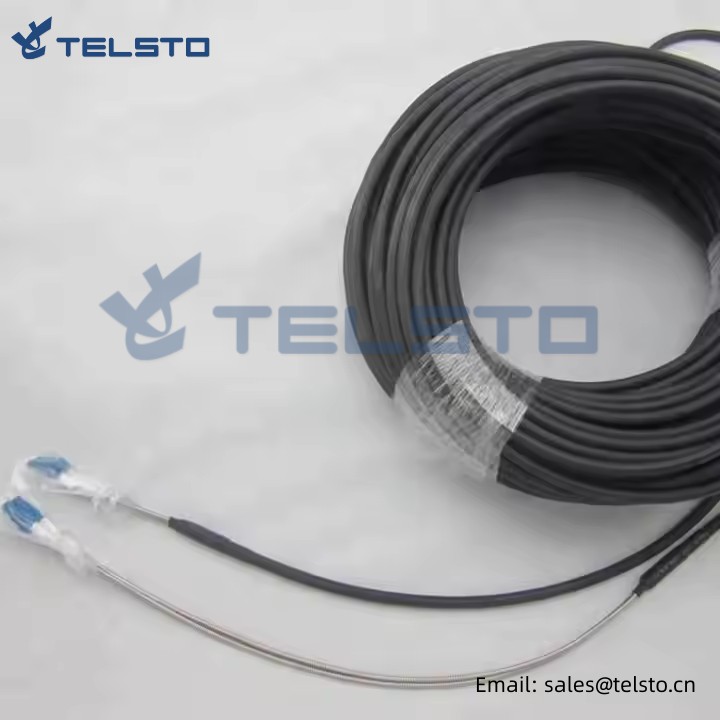

DLCPC GYFJH 2A1a (LSZH) 7.0mm 2 Cores OM2 Outdoor RRU CPRI Fiber Optic Patch Cord
DLC/PC GYFJH 2A1a (LSZH) 7.0mm 2-Cores OM2 Outdoor RRU CPRI Fiber Optic Patch Cord
Application
A FTTA patch cord is used in various applications, including 3G/4G base stations, aerospace and defense, equipment diagnostics, fiber optic sensors, FTTA, FTTP, FTTX, WiMAX, BBU, RRU, RRH, and LTE.
Specification
GJFJV Cable
multimode fiber
| Item | Unit | Specification | |
| Attenuation | dB/km | 850 nm≤3.5
1300 nm≤1.5 |
|
| Bandwidth | MHz·km | 50/125um | 62.5/125 um |
| 850 nm≥200 | 850 nm≥160 | ||
| 1300 nm≥200 | 1300 nm≥200 | ||
| Cladding diameter | um | 125±1.0 | |
| Cladding non-circularity | % | ≤1.0 | |
| Coating/cladding concentricity error | Um | ≤12.5 | |
| Coating diameter | um | 245±10 | |
| bending, dependence induced attenuation | 850nm,1300nm 100turns,75mm diameter | ≤0.5 at 850 nm\1300 nm | |
| Proof test | kpsi | ≥100 | |
Each Requirement
1 –Fiber count-------2
2 – Fiber characteristic -------OD: 245±10um
3 Characteristic of tight buffered
4 OD: 0.87±0.05mm
2.0LSZH simplex optical fiber cable : Color : according to the contract
- White 0.9mm PVC
- OD: 0.87±0.06mm
Thickness: 0.30±0.03mm
5 – Out jacket: LSZH
Connector Specification
Multimode
|
ITEM |
PARAMETER |
|
Connector type |
LC/UPC, SC/UPC, FC/UPC, ST/UPC. Optional |
|
Fiber mode |
Multi-mode |
|
Operating wavelength |
850, 1300nm |
|
Test wavelength |
850, 1300nm |
|
Insertion Loss |
<=0.2db |
|
Return Loss |
>=35db |
|
Repeatability |
<=0.1 |
|
Interchangeability |
<=0.2dB |
|
Durability |
<=0.2dB |
|
Fiber Length |
1m, 2m….. any length optional. |
|
Length and tolerance |
10cm |
|
Operating Temperature |
-40C ~ +85C |
|
Storage Temperature |
-40C ~ +85C |
