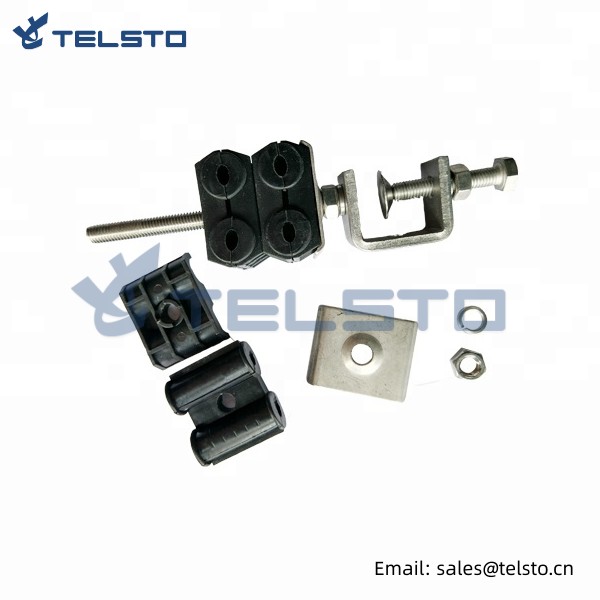

Optic fiber clamp for 7-12mm
Telsto optic fiber clamps are used to fix power cable and fiber optical cable at the same time. It’s available for power cable: 7-12mm, Optic fiber cable: 4-7mm. It can fix two fiber cables and two power cables. The C-shape bracket and pressing board are compact and terse. It is simple to fix the cables reliably.
Features/Benefits
● Customized products
● High quality materials
● Total fastening
| Technical Specifications | |||||||
| Product Type | Optic Fiber Clamp | ||||||
| Hanger Type | Double Multi-block | ||||||
| Cable Type | Power Cable, Fiber Cable | ||||||
| Power Cable Size | 4-7mm Optical Fiber Cable, 7-12mm Power Cable | ||||||
| Holes/Runs | 2 per layer, 2 layers, 4 runs | ||||||
| Configuration | Angle member adapter | ||||||
| Thread | 2x M8 | ||||||
| Material | Metal part: 304SS | ||||||
| Plastic parts: PP | |||||||
| Pipe parts: Rubber | |||||||
| Consist of : | |||||||
| Angle adapter | 1pc | ||||||
| Thread | 2pcs | ||||||
| Bolts & nuts | 2sets | ||||||
| Plastic saddles | 4pcs | ||||||
| Operation Temperature | -40℃-85℃ | ||||||
| Inner Packing | 5pcs/bag | ||||||
| Outer Packing | Standard exporting carton with pallet | ||||||
