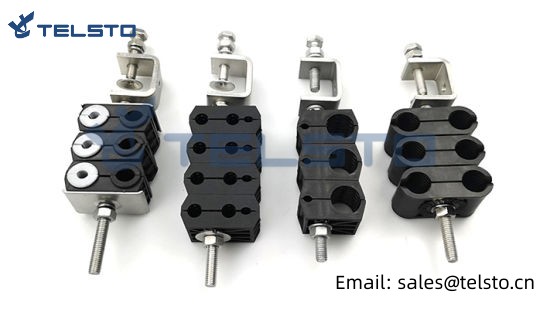

Cable clamp for fiber optical cable(FO) and power cable(DC) 10-12.5mm


  • Place of Origin: Shanghai, China (Mainland)
  • Brand Name: Telsto
  • Product name: Cable Fixing Clip
  • Material: Stainless Steel/rubber
  • Size: 1/2'' 7/8'' 1-1/4'' 1-5/8'' coaxial cable
  • Application: Telecommunication
  • Description

    Telsto optic fiber clamps are used to fix power cable and fiber optical cable at the same time. It’s available for round power cable 10-12.5mm, Optic cable 5-8mm. It can fix three fiber cables and three power cables at most. The C-shape bracket and pressing board are compact and terse. It is simple to fix the cables reliably.

    Features/Benefits

    ●  Customized products

    ●  High quality materials

    ●  Total fastening

    通用6
    Technical Specifications
    Product Type       Optic Fiber Clamp
    Hanger Type       Double Multi-block
    Cable Type       Fiber Cable, power cable
    Power Cable Size       5-8mm Optical Fiber Cable + 10-12.5mm Cable
    Holes/Runs   As customized
    Configuration       Angle member adapter
    Thread   2x M8
    Material       Metal part: 304SS
            Plastic parts: PP
            Pipe parts: Rubber

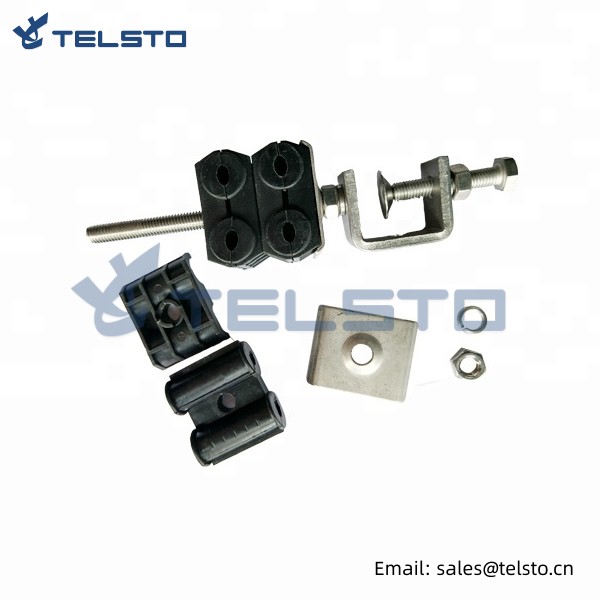

    Consist of :
    Angle adapter       1pc
    Thread       2pcs
    Bolts & nuts       2sets
    Plastic saddles     6pcs



    Gold Supplier Cable Fixing Clip, Feeder Clamp

    Feeder clamp is widely used in site installation to fix coaxial feeder cables to base towers, these clamps provide an efficient way of managing & securing the feeder installation system.

    通用8
    Unit Price Base on FOB and base on quantity Material 304 stainless steel/rubber/PP
    Feature Durability/Quick & easy installation/UV & weather Resistance MOQ 100pcs
    Sample Time 1-3 Days Delivery Time 5-10 days
    Payment Terms T/T; L/C; Western Union; PayPal

    Cable Fixing Clip Com positive List:

    Part Name Spec Quantity Note
    Screw M8 1pcs SUS304
    Nut M8 3pcs SUS304
    Washer Φ8 2pcs SUS304
    Spring Washer Φ8 1pcs PP
    Clamping Piece 1/2'' or customized 4pcs SUS304
    Angle Adaptor   1pcs SUS304
    Gasket Φ20 1pcs SUS304
    Bolt M8x40 1pcs SUS304



    Features/Benefits:

    1. Single multi blocks are manufactured of polypropylene providing thermal, chemical and UV resistance.

    2. They come including angle member adapter and necessary hardware.

    3. The angle member adapter fastens the clamp to the tower without drilling.

    4. The angle member adapter includes a tower member set screw.

    5. The hanger mounting rod may be located in either of two mounting holes, depending on orientation the fixing member.

    6. Compliant to RoHS (EU 2002/95/EC) and RoHS (China SJ/T 11363-2006) i.e. usable on a global basis.

    Capability Index:

    1. high temperature: +75℃;

    2. low temperature: -40℃;

    3. salt spray test: 48h, No Rustiness.

    Our Services

    1. Reply your enquiry in 24 working hours.
    2. Customized design is available. OEM &ODM are welcome.
    3. Exclusive and unique solution can be provided to our customer by our well-trained and professional engineers and staffs.
    4. Quick delivery time for decent order.
    5. Experienced in doing business with big customers.
    6. Free Samples can be provided.
    7. 100% Trade Assurance of payment & quality.

    FAQ

    Q1. What is your terms of payment?

    A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shipment.

    Q2. What is your terms of delivery?

    A: EXW, FOB, CFR, CIF, DDU.

    Q3. How about your delivery time?

    A: Generally it is 3-5 days if the goods are in stock. or it is 7-10 days if the goods are not in stock, it is according to quantity.

    Q4. Can you produce according to the samples?

    A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.

    Q5. What is your sample policy?

    A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

    Q6. Do you test all your goods before delivery?

    A: Yes, we have 100% test before delivery.

    Q7: How do you make our business long-term and good relationship?

    A:1. We keep good quality and competitive price to ensure our customers’ benefit ;

    2. We respect every customer as our friend and we sincerely do business and make friends with them.

    PACKING REFERENCE:
