Cable clamp for fiber optical cable(FO) and power cable(DC)
The Clamps are manufactured out of UV resistant material. The design offers least stress and maximum grip to manage the cable system. They are strictly made out of non-rusting product to sustain all weather conditions. The material of these products is high standard stainless steel and high-quality PP/ABS.

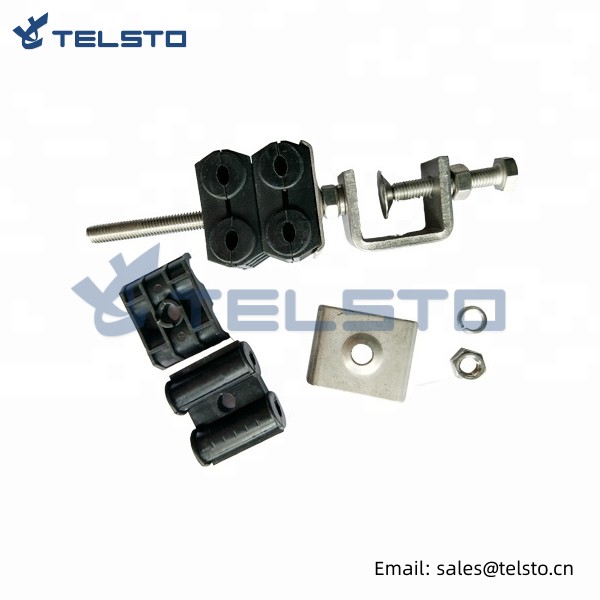

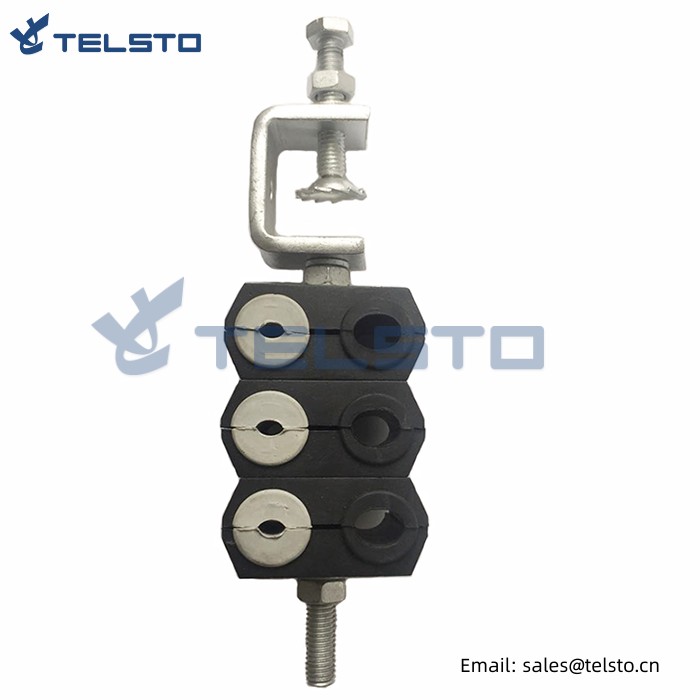

Telsto optic fiber clamps are used to fix power cable and fiber optical cable at the same time. It’s available for round power cable 10-12.5mm, Optic cable 4-7mm. It can fix three fiber cables and three power cables at most. The C-shape bracket and pressing board are compact and terse. It is simple to fix the cables reliably.
Features/Benefits
● Customized products
● High quality materials
● Total fastening
| Technical Specifications | |||||||
| Product Type | Optic Fiber Clamp | ||||||
| Hanger Type | Double Multi-block | ||||||
| Cable Type | Fiber Cable, power cable | ||||||
| Power Cable Size | 4-7mm Optical Fiber Cable + 10-12.5mm Cable | ||||||
| Holes/Runs | As customized | ||||||
| Configuration | Angle member adapter | ||||||
| Thread | 2x M8 | ||||||
| Material | Metal part: 304SS | ||||||
| Plastic parts: PP | |||||||
| Pipe parts: Rubber | |||||||
| Consist of : | |||||||
| Angle adapter | 1pc | ||||||
| Thread | 2pcs | ||||||
| Bolts & nuts | 2sets | ||||||
| Plastic saddles | 6pcs | ||||||
Gold Supplier Cable Fixing Clip, Feeder Clamp
Feeder clamp is widely used in site installation to fix coaxial feeder cables to base towers, these clamps provide an efficient way of managing & securing the feeder installation system.
| Unit Price | Base on FOB and base on quantity | Material | 304 stainless steel/rubber/PP |
| Feature | Durability/Quick & easy installation/UV & weather Resistance | MOQ | 100pcs |
| Sample Time | 1-3 Days | Delivery Time | 5-10 days |
| Payment Terms | T/T; L/C; Western Union; PayPal |
Cable Fixing Clip Com positive List:
| Part Name | Spec | Quantity | Note |
| Screw | M8 | 1pcs | SUS304 |
| Nut | M8 | 3pcs | SUS304 |
| Washer | Φ8 | 2pcs | SUS304 |
| Spring Washer | Φ8 | 1pcs | PP |
| Clamping Piece | 1/2'' or customized | 4pcs | SUS304 |
| Angle Adaptor | 1pcs | SUS304 | |
| Gasket | Φ20 | 1pcs | SUS304 |
| Bolt | M8x40 | 1pcs | SUS304 |
Features/Benefits:
1. Single multi blocks are manufactured of polypropylene providing thermal, chemical and UV resistance.
2. They come including angle member adapter and necessary hardware.
3. The angle member adapter fastens the clamp to the tower without drilling.
4. The angle member adapter includes a tower member set screw.
5. The hanger mounting rod may be located in either of two mounting holes, depending on orientation the fixing member.
6. Compliant to RoHS (EU 2002/95/EC) and RoHS (China SJ/T 11363-2006) i.e. usable on a global basis.
Capability Index:
1. high temperature: +75℃;
2. low temperature: -40℃;
3. salt spray test: 48h, No Rustiness.
| 1. Reply your enquiry in 24 working hours. |
| 2. Customized design is available. OEM &ODM are welcome. |
| 3. Exclusive and unique solution can be provided to our customer by our well-trained and professional enginers and staffs. |
| 4. Quick delivery time for decent order. |
| 5. Experienced in doing business with big customers. |
| 6. Free Samples can be provided. |
| 7. 100% Trade Assurance of payment & quality. |
FAQ
Q1. What is your terms of payment?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shipment.
Q2. What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.
Q3. How about your delivery time?
A: Generally it is 3-5 days if the goods are in stock. or it is 7-10 days if the goods are not in stock, it is according to quantity.
Q4. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q5. What is your sample policy?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q6. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
Q7: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers’ benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them.
