Coaxial Cable Power Cable Clamp
Feeder clamps are widely used in site installation to fix RF coaxial feeder cables onto base towers (BTS). Telsto feeder clamps are designed for different BTS site installation and kinds of antenna system. The material of these products is high standard stainless steel and high quality plastics.
*Various stainless steel feeder clamps are applicable for fixing feeders.
*Made of high quality anti-acid steel.
*Modified plastics and non-rusting.

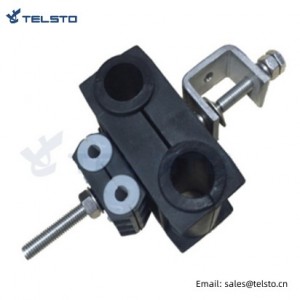

Feeder cable double clamp for two pieces of 1/4", 3/8", 1/2", 5/8", 7/8", 1-1/4", 1-5/8" Coax
Operating temperature: -40° to 75°
Other available size: For 1/2", 3/8”, 7/8”, 1-1/4”, 1-5/8”, 2-1/4” RF coaxial cable
| Product | Description | Part No. |
| Single Type | For 1/2" cable, 1 run | TEL-FC-S-1x1/2 |
| For 1/2" cable, 2 runs | TEL-FC-S-2x1/2 | |
| For 1/2" cable, 3 runs | TEL-FC-S-3x1/2 | |
| For 7/8" cable, 1 run | TEL-FC-S-1x7/8 | |
| For 7/8" cable, 2 runs | TEL-FC-S-2x7/8 | |
| For 7/8" cable, 3 runs | TEL-FC-S-3x7/8 | |
| For 1-1/4" cable, 1 run | TEL-FC-S-1x5/4 | |
| For 1-1/4" cable, 2 runs | TEL-FC-S-2x5/4 | |
| For 1-1/4" cable, 3 runs | TEL-FC-S-3x5/4 | |
| For 1-5/8" cable, 1 run | TEL-FC-S-1x13/8 | |
| For 1-5/8" cable, 2 runs | TEL-FC-S-2x13/8 | |
| For 1-5/8" cable, 3 runs | TEL-FC-S-3x13/8 | |
| Double Type | For 1/2" cable, 2 runs | TEL-FC-D-2x1/2 |
| For 1/2" cable, 4 runs | TEL-FC-D-4x1/2 | |
| For 1/2" cable, 6 runs | TEL-FC-D-6x1/2 | |
| For 7/8" cable, 2 runs | TEL-FC-D-2x7/8 | |
| For 7/8" cable, 4 runs | TEL-FC-D-4x7/8 | |
| For 7/8" cable, 6 runs | TEL-FC-D-6x7/8 | |
| For 1-1/4" cable, 2 runs | TEL-FC-D-2x5/4 | |
| For 1-1/4" cable, 4 runs | TEL-FC-D-4x5/4 | |
| For 1-1/4" cable, 6 runs | TEL-FC-D-6x5/4 | |
| For 1-5/8" cable, 2 runs | TEL-FC-D-2x13/8 | |
| For 1-5/8" cable, 4 runs | TEL-FC-D-4x13/8 | |
| For 1-5/8" cable, 6 runs | TEL-FC-D-6x13/8 |
| Com positive Parts | ||||
| SN | Part Name | Spec | Qty | Material |
| 1 | Angle Adapter | 1 | SS304 | |
| 2 | Bolt | M8 | 1 | SS304 |
| 3 | Gasket | φ
20 |
1 | SS304 |
| 4 | Plastic Clamping Pieces | 1/2" | 4 | PP |
| 5 | Screw | M8 | 1 | SS304 |
| 6 | Nut | M8 | 3 | SS304 |
| 7 | Washer | φ
8 |
2 | SS304 |
| 8 | Spring Washer | φ
8 |
1 | SS304 |
Packaging & Shipping
Packing: 1pcs per Pvc bag, 50 pcs per carton, then packed in pallet.
PVC bag, Export Carton, Big quantity with pallet.
Shipping by sea, by air or by courier. From Shanghai Port
