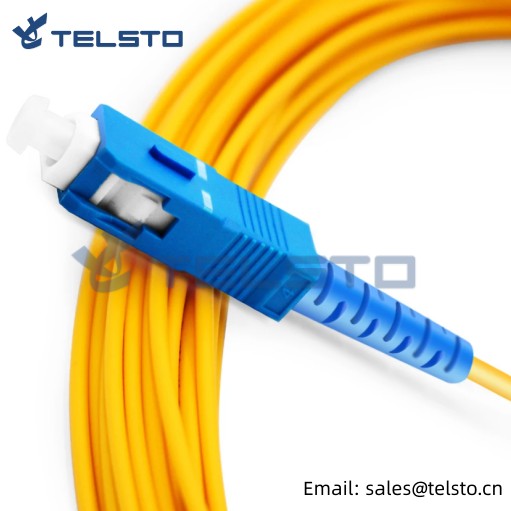

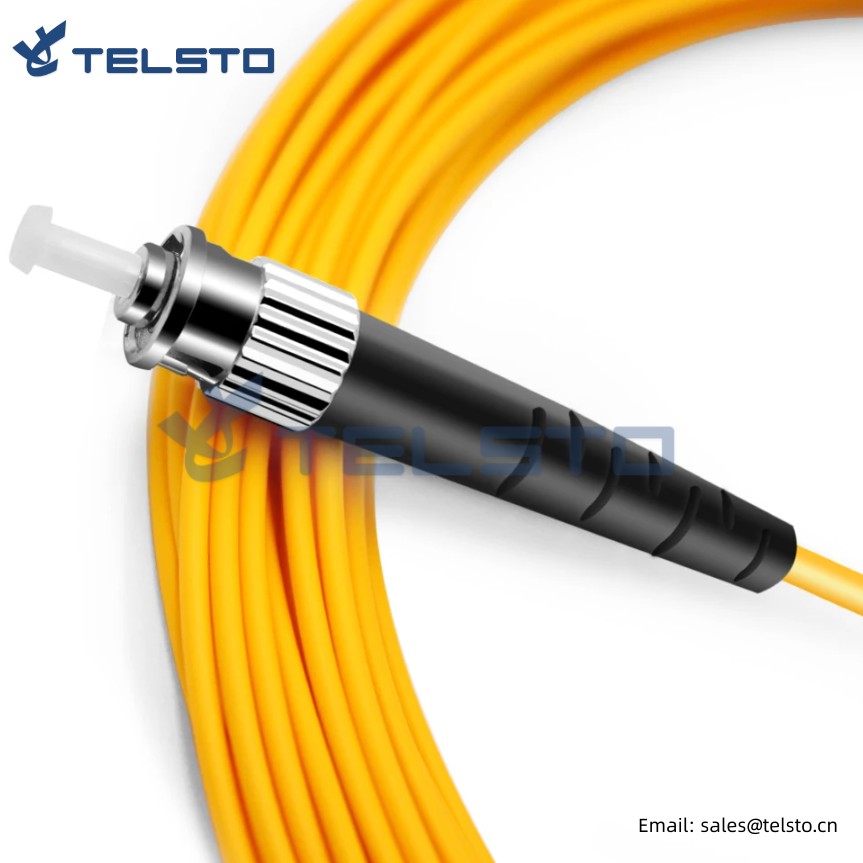

Factory price fiber jumper sc to st upc sm sx 2.0mm 3m 5m 6m fiber optic patch cord
Fiber Optic Patch Cord is important of optical network. They have same or different connectors which are installed on the end of fiber optic cable. The Fiber Optic Patch Cord series comes with a comprehensive collection of lengths and connectors to fulfill your demand for the deployment.
Feature
1. Price-Competitive
2. Low Insertion Loss & PDL
3. Factory-terminated and Tested
4. Fiber Options:G.652/G.657/OM1/OM2/OM3 and PM Panda Fiber
5. Connector Options :FC/SC/LC/ST/MU/DIN/SMA/E2000/MT-RJ/MPO/MTP
6. Polishing Options:PC/UPC/APC
7. Feature Connector with Ceramic Ferrules
| Cable Type |
unit |
Numerical value |
||||
| Connector type |
/ |
FC、SC、LC、ST、MU、Mini、SMA、MTRJ |
||||
| Central wavelength |
nm |
1550 |
1310 |
1300 |
850 |
|
| Maximum insertion loss (23℃) |
dB |
Typical value 0.1 maximum 0.3 |
Typical value 0.1 maximum 0.3 |
Typical value 0.1 maximum 0.3 |
Typical value 0.1 maximum 0.3 |
|
| Minimum return loss (23℃) | PC |
dB |
≥45 |
≥30 | ||
| UPC |
dB |
≥50 |
≥35 | |||
| APC |
dB |
≥60 |
/ | |||
| Repeatability |
dB |
≤0.1 |
||||
| Interchangeability |
dB |
≤0.2 |
||||
| Axis alignment Angle tolerance |
deg |
±0.3 |
||||
| Number of plug |
Times |
≥1000 |
||||
| Operating temperature |
℃ |
-20~+70 |
||||
| Storage temperature |
℃ |
-40~+85 |
||||
| Central wavelength | 1550nm、1310nm、1300nm、 850nm |
| Enter the connector type
Output connector type
Optical fiber number |
FC/UPC、SC/UPC、LC/UPC、ST/UPC、MU/UPC、Mini/UPC、SMA/UPC、MTRJ/UPC |
| FC/APC、SC/APC、LC/APC、ST/APC、MU/APC、Mini/APC、SMA/APC、MTRJ/APC FC/UPC、SC/UPC、LC/UPC、ST/UPC、MU/UPC、Mini/UPC、SMA/UPC、MTRJ/UPC |
|
| FC/APC、SC/APC、LC/APC、ST/APC、MU/APC、Mini/APC、SMA/APC、MTRJ/APC 1= single fiber、 2= double fiber、4=4 fiber、6=6 fiber、or specified |
|

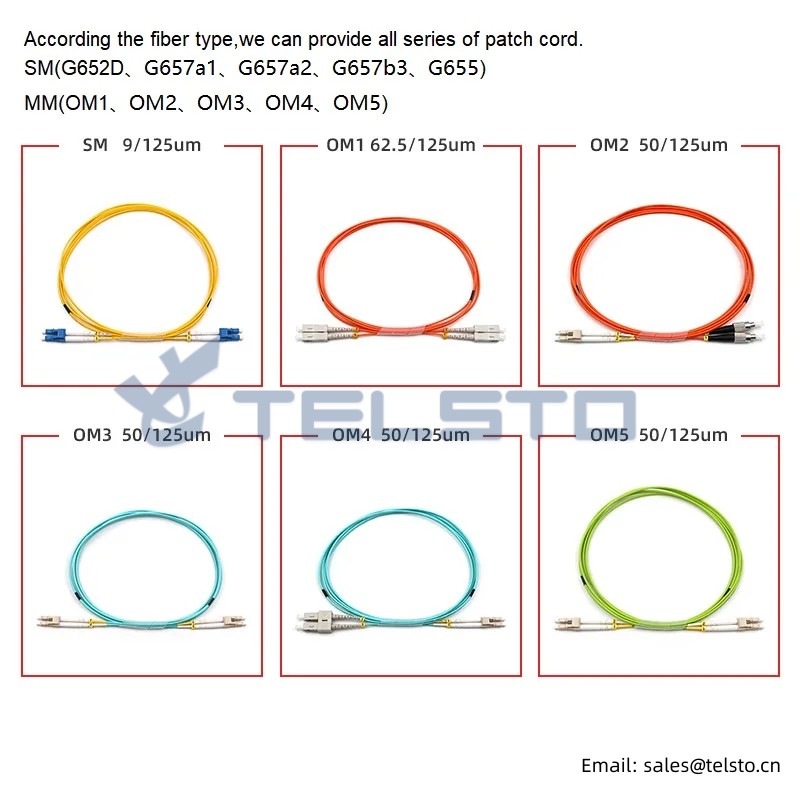

| Optical fiber type | G652D,G657A1,G657A2,OS2,OM1,OM2,OM3,OM4,OM5,or specified |
| Fiber diameter | Φ9/125um、Φ50/125um、Φ62.5/125m |
| Cable outer diameter | Φ0.9mm、Φ2.0mm、Φ3.0mm、or specified |
| Cable material | PVC、LSZH、OFNR、OFNP |
| Thepigtailr type | FC/UPC、SC/UPC、LC/UPC、ST/UPC、MU/UPC、Mini/UPC、SMA/UPC、MTRJ/UPC |
| FC/APC、SC/APC、LC/APC、ST/APC、MU/APC、Mini/APC、SMA/APC、MTRJ/APC |
Application
1. Access Network
2. Telecom/CATV
3. Systems FTTX
