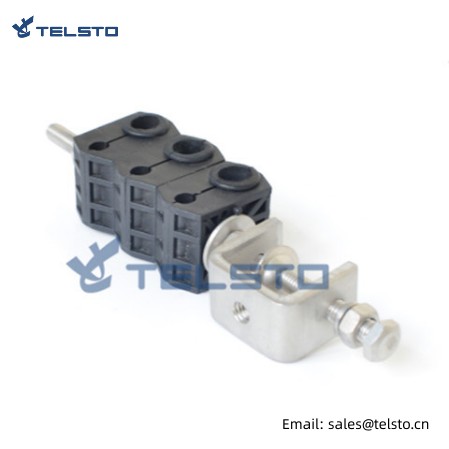

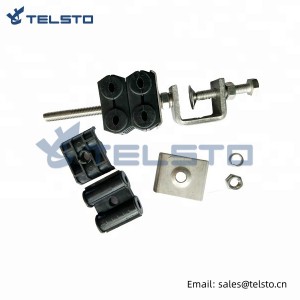

Feeder clamps 3 power cable + 3 fiber cable
Telsto insulation tapes use soft polyvinyl chloride(PVC) film as the backing material, coated with solvent pressure sensitive adhesive, which is applied for telecom insulation, electric wire, cable winding, auto mobile circuit, electrical engineering, household electric, motor, capacitor, regulators, etc.
Feeder clamps 3 power cable + 3 fiber cable are widely used in site installation to fix RF coaxial feeder cables onto base towers (BTS). Telsto feeder clamps are designed for different BTS site installation and kinds of antenna system. The material of these products is high standard stainless steel and high quality plastics.
*Various stainless steel feeder clamps are applicable for fixing feeders.
*Made of high quality anti-acid steel.
*Modified plastics and non-rusting.
| Clamp type | Description | Cable Type | Power (hybrid) cable and fiber cable |
| Size | OD 10-14mm DC power cableOD 6.8mm fiber cable | Number of Cables | 3 power cable + 3 fiber cable |
| Operation Temp | -50 °C ~ 85 °C | UV Resistance | ≥1000 hours |
| Compatible Max Diameter | 10-14mm | Compatible Min Diameter | 6.8mm |
| Twin Plastic Clamps Material | Fiberglass reinforced PP,Black | Metal Material | Stainless steel 304 or hot galvanized |
| Mounting On | Steel wire cable tray | Max Stack Height | 3 |
| Vibration Survival | ≥4 hours at resonant frequency | Environmental Strength Cap | Double cable weight |
Good anti-corrosion performance.
High strength
Wear resistant
Durable
Easy installation
This Fiber Optic Cable Clamp is widely used for :
Telecom cable
Fiber cable
Coaxial cable
Feeder cable
Hybrid cable
Corrugated cable
Smooth cable
Braid cable
