Hybrid Combiner 4×4


  • Place of Origin: China (Mainland)
  • Brand Name: Telsto
  • Model Number: TEL-HC4X4
  • Shipment Method: Sea way, air way, DHL, UPS, FedEx, etc.
  • Description

    Specifications

    Product Support

    Features
    ◆ Wide Frequency Band 698-4000MHz
    ◆ 2G/3G/4G/LTE/5G Coverage
    ◆ Low Passive Inter-modulation
    ◆ Low VSWR & Insertion Loss
    ◆ High Isolation, Indoor & Outdoor, IP65
    ◆ Widely used for In-building Solutions

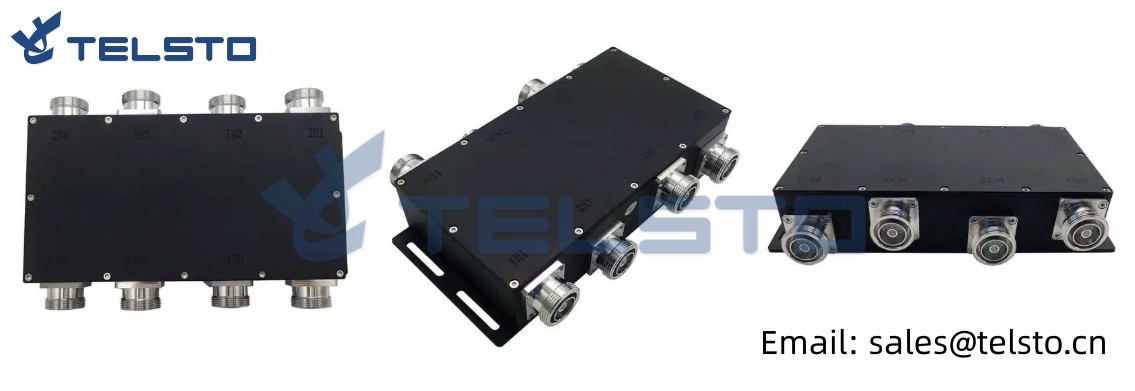

    Hybrid Combiner 4x4 (1)
    Electrical Characteristics
    Characteristics Impedance 50 Ohm
    Frequency Range 790-2690 MHz
    Max Power Capacity 200w
    Isolation ≥20dB
    Insertion Loss             ≤7.0
    VSWR                    ≤1.25
    IMD3,  dBc@+43DbMX2 ≤-155
    Connector Type DIN-Female
    Quantity of Connectors 8
    Operating Temperature -30-+55℃
    Applications IP65

  • Previous:
  • Next:

  • Installation Instructions of N or 7 / 16 or 4310 1 / 2″ super flexible cable

    Structure of connector: ( Fig1 )
    A. front nut
    B. back nut
    C. gasket

    Installation Instructions001

    Stripping dimensions is as shown by diagram ( Fig2 ), attention should be paid while stripping:
    1. The end surface of inner conductor should be chamfered.
    2. Remove impurities such as copper scale and burr on the end surface of the cable.

    Installation Instructions002

    Assembling the sealing part: Screw the sealing part in  along the outer conductor of the cable as shown by the diagram ( Fig3).

    Installation Instructions003

    Assembling the back nut  (Fig3).

    Installation Instructions004

    Combine the front and back nut by screwing as shown by diagram ( Figs( 5)
    1. Before screwing, smear a layer of lubricating grease on the o-ring.
    2. Keep the back nut and the cable motionless, Screw on main shell body on back shell body. Screw down main shell body of back shell body using monkey wrench. Assembling is finished.

    Installation Instructions005
