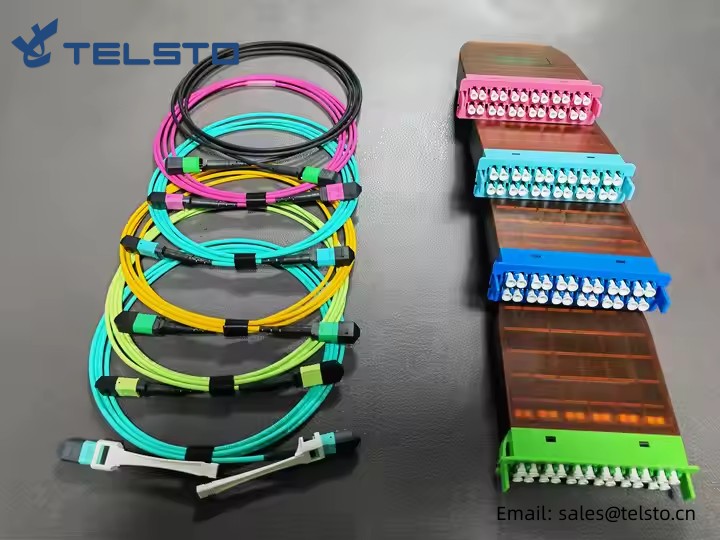

MPO MTP female Male SM OM3 OM4 cable fiber optic trunk cable

Product Name: SM/MM Fiber Optical MPO/MTP Male/Female Connector: 3.0mm Mini Cable

Use: FTTH (Fiber to the Home)

Network: 4G

Cable Diameter: 3.0mm

Insertion Loss: ≤0.5 dB

Connector Type: MPO

Return Loss: Multi-Mode (MM) >20dB, Single-Mode (SM) >60dB

Number of Fibers: 8, 12, 24

Fiber Type: SM (Single-Mode) / MM (Multi-Mode)

Fiber Count: 8/12/24

Multi-Mode Fiber: OM2/OM3/OM4/OM5

Single-Mode Fiber: G652D

Place of Origin: Shanghai, China (Mainland)

Brand Name: Telsto

Send email to us

Description

FTTA IP67 IDC/MPO-IDC /MPO 12cores Patch Cord

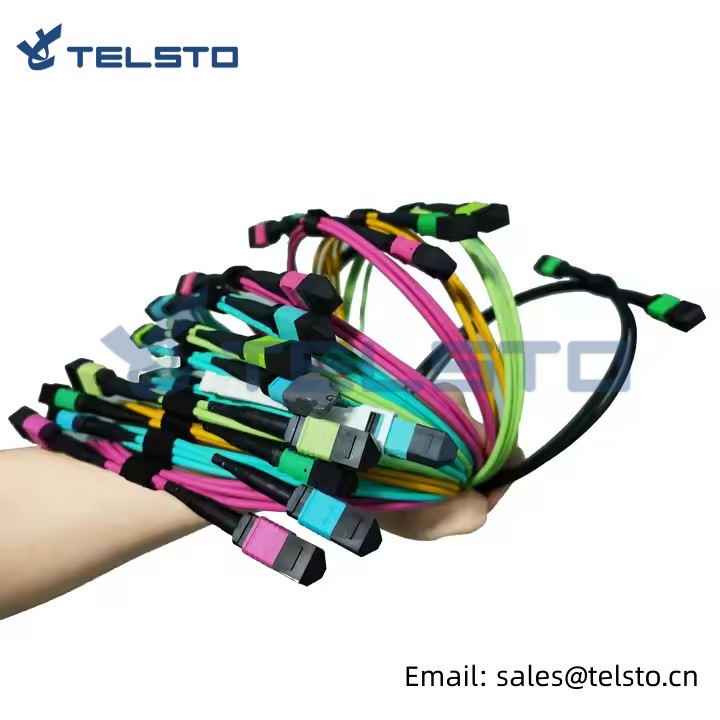

MPO MTP female Male SM OM3 OM4 cable fiber optic trunk cable主图

The MPO/MTP connectors are available in both single-mode (SM) and multi-mode (MM) configurations, with fiber counts of 8, 12, or 24. The single-mode fiber used is G652D, while the multi-mode fibers available are OM2, OM3, OM4, and OM5.

MPO MTP female Male SM OM3 OM4 cable fiber optic trunk cable

Feature

1. IEC61754-7 Compliant;Telcordia GR-1435-CORE compliant

2. Push -Pull locking type

3. Ferrules are available for SM Standard, SM Low Loss; MM Standard, MM Low Loss

4. Cable are available for Jacket ribbon, Bare ribbon, Round mini Cable

5. High Return Loss; Low Insertion Loss

6. High precision guide pins for exact alignment

Application

● FTTH installations

● 4G network infrastructure

● Data centers

● Telecommunications networks

● Enterprise networks

Why Choose Telsto

● High-quality materials and craftsmanship

● Rigorous testing and certification

● Competitive pricing

● Excellent customer service and support

MPO/MTP	SM Standard	SM Low loss	MM Standard	MM Low loss
Insertion Loss（Typical）	0.35dB	0.20dB	0.35dB	0.20dB
Insertion Loss（Max）	0.75dB	0.35dB	0.65dB	0.35dB
Return Loss	APC≧50dB/ PC≧40dB		≧25
Durability	≦0.3dB(change 500matings）		≦0.3dB(change1000 matings）
Exchangeability	≦0.3dB( Connector Randomly）
Tensile Strength	≦0.3dB（Max 66N）
Vibration	≦0.3dB（10~55Hz）
Operation Temperature	-40℃ ~ +75℃
