Selecting the right PVC Coated Cable Tie is critical for telecom and industrial sectors. These environments demand robust solutions that withstand extreme temperatures, mechanical stress, and chemical exposure. Telsto’s Metal Cable Tie with Coating offers premium durability, advanced corrosion resistance, and reliable performance in challenging conditions.
Demands in Telecom and Industrial Environments
Environmental and Mechanical Challenges
Telecom and industrial environments present unique challenges for cable management. Equipment often operates outdoors or in exposed locations. These areas experience extreme temperatures, high humidity, and direct sunlight. Mechanical stress from vibration, movement, or accidental impact is common. Chemical exposure from oils, solvents, or corrosive agents can degrade standard materials.

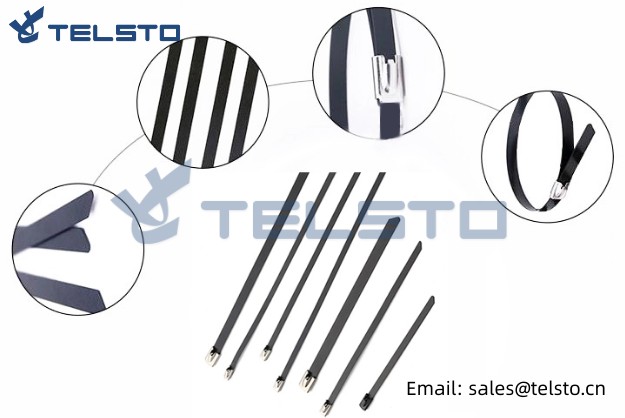

Telsto’s Metal Cable Tie with Coating addresses these challenges with advanced engineering. The use of premium stainless steel grades—201SS, 304SS, and 316SS—ensures high tensile strength and resistance to rust. The working temperature range from -80°C to 500°C allows reliable performance in both arctic and high-heat conditions. The non-toxic, halogen-free polyester coating adds a protective barrier. This coating prevents corrosion between dissimilar metals and shields against UV rays, fire, and aggressive chemicals. Color options support easy identification and organization, which is essential in complex installations.
Compliance and Safety Needs
Strict safety and compliance standards govern telecom and industrial installations. Cable ties must meet international and regional regulations to ensure reliability and worker safety.
• Compliance with IEC 62275 and UL 62275 demonstrates adherence to global performance standards.
• RoHS and REACH regulations limit hazardous substances, supporting environmental responsibility.
• Certification requires rigorous testing for tensile strength, flame resistance, UV stability, and material composition.
• Organizations such as UL, NEMA, IEC, and ISO oversee these standards.
• Always verify UL file numbers and match temperature ratings to the application.
• Outdoor installations require cable ties rated for UV and weather resistance.
Telsto’s Metal Cable Tie with Coating meets these requirements, providing peace of mind for critical infrastructure projects.
Selection Criteria for PVC Coated Cable Tie
Material and Coating Benefits
Choosing the right material is essential for ensuring performance and longevity in telecom and industrial environments. Stainless steel grades such as 201SS, 304SS, and 316SS offer different levels of strength and resistance. The table below summarizes their suitability for various environmental conditions:
| Stainless Steel Grade | Suitable Environment |
|---|---|
| 201 | Indoor environments |
| 304 | Outdoor environments |
| 316 | Extra corrosive environments |
The material composition of a pvc coated cable tie directly affects its durability and strength. Telsto’s Metal Cable Tie with Coating uses premium stainless steel, which provides robust mechanical properties. The polyester coating, which is halogen-free and non-toxic, adds an extra layer of protection. This coating prevents corrosion between dissimilar materials and shields the tie from environmental factors such as UV rays and fire. The combination of core material and coating ensures reliable performance in harsh conditions.
Tip: Select the stainless steel grade based on the specific environmental conditions and exposure to corrosive agents.
The table below highlights how the coating enhances durability:
| Feature | Description |
|---|---|
| Core Material | Stainless steel provides robustness and strength. |
| Coating | PVC coating adds an extra layer of protection against corrosion and chemicals. |
| Durability | Ensures reliable performance in harsh weather and industrial settings. |

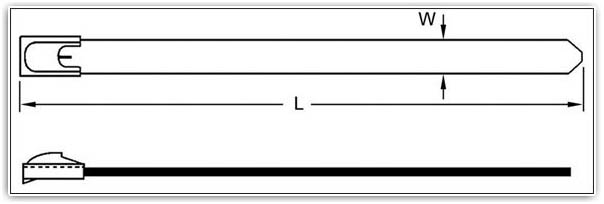

Cable Tie Strength and Dimensions
Cable tie strength is a critical factor in industrial and telecom applications. The strength depends on both the material and the dimensions of the tie. Wider and thicker ties can support heavier loads, while the length must fit the cable bundle securely. The table below compares strength between coated and uncoated types:
| Feature | Coated Stainless Steel Cable Ties | Uncoated Stainless Steel Cable Ties |
|---|---|---|
| Strength | High, slightly reduced by coating | Maximum tensile strength |
Selecting the right pvc coated cable tie involves evaluating the required strength for the application. For example, in telecommunications, 600 mm ties with a width of 7.6 mm are used for large bundles of fiber-optic cables. In the automotive industry, heavy-duty 600 mm ties secure cable harnesses in trucks, providing stability under vibration. Always match the tie’s strength and dimensions to the load-bearing requirements.
Environmental and Chemical Resistance
Industrial and telecom environments expose cable ties to a variety of environmental factors. PVC coated cable ties are resistant to oils, solvents, and acids, making them suitable for demanding applications. They withstand exposure to moisture and corrosive agents, ensuring durability even in saltwater or chemical processing settings.
PVC coated cable ties are resistant to:
• Oils
• Solvents
• Acids
The maximum operating temperature for pvc coated cable tie products ranges from +85°C to +150°C, depending on the coating type. This wide temperature range allows use in both hot and cold environments. The combination of material and coating provides protection against environmental conditions, including UV rays and fire.
Standards and Certifications
Compliance with international standards is vital for safety and reliability. PVC coated cable ties must meet requirements such as IEC 62275, UL 62275, and CSA C22.2 No. 62275. These standards ensure the cable ties are suitable for cable management systems in electrical installations.
| Standard | Description |
|---|---|
| IEC 62275 | International standard for cable management systems. |
| UL 62275 | Standard for cable ties in electrical installations, based on IEC 62275. |
| CSA C22.2 No. 62275 | Canadian standard for cable management systems, aligned with IEC 62275. |
RoHS compliance is also important. It ensures that the materials do not contain hazardous substances, limits the use of harmful materials, and promotes environmental safety.
| Impact of RoHS Compliance on PVC Coated Cable Ties |
|---|
| Ensures materials do not contain hazardous substances |
| Limits use of harmful materials |
| Promotes environmental safety |
Telsto’s Metal Cable Tie with Coating meets these certifications and offers customizable options for packaging and color coding. This allows users to select the right types for their specific needs and maintain compliance with industry regulations.
Types of Cable Ties and Comparisons
PVC Coated vs. Uncoated Stainless Steel
PVC coated stainless steel cable ties offer enhanced protection in harsh environments. The coating prevents galvanic corrosion when securing cables to dissimilar metals. It also adds a layer of insulation, which reduces the risk of abrasion and electrical shorts. Uncoated stainless steel cable ties provide maximum tensile strength and are suitable for indoor or less aggressive settings. Both types of cable ties deliver high durability, but the coated version excels in outdoor, marine, and chemical-rich environments.
| Feature | PVC Coated Stainless Steel | Uncoated Stainless Steel |
|---|---|---|
| Corrosion Resistance | Excellent | Very Good |
| Tensile Strength | High | Maximum |
| Electrical Insulation | Yes | No |
| Application | Outdoor/Industrial | Indoor/General |
PVC Coated vs. Nylon and Plastic Ties
Nylon and plastic ties are common in light-duty applications. They are easy to install and cost-effective. However, they have lower tensile strength and degrade faster under UV exposure or chemical contact. PVC coated stainless steel cable ties outperform nylon and plastic in demanding conditions. They maintain tensile strength in extreme temperatures and resist fire, chemicals, and UV rays. This makes them ideal for telecom and industrial use.
Note: For environments with high vibration or exposure to oils and acids, PVC coated stainless steel cable ties provide superior reliability.
Heavy-Duty Cable Ties for Industrial Use
Heavy-duty cable ties are essential for securing large bundles and heavy components. These types of cable ties can withstand tensile strength from 120 pounds to over 250 pounds. They are engineered for extreme tension and harsh conditions. Heavy-duty cable ties made from stainless steel offer unmatched durability and long service life. Telsto’s Metal Cable Tie with Coating stands out as a leading choice for heavy-duty applications in telecom, petrochemical, and power industries.
Typical features of heavy-duty cable ties:
• High tensile strength for large loads
• Resistance to chemicals, UV, and fire
• Reliable performance in extreme temperatures
Selecting the right types of cable ties ensures safety and efficiency in critical installations.
Selecting the Right Cable Tie: Step-by-Step Guide
Assessing Application Requirements
Selecting the right cable tie begins with a clear understanding of your project’s requirements. Start by evaluating load requirements. Determine the weight and stress the tie must handle. For heavy-duty needs, stainless steel ties offer maximum strength. Consider the environment. Exposure to UV, chemicals, or extreme temperatures will influence your choice. Review the bundle size to ensure the tie fits securely. For temporary installations, reusable cable ties provide flexibility and cost savings. Reusability requirements are important in projects that need frequent adjustments.
| Performance Rating Type | Description |
|---|---|
| Loop Tensile Strength | Indicates the load-bearing capacity under specific conditions. |
| Thermal Performance | Shows the operating temperature range. |
| Fire Effects | Rates resistance to flammability and smoke. |
| Environmental Ratings | Measures performance in various conditions. |
Matching Specifications to Environment
Match cable tie specifications to the environment for reliable performance. Use the table below to guide your selection:
| Environment Condition | Recommended Tie Type |
|---|---|
| Winter cold & freeze–thaw cycles | Metal or standard nylon (–40°C) |
| Sun heat or warm machinery | Heat-stabilized nylon or stainless |
| Outdoor UV & moisture | UV-resistant or stainless steel |
Telsto’s color coding options help organize installations. Custom packaging supports efficient storage and handling.
Installation and Maintenance Tips
To properly use cable ties, follow these best practices:
• Use the correct size for the bundle.
• Secure ties tightly, but avoid overtightening.
• Trim excess length to prevent sharp edges.
• Inspect regularly for wear, especially in demanding environments.
• Use installation tools for consistent results.
• Store ties in cool, dry, and dark places to extend service life.
Reusable cable ties are ideal for temporary or adjustable setups. The common use of cable ties includes bundling cables, securing pipes, and organizing equipment in telecom and industrial settings.
Tip: Always match the minimum tensile rating to the bundle weight with a safety margin.
Quick Checklist for Buyers
Key Factors Before Purchase
A buyer’s checklist streamlines the selection process for cable ties in telecom and industrial applications. It helps balance performance, compliance, and cost. Buyers should systematically evaluate options to prevent failures under load and ensure durability. Research into materials and tensile strength provides valuable insights into the performance of cable ties. User reviews and product ratings offer practical feedback for real-world applications. Transparency in manufacturing is crucial for understanding how cable ties perform under stress. The diversity of the market makes a systematic approach essential.
• Assess the environment where cable ties will be used. Consider exposure to chemicals, UV, and temperature extremes.
• Select the correct material for cable ties. Stainless steel is ideal for industrial applications, while coated cable ties offer extra protection.
• Choose cable ties with proper tensile strength for the intended load. Heavy-duty cable ties are best for large bundles and demanding applications.
• Avoid over-tightening cable ties. Use installation tools to ensure consistent results.
• Perform regular inspections of cable ties in critical applications. Look for signs of wear, abrasion, or vibration.
• Store cable ties properly to maintain their performance. Keep them in cool, dry, and dark places.
• Protect cable ties against abrasion and vibration in industrial environments.
• Prioritize quality over lowest price. Durable cable ties maintain color coding and resist failure.
| Checklist Item | Description |
|---|---|
| Material Selection | Ensure the correct materials are chosen for the specific environment. |
| Installation Practices | Follow proper installation techniques to avoid issues like over-tightening. |
| Environmental Considerations | Account for environmental factors that could affect cable tie performance. |
Tip: Buyers should always match cable ties to the specific requirements of their applications. This reduces the risk of failure and ensures reliable performance in telecom and industrial settings.
Selecting PVC coated cable ties requires careful evaluation. Key criteria include material, strength, size, and temperature range:
| Criteria | Description |
|---|---|
| Material | Strong enough for the application and compatible with cable material to prevent corrosion or damage. |
| Mechanical Strength | Minimum loop tensile strength is crucial for applications that may strain the cable tie bundle. |
| Maximum Diameter | Refers to the largest bundle diameter that the cable ties can support. |
| Length and Width | Should accommodate the type and amount of cable, allowing for a secure loop and lock. |
| Temperature Range | Specifies the required ambient operating temperature range for the cable ties. |
Matching these features to your project ensures safety and efficiency. Telsto’s Metal Cable Tie with Coating delivers:
• Durability in harsh weather, UV, and chemical exposure
• Heavy-duty performance for demanding loads
• Versatility for both indoor and outdoor use
Choose Telsto for reliable cable management in critical environments.
