Selecting the right telecom feeder cable is critical for strong signal transmission in base station networks. High-quality feeder cable improves data throughput and uptime, which shows the importance of feeder cable in telecommunications. Telsto offers reliable cable solutions. The table below shows how cable choice affects network performance:
| Cable Type | Advantages | Impact on Performance Metrics |
|---|---|---|
| Copper Cables | Cost-effective, compatible, suitable for short distances | Limited bandwidth, higher latency |
| Fiber Optic Cables | Faster speeds, greater bandwidth, longer distances | Enhanced throughput, improved uptime |
Choosing the Right Telecom Feeder Cable
Key Specifications for Signal Quality
Selecting the right feeder cable is essential for maintaining strong signal quality in any network. The technical specifications of a feeder cable directly affect the performance of cellular networks and other communications systems. Professionals must evaluate several critical parameters before making a decision.
| Specification | Description | Impact on Signal Quality |
|---|---|---|
| Passive Intermodulation (PIM) | Measures unwanted harmonic frequencies generated by non-linearities in cables and connectors. | Affects call quality, data throughput, and overall network capacity. |
| Voltage Standing Wave Ratio (VSWR) | Indicates efficiency of RF energy transfer through a transmission line. | Poor VSWR leads to wasted power and reduced network efficiency. |
| Connector Selection | Ensures long-term reliability of the network. | Critical for maintaining optimal performance over time. |
Low insertion loss is another key factor. It determines how much signal power is lost as it travels through the feeder cable. High-grade materials, such as those used in Telsto’s LMR400 and RG213, help minimize this loss. The table below compares the insertion loss values of common types of feeder cable at different frequencies:
| Frequency | RG213 Loss (Attenuation dB/100ft) | LMR400 Loss (Attenuation dB/100ft) |
|---|---|---|
| 100 MHz | 2.2 | 1.2 |
| 400 MHz | 4.8 | 2.5 |
| 1000 MHz | 8.2 | 4.1 |
Industry standards and certifications also play a vital role. Feeder cables should comply with TIA/EIA-568, National Electrical Code (NEC), and UL Standards. These certifications guarantee safety, fire resistance, and reliable performance in all installation environments.
| Standard/Certification | Description |
|---|---|
| TIA/EIA-568 | Commercial Building Telecommunications Cabling Standards, covering installation, performance, and testing methods. |
| National Electrical Code (NEC) | Legally mandated in most U.S. jurisdictions, focusing on fire resistance and low-smoke properties. |
| UL Standards | Ensures fire safety and proper cable installation. |
Environmental factors must not be overlooked. Feeder cables face challenges such as temperature changes, humidity, and soil pressure, especially in underground or outdoor installations. High temperatures can degrade performance and shorten the lifespan of the cable. Telsto’s feeder cables are engineered to withstand these harsh conditions, ensuring long-term reliability for all types of networks.
Selecting Feeder Cable Types for Telecommunications
The choice of feeder cable type depends on the specific requirements of the telecommunications network. Each type offers unique advantages for different scenarios, from high-capacity data transfer in urban areas to long-distance coverage in rural regions.
| Scenario | Feeder Cable Type | Description |
|---|---|---|
| Urban FTTH Rollout | GYTS duct cable | Used for connecting high-density residential areas to a fiber backbone. |
| Rural Coverage Expansion | ADSS Double Sheath Cable | Ideal for long-span aerial deployments in areas with minimal infrastructure. |
| 4G/5G FTTA Backhaul | FTTA Base Station Fiber Optic Cable GYFJH | Designed for reliable connectivity from mobile base stations to the optical distribution network. |

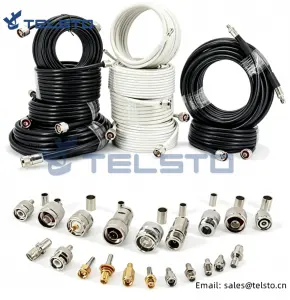

Telsto offers a wide range of feeder cables, including LMR300, LMR400, RG58, and RG213. These cables support various applications such as cellular networks, satellite communications, and broadcasting. For example, LMR400 is suitable for high-frequency, low-loss requirements, while RG213 is often used in environments where flexibility and durability are needed.
The following table highlights the comparative features of different types of feeder cable used in telecommunications:
| Category | Fiber Optic Cable | Twisted Pair Cable | Coaxial Cable |
|---|---|---|---|
| Transmission Medium | Light through glass or plastic core | Electrical signals through copper pairs | Electrical signals through single copper conductor |
| Bandwidth | Very high (up to 100 Gbps+) | Moderate (up to 10 Gbps, Cat7) | Low–Moderate (hundreds of Mbps) |
| Distance | Several km to 100+ km | Up to 100 m | Up to a few km (depends on type) |
| Interference | Immune to EMI/RFI | Susceptible, STP improves shielding | Good shielding against EMI |
| Installation | Fragile, requires skilled technicians | Easy to install, flexible | Bulky, harder to install |
| Cost | High (cable + optical devices) | Lowest, widely available | Medium (higher than twisted pair) |
| Common Use | Data centers, FTTH, backbone networks | LAN, office wiring, Ethernet | TV, broadband, CCTV, satellite |
Note: Fiber optic installation is ideal for high-capacity data transfer and long-distance backbone networks. Coaxial cable remains a strong choice for satellite communications and certain types of feeder cable installations.
Improper selection of feeder cable can lead to network faults, reduced coverage, and increased troubleshooting. Professionals should always match the cable type to the network’s technical and environmental demands. Proper installation techniques and ongoing fiber optic cable management further enhance network reliability.
Installation and Maintenance of Feeder Cable
Proper installation and maintenance of feeder cable are essential for reliable signal transmission in telecommunications networks. High-quality installation techniques and regular preventative maintenance help maintain optimal performance in cellular networks, broadcasting, and other communications systems. Telsto’s commitment to rigorous testing and quality control ensures that each feeder cable meets industry standards for durability and reliability.
Best Practices for Installation
Effective installation of feeder cable minimizes signal loss and interference. Technicians should follow industry best practices to ensure the integrity of the network. The following guidelines support successful installation:
• Avoid sharp bends or kinks in the cable to prevent damage and signal degradation.
• Use cable clips or fasteners to secure the cable and maintain a smooth routing path.
• Select the correct cable length and gauge to reduce signal attenuation.
• Verify that all connectors are tightly secured and properly aligned.
• Implement proper grounding to prevent interference and maintain signal quality.
• Consider using boosters for longer cable runs to maintain signal strength.
Telsto feeder cables undergo rigorous quality control checks by both in-house QC departments and third-party inspectors before shipment. This process ensures that each cable delivers consistent performance in a wide range of applications of feeder cable, including high-capacity data transfer and satellite communications.
Common mistakes during installation can lead to long-term network issues. Improper cable bending, poor splice quality, skipping proper duct sealing, and incorrect pulling tension are frequent causes of signal loss. These errors can result in increased resistance, water ingress, and thermal hotspots, which may remain undetected until they cause significant performance problems. Careful attention to installation techniques helps prevent these issues and supports the longevity of the feeder cable.
Tip: Always follow manufacturer guidelines for installation and use the recommended tools to avoid damaging the cable or connectors.
Ensuring Quality Connections
High-quality connections between feeder cables and base station equipment are critical for maintaining strong signal transmission. Compatibility between connectors and cables is essential. The connector must match the physical dimensions and electrical characteristics of the feeder cable to ensure a secure, low-resistance connection. Mismatched connectors can cause poor contact and increased signal attenuation.
Durability is another key factor. Connectors exposed to harsh environments or mechanical stress must use robust materials and designs to withstand moisture, vibration, and temperature changes. Performance ratings, such as voltage and current-carrying capacity, should match the operational demands of the network. Connectors with a low Voltage Standing Wave Ratio (VSWR), ideally less than 1.1:1, help minimize signal reflections and maintain high-quality connections in cellular and fiber optic cable systems.
Different connector types suit various applications of feeder cable. N-type connectors provide excellent weatherproofing for outdoor use. DIN connectors are ideal for professional broadcasting studios. SMA connectors are designed for high-frequency applications, while BNC connectors offer a cost-effective solution for communications and broadcasting. Selecting the right connector type and ensuring proper installation techniques are vital for long-term reliability in all types of feeder cable installations.
Routine Maintenance for Network Reliability
Routine preventative maintenance is essential for sustaining the performance of feeder cable in telecommunications networks. Regular inspections help identify potential issues before they lead to network faults or signal degradation. Key maintenance procedures include:
• Visual inspections to check for physical damage, environmental stress, and corrosion at connectors.
• Regular testing of electrical properties using specialized equipment, such as time-domain reflectometry (TDR), to detect internal faults or impedance mismatches.
• Maintenance of weatherproofing to prevent moisture ingress, which can compromise signal quality.
• Inspection of grounding and bonding systems to ensure integrity and security.
Regular inspection is crucial for preventing faults in the antenna feeder system. Technicians should check for signs of water infiltration, corrosion, and physical damage. Scheduled maintenance supports ongoing reliability and reduces the need for troubleshooting and repair. Proper fiber optic cable management and attention to coaxial cable installations further enhance network stability.
Telsto’s feeder cables are engineered for durability and undergo comprehensive testing to ensure they meet the demands of modern telecommunications. By following best practices for installation and maintenance of feeder cable, network operators can achieve consistent signal quality and extend the lifespan of their infrastructure.
Advanced Solutions for Network Performance
Low-Loss Cables and Modern Materials
Modern telecom feeder cable technology relies on advanced materials to achieve superior signal performance. Manufacturers use copper alloys and advanced polymers in feeder cable construction. These materials provide better thermal stability and reduce signal losses, which is essential for high-frequency transmission in cellular networks and satellite communications. Advanced polymers also protect the cable from harsh environments, supporting long-term reliability in both indoor and outdoor installation. The use of smart materials in feeder cable enables real-time monitoring and maintenance, which helps prevent unexpected network faults and reduces the need for troubleshooting and repair. Telsto’s feeder cable solutions use these modern materials to ensure consistent signal quality across all types of feeder cable, including coaxial cable and fiber optic cable. This approach supports robust communications and efficient fiber optic installation in complex networks.
Signal Enhancement Tools in Telecommunications
Optimizing network performance requires more than just high-quality feeder cable. Signal enhancement tools such as tappers, combiners, and repeaters play a vital role in maintaining strong signal transmission. Inductive combiners use transformers to improve signal isolation and reduce loss, making them effective for high-frequency applications. Active combiners use amplifiers to boost signal strength, which is ideal for long-distance network coverage. Regular maintenance checks on these devices help identify signal issues early and support reliable network operation. Signal boosters and RF cellular repeaters capture weak signals from cell towers, amplify them, and rebroadcast them within the network. This process improves signal coverage and quality, especially in challenging environments. Distributed antenna systems (DAS) use a combination of fiber and coaxial cable to distribute signals efficiently. Proper fiber optic cable management and careful installation of these tools ensure optimal performance in both cellular and fiber networks. These strategies minimize signal loss, reduce troubleshooting, and support seamless communications across all network types.
Telecom professionals should regularly assess their telecom feeder cable infrastructure by reviewing homes served, fiber routing, and maintenance access. Upgrading to advanced solutions improves signal transmission and future-proofs telecommunications networks. Evaluate your network, consider Telsto’s reliable options, and adopt new technologies to ensure consistent performance as demands grow.
FAQ
What is the main role of feeder cable in telecommunications?
Feeder cable carries the signal between base station equipment and antennas, ensuring reliable communication for both voice and data services.
How often should feeder cables in networks be inspected?
Technicians should inspect feeder cables at least once a year to maintain performance and prevent unexpected failures in networks.
Can Telsto feeder cables be used for outdoor installations?
Yes, Telsto feeder cables are designed to withstand harsh environments, making them suitable for both indoor and outdoor telecommunications applications.
