Gel Seal Closure For Coax In-Line Connection Of 1/2″ To 1-5/8″


  • Item No: TEL-GEL-1/2J-1-5/8F
  • Dimension: 364 x 105 x 77 mm
  • Materials: PC+ABS, built-in soft silicone gel
  • Function: weatherproofing kit
  • Application: Cellular cell tower and site infrastructures.
  • Inlet: 1/2" coax jumper cable (13-17mm)
  • Outlet: 1-5/8" coax feeder cable (49.5-52mm)
  • Interior connector types: 716-DIN type, N type, 4.3-10 type.
  • Description

    Gel seal closure is a plastic weatherproofing enclosure which is designed to quickly seal the coax connector between 1/2" jumper cable and 1-5/8" feeder cable.

    It is usually used on wireless cell tower cabling system.

    It is not a simple plastic enclosure. The innovative built-in soft gel make it IP68 waterproof rate, and ensure a perfect sealing for outdoor coax connectors.

    Specs:

    -- Quick install, just take seconds.

    -- Easy install, no tape, no mastic and no tool needed.

    -- Simple install, insure an uniform and good connector-sealing jobs.

    -- Removable and reusable.

    -- ROHS compliant

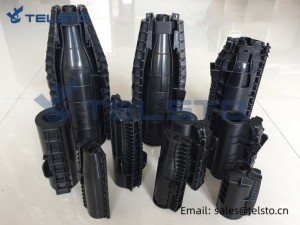

    Weather shield 12-158 (3)
    Gel Seal Closure
    Model TEL-GEL-1/2J-1-5/8F
    Function Gel Seal Closure for 1/2"jumper to 1-5/8"feeder
    Material PC+SEBS
    Size 364 x 105 x 77 mm
    Input 1/2"jumper(13-17mm)
    Output 1-5/8"feeder(35-40mm)
    Net Weight 300g
    Life/duration More than 10 years
    Corrosion and ultraviolet resistance H2S,passed ultraviolet test
    Ice-snow resistance up to 100mm,no water leakage, no shape change
    Waterproof level IP68
    Fireproof level HB
    Rainstorm resistance 100E 150mm/h

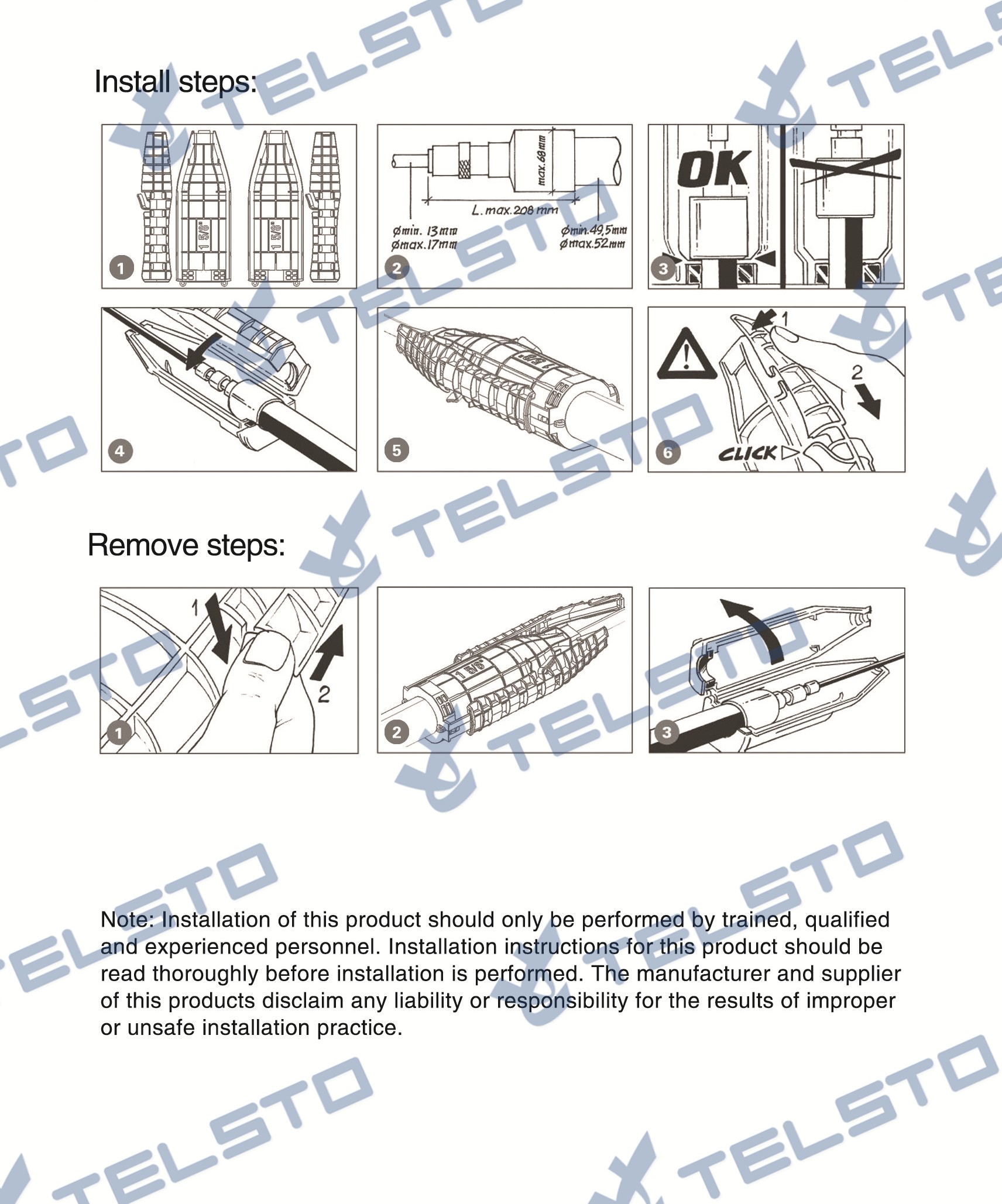

    Weather shield 12-158 (1)
