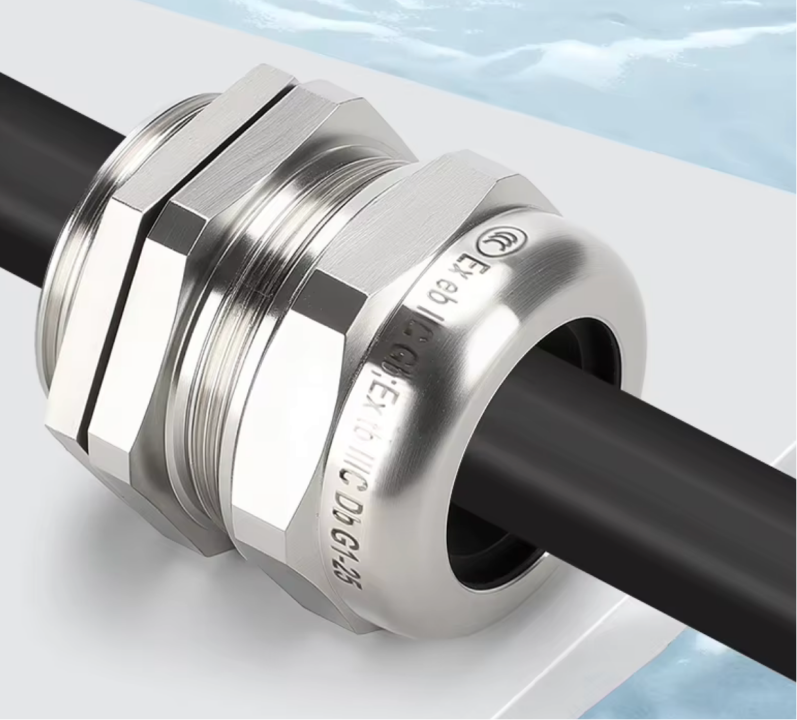

304 Stainless Steel Cable Gland IP68 Waterproof Metal and Brass for Outdoor Use

Stainless Steel Construction: Durable and resistant to corrosion for long-lasting use.

IP68 Waterproofing: Ensures protection against water and dust for reliable performance.

Metric Thread Compatibility: Fits various metric cables and applications.

Explosion-Proof Design: Meets stringent safety standards for hazardous environments.

CE and RoHS Certified: Ensures compliance with international safety and environmental regulations

Send email to us

Description

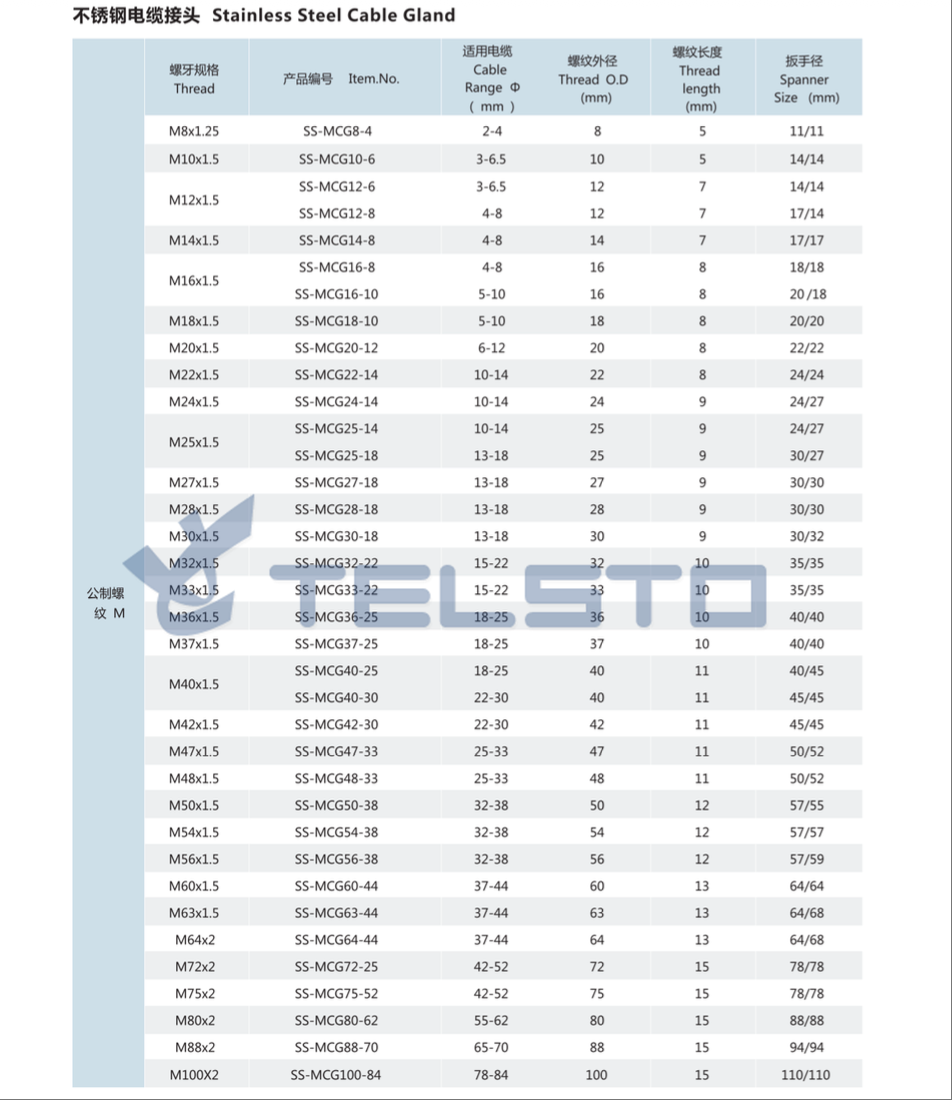

Specification for screw teeth:

metric teeth (Metric), PG teeth, G (PF) teeth, NPT teeth

Material:

304/316 stainless steel

Claw:

Sealing and sealing ring:

NBR

NOTES:

Can be customized high-temperature silicone, acid and alkali resistant fluorine rubber

Approvals:

CE, ROHS

Protection degree:

IP68

Temperature Resistance:

-40°C to 100°C, short time to 120°C

Thread length :

Standard thread type is used for the equipment which has inner thread or for the thin board. Long thread type is used for the thin board. Long thread type is used for the thick board.

Function:

Extremely easy installation, simply insert cable through the assembled gland and tighten gland lock nut until cable is secured. These cable glands are designed to withstand water, dust, salt, acid-base, alcohol, oil and common solvent.

Notes:

Customization is available.
