IP68 Sealing M64 Thread Cable Gland, 304 Stainless Steel Waterproof cable gland
IP68 Sealing M64 Thread Cable Gland, 304 Stainless Steel Waterproof cable gland

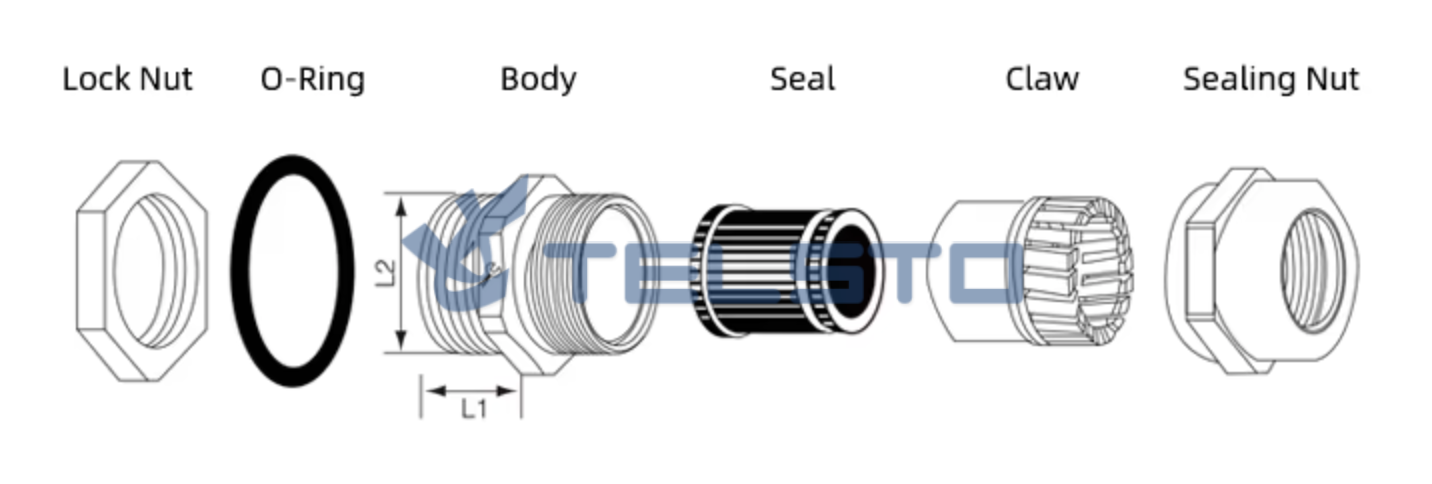

Adopts special claw and rubber component design. lt fits a widerange of cable diameters and delivers excellent pull resistance.Waterproof,dustproof, salt resistant, and resistant to acid, alkalialcohol, grease and common solvents
Static temperature range: -40′C to 100°C,instantaneous heatresistance up to 120°C
| Model | Cable Diameter Range | Thread Length |
| M6 * 1.0 | 2~3 | 6 |
| M8 * 1.0 | 3~4.8 | 6 |
| M10 * 1.0 | 3.5~6.2 | 6 |
| M12 * 1.5 | 3.5~6.2 | 8 |
| M12 * 1.5 | 5~8 | 8 |
| M14 * 1.5 | 5~8 | 8 |
| M16 * 1.5 | 5~8 | 9 |
| M16 * 1.5 | 6~10 | 9 |
| M18 * 1.5 | 6~10 | 9 |
| M20 * 1.5 | 6~10 | 10 |
| M20 * 1.5 | 8~12 | 10 |
| M20 * 1.5 | 10~14 | 10 |
| M22 * 1.5 | 6~10 | 10 |
| M22 * 1.5 | 10~14 | 10 |
| M24 * 1.5 | 10~14 | 12 |
| M24 * 1.5 | 6~10 | 12 |
| M24 * 1.5 | 10~14 | 12 |
| M24 * 1.5 | 13~18 | 12 |
| M24 * 1.5 | 13~18 | 12 |
| M27 * 1.5 | 13~18 | 12 |
| M27 * 2.0 | 13~18 | 12 |
| M30 * 1.5 | 13~18 | 12 |
| M30 * 2.0 | 13~18 | 12 |
| M32 * 1.5 | 18~25 | 12 |
| M33 * 2.0 | 18~25 | 12 |
| M36 * 1.5 | 18~25 | 14 |
| M36 * 2.0 | 18~25 | 14 |
| M40 * 1.5 | 25~32 | 15 |
| M42 * 1.5 | 25~32 | 15 |
| M48 * 1.5 | 25~32 | 15 |
| M50 * 1.5 | 32~39 | 15 |
| M56 * 2.0 | 32~39 | 15 |
| M60 * 2.0 | 36~44 | 15 |
| M63 * 1.5 | 36~44 | 15 |
| M63 * 1.5 | 45~54 | 15 |
| M64 * 2.0 | 45~54 | 15 |
| M68 * 1.5 | 45~54 | 15 |
| M72 * 1.5 | 45~54 | 16 |
| M72 * 2.0 | 45~54 | 16 |
| M75 * 2.0 | 55~66 | 18 |
| M78 * 2.0 | 55~66 | 18 |
| M80 * 2.0 | 55~66 | 18 |
| M88 * 2.0 | 67~77 | 18 |
| M90 * 2.0 | 67~77 | 18 |
FAQs
Q: What are the main application scenarios?
A: Widely applied for cable entry into electrical enclosures, junction boxes, control cabinets and automation equipment. Suitable for industrial workshops, marine‑related facilities, chemical plants and other harsh‑corrosion indoor & outdoor projects.
Q: Where can the cable gland be installed?
A: It mounts onto equipment housing pre‑drilled PG threaded holes. Fasten by thread connection from outside of cabinet/enclosure, easy for on‑site assembly.
Q: What are the advantages of stainless‑steel PG series cable gland?
A: Stainless‑steel material offers outstanding anti‑corrosion performance, high mechanical strength and long service life. Standard PG thread for quick installation, reliable strain relief and dust‑proof & water‑proof sealing performance. Well adapted for corrosive environments where brass cable glands cannot meet service requirements.
Q: Do you support sample orders?
A: Yes, samples are available for technical testing and evaluation before bulk order placement.
