IP68 M25 Stainless Steel Cable Gland, 304 Stainless Steel Cable Connector

High Pull‑Resistant Metal Explosion‑Proof Cable Gland with Rubber Sealing Component, Waterproof, Dustproof & Chemical Resistant

Stainless‑steel PG‑thread cable gland is a reliable cable entry fitting for equipment enclosures. It adopts precision‑machined external PG thread, provides dependable cable sealing and strain‑relief performance. The stainless‑steel body delivers superior corrosion resistance, suitable for harsh indoor and outdoor working environments. Secure cable clamping prevents cable pulling‑out and twisting, maintaining stable IP protection grade for electrical cabinets, junction boxes and machines

Place of Origin:China (Mainland)
Brand Name:Telsto
Shipment Method:Sea way, air way, DHL, UPS, FedEx, etc

Send email to us

Description

IP68 M25 Stainless Steel Cable Gland, 304 Stainless Steel Cable Connector

Adopts special claw and rubber component design. lt fits a widerange of cable diameters and delivers excellent pull resistance.Waterproof,dustproof, salt resistant, and resistant to acid, alkalialcohol, grease and common solvents
Static temperature range: -40′C to 100°C,instantaneous heatresistance up to 120°C

Model	Cable Diameter Range	Thread Length
M6 * 1.0	2~3	6
M8 * 1.0	3~4.8	6
M10 * 1.0	3.5~6.2	6
M12 * 1.5	3.5~6.2	8
M12 * 1.5	5~8	8
M14 * 1.5	5~8	8
M16 * 1.5	5~8	9
M16 * 1.5	6~10	9
M18 * 1.5	6~10	9
M20 * 1.5	6~10	10
M20 * 1.5	8~12	10
M20 * 1.5	10~14	10
M22 * 1.5	6~10	10
M22 * 1.5	10~14	10
M24 * 1.5	10~14	12
M24 * 1.5	6~10	12
M24 * 1.5	10~14	12
M24 * 1.5	13~18	12
M24 * 1.5	13~18	12
M27 * 1.5	13~18	12
M27 * 2.0	13~18	12
M30 * 1.5	13~18	12
M30 * 2.0	13~18	12
M32 * 1.5	18~25	12
M33 * 2.0	18~25	12
M36 * 1.5	18~25	14
M36 * 2.0	18~25	14
M40 * 1.5	25~32	15
M42 * 1.5	25~32	15
M48 * 1.5	25~32	15
M50 * 1.5	32~39	15
M56 * 2.0	32~39	15
M60 * 2.0	36~44	15
M63 * 1.5	36~44	15
M63 * 1.5	45~54	15
M64 * 2.0	45~54	15
M68 * 1.5	45~54	15
M72 * 1.5	45~54	16
M72 * 2.0	45~54	16
M75 * 2.0	55~66	18
M78 * 2.0	55~66	18
M80 * 2.0	55~66	18
M88 * 2.0	67~77	18
M90 * 2.0	67~77	18

FAQs

Q: How does the stainless‑steel PG cable gland achieve reliable cable sealing?

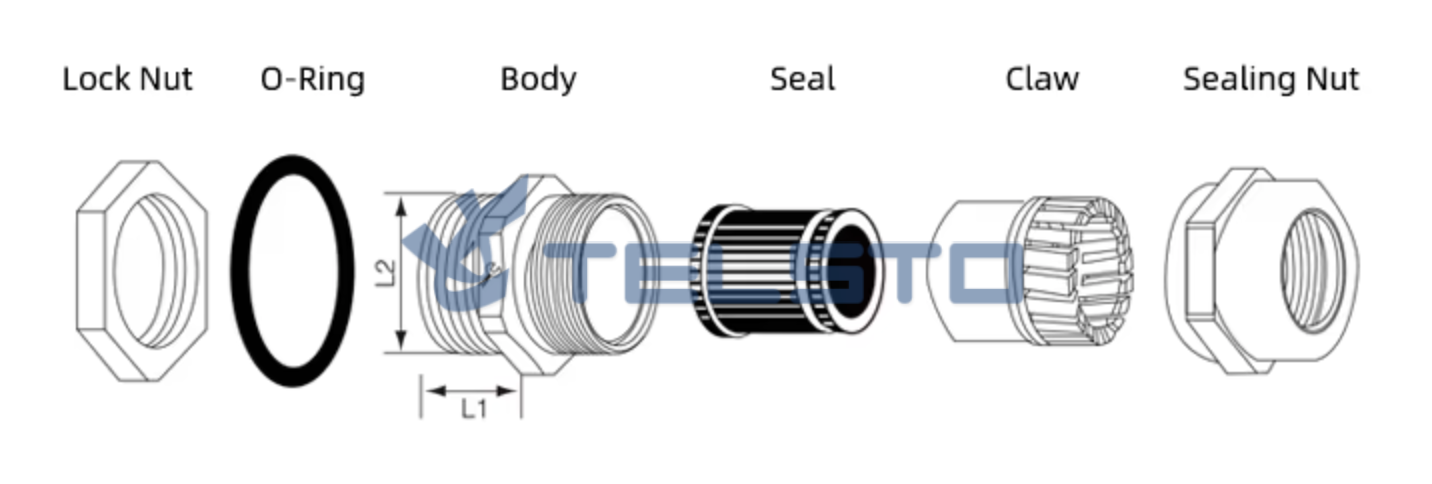

A: It is constructed with precision‑machined stainless‑steel body, compression nut and rubber sealing insert. Tightening the nut compresses the rubber seal to wrap tightly around cable outer sheath, realizing effective strain relief and IP‑grade sealing against dust and water ingress.

Q: What are the main application scenarios?

A: Widely applied for cable entry into electrical enclosures, junction boxes, control cabinets and automation equipment. Suitable for industrial workshops, marine‑related facilities, chemical plants and other harsh‑corrosion indoor & outdoor projects.

Q: Where can the cable gland be installed?
A: It mounts onto equipment housing pre‑drilled PG threaded holes. Fasten by thread connection from outside of cabinet/enclosure, easy for on‑site assembly.

Q: What are the advantages of stainless‑steel PG series cable gland?
A: Stainless‑steel material offers outstanding anti‑corrosion performance, high mechanical strength and long service life. Standard PG thread for quick installation, reliable strain relief and dust‑proof & water‑proof sealing performance. Well adapted for corrosive environments where brass cable glands cannot meet service requirements.

Q: Do you support sample orders?
A: Yes, samples are available for technical testing and evaluation before bulk order placement.
