Metal Cable Gland IP68 Waterproof Explosion-proof UL94-V0 Fireproof Brass Cable Glands

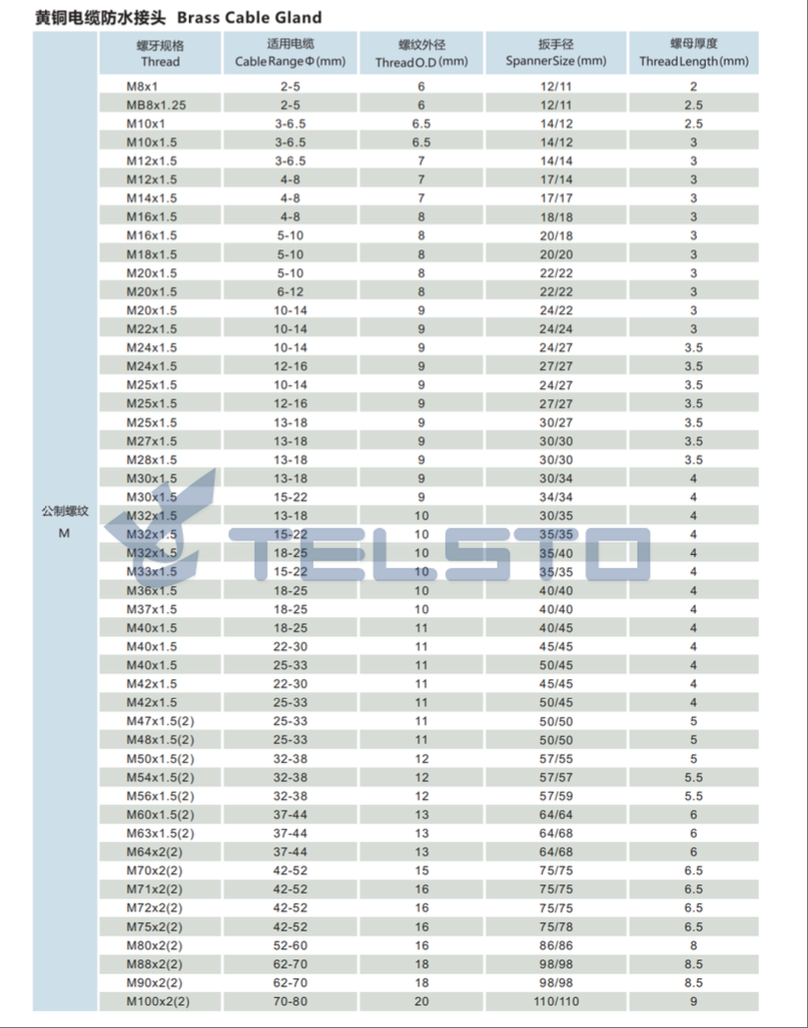

Specification for screw teeth: metric teeth (Metric), PG teeth, G (PF) teeth, NPT teeth

Material: Brass, nickel plated

Claw: PA

Sealing and sealing ring: NBR

NOTES: Can be customized high-temperature silicone, acid and alkali resistant fluorine rubber

Approvals: CE, ROHS

Protection degree: Ip68

Temperature Resistance: -40°C to 100°C, short time to 120°C(Can be customized – 60°C to 220°C)

Function: The design of special clamping claw and clamping ring, large clamping cable range, strong tensile

Strength .These cable glands are designed to withstand water, dust, salt, acid-base, alcohol, oil and common solvent.

Usage: Waterproof brass cable gland is the product of form a complete set of the cable, connector cable can be

lock, the other end can access devices on the box body, also can choose thread access according to the import and

export for internal thread electric devices.

Notes: Customization is available.
