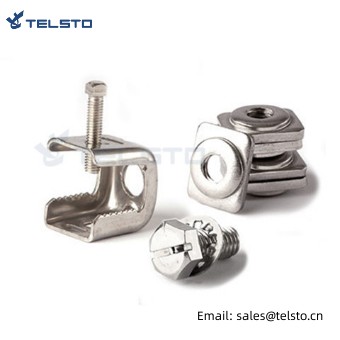

ANGLE ADAPTER FOR SNAP-IN HANGERS
Angle Adapters are used to attach a variety of cable hangers to angled tower members without drilling any holes into the tower leg. Since RF transmission line system needs a lot special clamps to fasten cables and equipment, Telsto has opened this special line for those special applications. We can produce clamps based on customer’s requirements.
| General Specifications | |
| Adapter Type | Angle adapter |
| Material Type | Stainless steel 304 |
| Maximum Loading | Triple stack, 1 -5/8 in cable |
| Mounting | 3/8 in, 3/4 in tapped hole |
| Dimensions | |
| Inside Length | 25.40 mm |
| Inside Width | 22.23 mm |
| Outside Length | 50.80 mm |
| Outside Width | 57.15 mm |
| Mechanical Specifications | |
| Installation Torque Max | 15.0 ft lb |
| Installation Torque Min | 11.0 ft lb |
| Material Thickness | 2.667 mm |
| Packed Specifications | |
| Height | 150 mm |
| Length | 350 mm |
| Width | 300 mm |
| Shipping Weight | 23.30Kg |
| Package Quantity | 100 PCS |
Stainless Steel Adapter used to attach a variety of cable hangers to angled tower members without drilling any holes into the tower leg.
· 1. Extra wide 1’’ opening for versatility
· 2. 3/4’’ holes accept Snap-in Hangers
· 3. Material:stainless steel
· 4. Include 3/8’’X1-3/4’’ SS Square head bolt
| Part NO. | Description | UOM |
| UA3 | Angle Adapter SS with 3/4’’ tapped holes | Kit of 10 |
Trade Information
| Trade terms | CIF, DDU, EX-WORKS |
| Payment terms | T/T, L/C, Negotiable |
| MOQ | 1 |
| Supply capability | 100000 pieces per month |
| Lead time | 3-15 days |
| Shipment | Sea, Air, Express |
| Port | Shanghai |
| Sample availability | Yes |
| Sample time | 3-5 days |
| Packaging | Plastic bag, Carton, Pallet |
