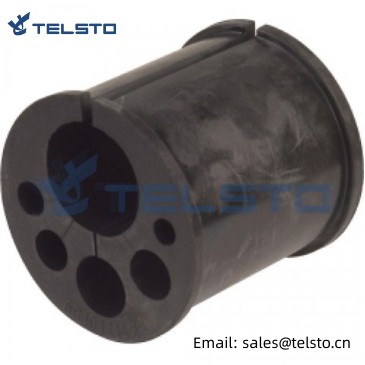

Barrel cushion Used with 1-5/8″ snap-in hangers

Place of Origin: Shanghai, China (Mainland)

Brand Name: Telsto

Model Number: rubber grommet with multiple hole

Product Line: Rubber Grommets

Product Type: rubber grommet with multiple hole

Material: EPDM rubber

Application: used to attach snap-in hanger, butterfly hanger, coax blocks

OEM: accepted

Send email to us

Description

Telsto Rubber Cushion provides versatility in any application, allowing a single cushion to mount a wide range of cable sizes, reducing material and installation costs. These cushions are constructed of UV-resistant EPDM rubber, allowing for proper functionality in extreme temperature and harsh environmental conditions. Barrel cushions are available in multiple sizes to accommodate industry demands for fiber, power, elliptical and coaxial cable requirements. The unique design allows the cushion to be individually installed utilizing Butterfly Hangers or stacked with Stack able Hangers and Mini Cable Blocks.

*Application: Clamp Port Solutions

*Size: Versions for coaxial cable

*Design: Compression fit round cushions

*Feature: Dependable seal

*Material: EPDM rubber

Barrel cushion Used with 1-58 snap-in hangers (3)

Product	Description	Part No.
Rubber Grommet	1/2" rubber grommet for 5mm cable	TEL-RG-1/2(5mm)
	1/2" rubber grommet for 7mm cable	TEL-RG-1/2(7mm)
	1/2" rubber grommet for 10mm cable	TEL-RG-1/2(10mm)
	7/8" rubber grommet for 6 - 13mm cable	TEL-RG-7/8(6-13mm)
	7/8" rubber grommet for 13 - 20mm cable	TEL-RG-7/8(13-20mm)
	1-1/4" rubber grommet for 17 - 20mm cable	TEL-RG-1-1/4(17-20mm)
	1-5/8" rubber grommet for 22 - 31mm cable	TEL-RG-1-5/8(22-31mm)
	1-5/8'' rubber grommet for 17-22mm cable	TEL-RG-1-5/8 (17-22mm)
	1-5/8'' rubber grommet for 7 3/8'' cable	TEL-RG-158(7x3/8'')
	1-5/8'' rubber grommet for 4x16mm hole cable	TEL-RG-158(4x16mm)
	1-5/8'' rubber grommet for 4x10mm, 2x16 mm hole cable	TEL-RG-158(4x10-2x16mm)
	1-5/8'' rubber grommet for 2x21mm hole cable	TEL-RG-158(2x21mm)
	1-5/8'' rubber grommet for 3x5mm, 3x10mm hole cable	TEL-RG-158(3x5-3x10mm)
	1-5/8'' rubber grommet for 6x1/4'' hole cable	TEL-RG-158(6x1/4'')
	1-5/8'' rubber grommet for 6,8,10,12,14,25mm hole	TEL-RG-158 MLT6
	1-5/8'' rubber grommet for 24-31mm hole cable	TEL-RG-158(24-31mm)
	1-5/8'' rubber grommet for 35mm hole cable	TEL-RG-158(35mm)
	1-5/8'' rubber grommet for 2x5/8'' hole cable	TEL-RG-158(2x5/8'')
	1-5/8'' rubber grommet for 29.7mm hole cable	TEL-RG-158(29.7mm)
	1-5/8'' rubber grommet for 39.6mm hole cable	TEL-RG-158(39.6mm)
