clip on grounding kit for 1/2 cable
Clip-on ground kits are an advanced type for coaxial cable grounding, providing an easy installation as well as dependable protection of coaxial cable system. The designed clip design and pre- formed strap allow the clip-on ground kits to be easily slipped over the coaxial cable’s outer conductor.
The latch was optimized to provide a secure fix maximizing performance by ensuring proper contact surface area and pressure.
Contact: high quality copper strap;
Grounding clamp: per-formed copper strap;
Grounding / earthing cable:16mm2 or 25mm2 BV or BVR copper wire for earthing to
buss bar;
Copper lugs: 16-8, 25-8 tin plated copper lugs to connect to grounding bar;
Installation accessories: stainless steel 304.
Grounding kits protect BTS against lighting, Telsto grounding kits are fast-installed, easy and error-free with self-securing grounding strap. Grounding kit body facilitates a proper attachment to the coaxial cable, ensuring that the performance of the coaxial cable is not being compromised. The tin plated copper clip provides a secure, low resistance connection to the cable outer conductor and the field-installable lug allows for custom ground wire lengths.
*Various types
*Fast installation
*Perfect lighting protection
*Total weather proofing
Application:
Grounding for following indoor / outdoor cable;
1, Telecom cable
2, Fiber cable
3,Coaxial cable
4, Feeder cable
5, Hybrid cable
6, Corrugated cable
7, Smooth cable
8, Braid cable
| Product | Description | Part No. |
| Click-on Typeincluding butyl and electric tape | for 1/4" coaxial cable | TEL-GK-C-1/4 |
| for 1/2" coaxial cable | TEL-GK-C-1/2 | |
| for 7/8" coaxial cable | TEL-GK-C-7/8 | |
| for 1-1/4" coaxial cable | TEL-GK-C-5/4 | |
| for 1-5/8" coaxial cable | TEL-GK-C-13/8 |

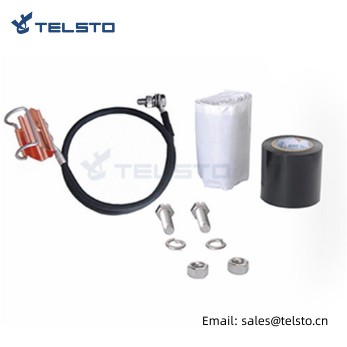

1. Each kit include grounding kit, installation hardware,
2. Weatherproofing kit are select able between China brand and 3M
