Hot selling communication auxiliary material Cable Entry plate / Feeder Cable Entry plate


  • Place of Origin: Shanghai, China (Mainland)
  • Brand Name: Telsto
  • Product Name: aluminum feeder window
  • Keyword: cable entry plate
  • Application: Structure Cabling System
  • Cable type: 1/2",7/8",1-1/4", 1/5/8"
  • Description

    Application

    Apply to all sorts of cable into the engine room, thus play a role in sealing, apply to mobile base station, exchange, microwave station etc. kinds of engine room.

    Material:

    1, metal parts: high quality aluminum alloy plate or stainless steel

    2, sealing element: top-quality rubber that high and low temperature resistant non-deformed and anti-aging capability

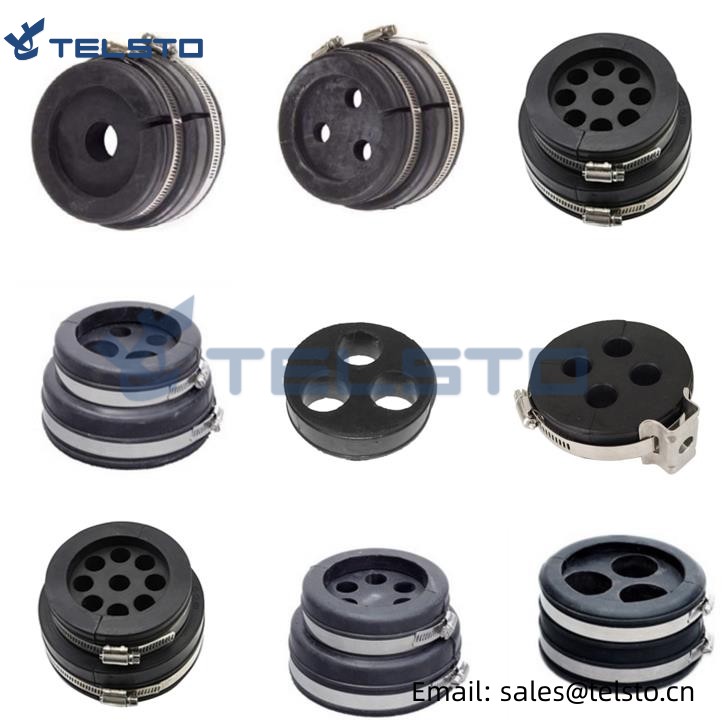

    Feeder Cable Entry plate (2)

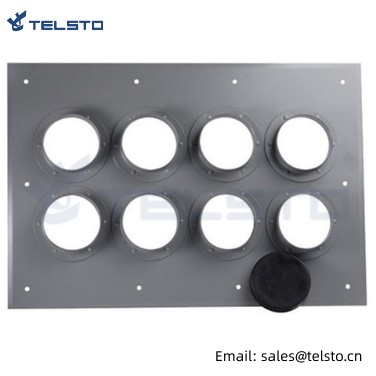

    Feeder Cable Entry plate (1)

    Feature:

    1, adopt -55°C~+60°C temperature changing.

    2, resistant to corrosion of corrosive gas, air, acid rain.

    3, prevent the rain and outside moisture into the engine room through the gap between cable and sealing element or the gap between HLKC and wall. The grade of seal performance can reach IP65.

    4, shield electromagnetism disturbing

    5, provide all sorts of different types sealing element form a whole sealing part, meet different OD cable through a HLKC into the room

    Installation instructions:

    a. reserved a suitable hole, the detailed dimension refer to the product specification.

    b. fix the seal plate into the reserved hole by anchoring.

    c. put waterproof silica gel around the seal plate, the sealing effect will be better.

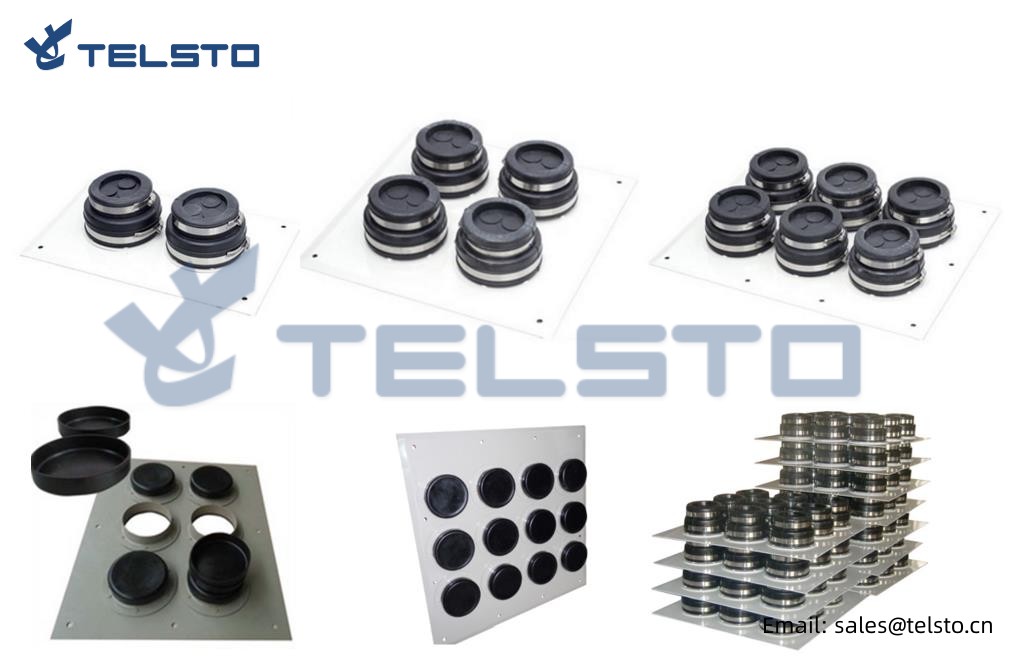

    Feeder Cable Entry plate (3)
    Product Hole Of Ports Wall Opening Overall Size Part No.
     1 1  4'' x 4''  5'' x 5'' TEL-EP-1x1
     2 2  4'' x 10'' 9.5''x 15.5'' TEL-EP-1x2
     3 3 4'' x 15'' 9.5'' x 20'' TEL-EP-1x3
     4 4  4'' x 20.5'' 9.5'' x 25.5'' TEL-EP-1x4
     5 4 9.5'' x 11'' 17.5'' x 17.5'' TEL-EP-2x2
     6 6 9.5'' x 15'' 17.5'' x 23'' TEL-EP-2x3
     7 8  9.5'' x 20.5'' 17.5'' x 25.5'' TEL-EP-2x4
     8 9 15'' x 15''  23'' x 23'' TEL-EP-3x3
     9 12 15'' x 20.5'' 25.5'' x 25.5'' TEL-EP-3x4
     10 12  9.5'' x 31.5'' 17.5'' x 39.5'' TEL-EP-2x6
     11 16 20.5'' x 20.5'' 25.5'' x 25.5'' TEL-EP-4x4
     12 18 15'' x 31.5''  25.5'' x 39.5'' TEL-EP-3x6
     13 24  20.5'' x 31.5'' 31'' x 39.5'' TEL-EP-4x6
