158 grommet with single 44 mm hole for 1 5/8 in standard or click-on hanger
Telsto Barrel Cushion provides versatility in any application, allowing a single cushion to mount a wide range of cable sizes, reducing material and installation costs. These cushions are constructed of UV-resistant EPDM rubber, allowing for proper functionality in extreme temperature and harsh environmental conditions. Barrel cushions are available in multiple sizes to accommodate industry demands for fiber, power, elliptical and coaxial cable requirements. The unique design allows the cushion to be individually installed utilizing Butterfly Hangers or stacked with Stack able Hangers and Mini Cable Blocks.
*Application: Clamp Port Solutions
*Size: Versions for coaxial cable
*Design: Compression fit round cushions
*Feature: Dependable seal
*Material: EPDM rubber

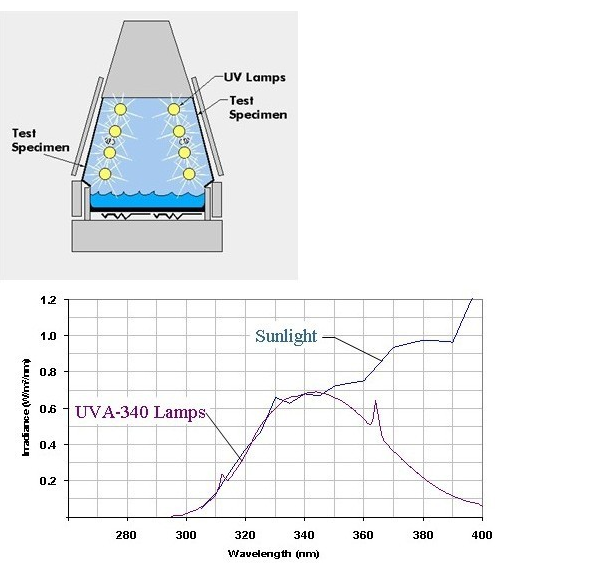

*UV Resistance＞1000 hours
*ROHS Compliant
|
Product |
Description | Part No. |
|
Barrel Cushions |
1/2" rubber grommet for 5mm cable | TEL-RG-1/2(5mm) |
| 1/2" rubber grommet for 7mm cable | TEL-RG-1/2(7mm) | |
| 1/2" rubber grommet for 10mm cable | TEL-RG-1/2(10mm) | |
| 7/8" rubber grommet for 6 - 13mm cable | TEL-RG-7/8(6-13mm) | |
| 7/8" rubber grommet for 11 - 17mm cable | TEL-RG-78(11-17) | |
| 7/8" rubber grommet for 13 - 20mm cable | TEL-RG-7/8(13-20mm) | |
| 1-1/4" rubber grommet for one 24.3mm cable | TEL-RG-114(24.3) | |
| 1-1/4" rubber grommet for 2x7mm and 2x16mm cable | TEL-RG-114(2X7-2X16) | |
| 1-1/4" rubber grommet for 7 - 11mm cable | TEL-RG-114(7-11) | |
| 1-1/4" rubber grommet for 17 - 20mm cable | TEL-RG-114(17-20) | |
| 1-5/8" rubber grommet for 22 - 31mm cable | TEL-RG-1-5/8(22-31mm) | |
| 1-5/8'' rubber grommet for 17-22mm cable | TEL-RG-1-5/8 (17-22mm) | |
| 1-5/8'' rubber grommet for 7 3/8'' cable | TEL-RG-158(7x3/8'') | |
| 1-5/8'' rubber grommet for 4x16mm hole cable | TEL-RG-158(4x16mm) | |
| 1-5/8'' rubber grommet for 4x10mm, 2x16 mm hole cable | TEL-RG-158(4x10-2x16mm) | |
| 1-5/8'' rubber grommet for 2x21mm hole cable | TEL-RG-158(2x21mm) | |
| 1-5/8'' rubber grommet for 3x5mm, 3x10mm hole cable | TEL-RG-158(3x5-3x10mm) | |
| 1-5/8'' rubber grommet for 6x1/4'' hole cable | TEL-RG-158(6x1/4'') | |
| 1-5/8'' rubber grommet for 6,8,10,12,14,25mm hole | TEL-RG-158 MLT6 | |
| 1-5/8'' rubber grommet for 24-31mm hole cable | TEL-RG-158(24-31mm) | |
| 1-5/8'' rubber grommet for 35mm hole cable | TEL-RG-158(35mm) | |
| 1-5/8'' rubber grommet for 2x5/8'' hole cable | TEL-RG-158(2x5/8'') | |
| 1-5/8'' rubber grommet for 29.74mm hole cable | TEL-RG-158(29.74mm) | |
| 1-5/8'' rubber grommet for 1x10mm and 1x20.2mm cable | TEL-RG-158(1X10-1X20.2) | |
| 1-5/8'' rubber grommet for 1x10mm and 2x20.4mm cable | TEL-RG-158(1X10-2X20.4) | |
| 1-5/8'' rubber grommet for 1x10mm and 2x24.3mm cable | TEL-RG-158(1x10-1x24.3) | |
| 1-5/8'' rubber grommet for 1x10mm and 1x27.94mm cable | TEL-RG-158(1X10-1X27.94) | |
| 1-5/8'' rubber grommet for 4x7mm and 4x12.5mm cable | TEL-RG-158(4X7-4X12.5) | |
| 1-5/8'' rubber grommet for 27.94mm hole cable | TEL-RG-158(27.94) | |
| 1-5/8'' rubber grommet for 39.6mm hole cable | TEL-RG-158(39.6mm) | |
| 2-1/4'' rubber grommet for 1x10mm and 2x24.3mm cable | TEL-RG-214(1X10-2X24.3) |
