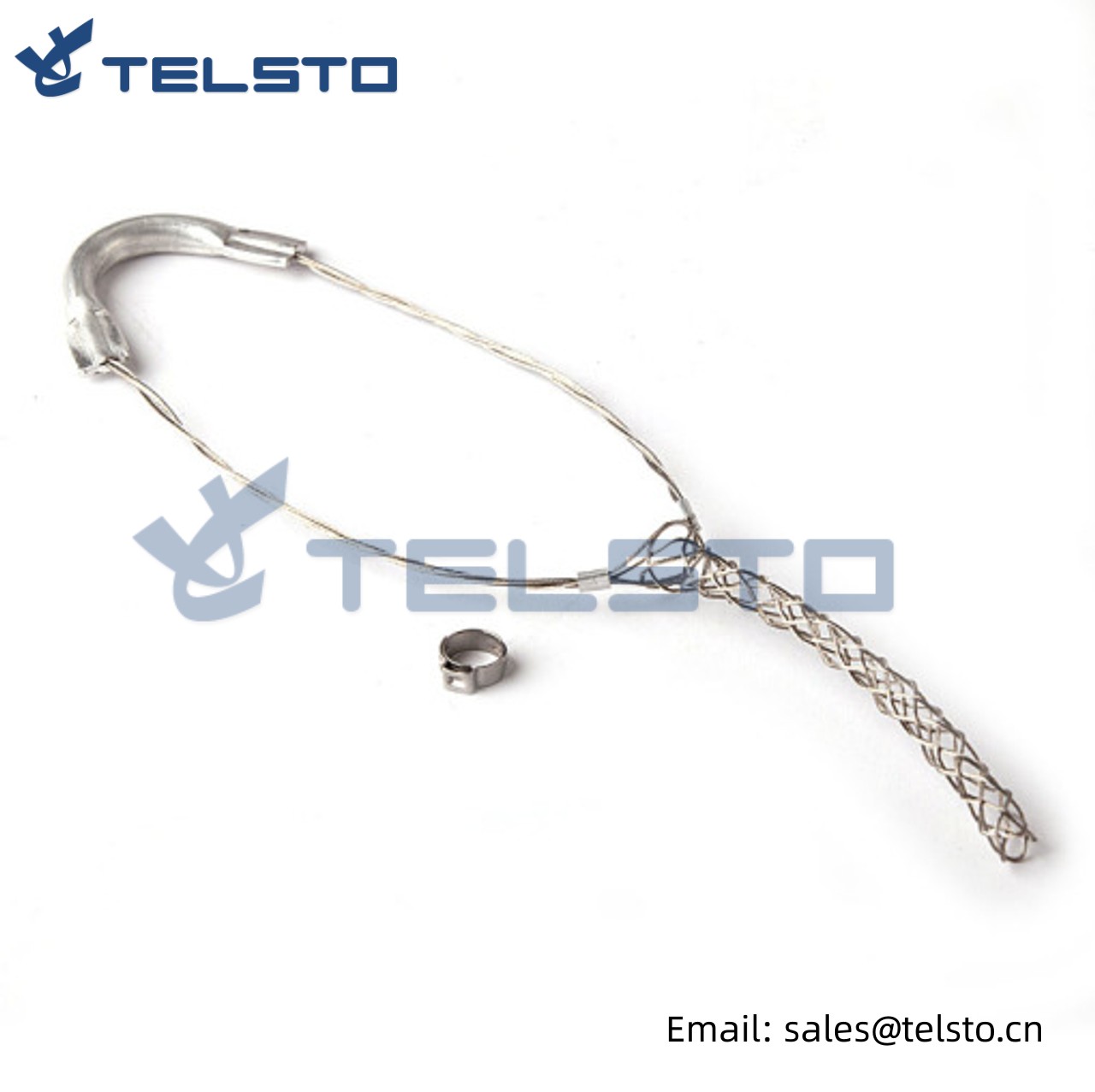

Lace-up Hoisting Grip 78
Telsto Hoisting grips provide an effective method for hoisting coax and elliptical wave guide into position and can be utilized to provide additional support once in place. Hoisting grips for coaxial cables include a self-locking clip and sealing tape to provide additional support both during and after installation.
*Application: Coaxial cable and wave guide support
*Size: Versions for coaxial and elliptical wave guide
*Design: Mesh grip with single eye support
*Feature: Lace-up installation at any point on coaxial
*Material: Stainless Steel
Lace-up Hoisting Grip for Fiber Feed cables, lifting grip for 7/8" cable
Application : coax support
Size : 7/8"
Feature : Lace up at any point on coax
Design : Open mesh with single eye support
Material : Stainless steel or Tinned bronze
Include : Mesh Grip, Lacing wire, Installation instructions
Lace-up hoisting grips provide an effective means for hoisting coax and elliptical wave guide into position and can be utilized to provide additional support once in place. The lace-up design allows the hoisting grip to be attached even when the run has been containerized and facilitates easy positioning at 200 (61m) increments on long coax runs..
| Product | Description | Part No. |
| Lace-up Type | 304 Stainless Steel Material, for 1/2" coaxial cable | TEL-HG-L-1/2 |
| 304 Stainless Steel Material, for 7/8" coaxial cable | TEL-HG-L-7/8 | |
| 304 Stainless Steel Material, for 1-1/4" coaxial cable | TEL-HG-L-5/4 | |
| 304 Stainless Steel Material, for 1-5/8" coaxial cable | TEL-HG-L-13/8 | |
| Pre-Laced Type | 304 Stainless Steel Material, for 1/2" coaxial cable | TEL-HG-P-1/2 |
| 304 Stainless Steel Material, for 7/8" coaxial cable | TEL-HG-P-7/8 | |
| 304 Stainless Steel Material, for 1-1/4" coaxial cable | TEL-HG-P-5/4 | |
| 304 Stainless Steel Material, for 1-5/8" coaxial cable | TEL-HG-P-13/8 |

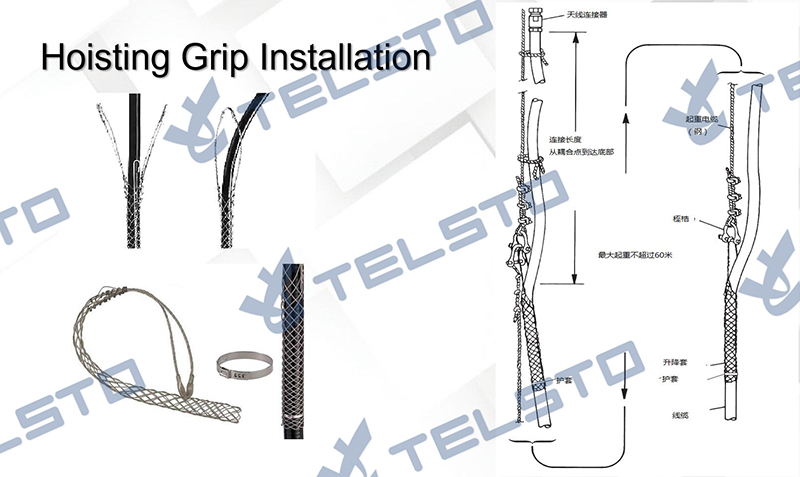

Installation instructions
