Low PIM 4.3/10 female Jack to N male plug straight adapter connector
Telsto RF Adapter has an operational frequency range of DC-6 GHz, offers excellent VSWR performance and Low Passive Inter modulation. This makes it ideally suited for use in cellular base stations, distributed antenna systems (DAS) and small cell applications.
RF 4.3/10 Adapters are a small, lightweight solution with excellent low PIM (Passive Inter modulation).
The adapters offer excellent performance in a compact design and feature with a frequency range of 0GHz to 6GHz. Designed with a variety of coupling configurations, these easy to install adapters provide a competitive advantage and a reliable electrical performance.
4.3/10 adapters are ideal for telecommunications, DAS networks, small cell systems, and mobile applications while providing a high density solution for wireless markets.
Telsto 4.3 10 female to N male adapter is a coaxial adapter design with a 50 Ohm impedance. This 50 Ohm 4.3 10 adapter is manufactured to precise RF adapter specifications and has a maximum VSWR of 1.15:1.
|
Product |
Description | Part No. |
|
RF Adapter |
4.3-10 Female to Din Female Adapter | TEL-4310F.DINF-AT |
| 4.3-10 Female to Din Male Adapter | TEL-4310F.DINM-AT | |
| 4.3-10 Female to N Male Adapter | TEL-4310F.NM-AT | |
| 4.3-10 Male to Din Female Adapter | TEL-4310M.DINF-AT | |
| 4.3-10 Male to Din Male Adapter | TEL-4310M.DINM-AT | |
| 4.3-10 Male to N Female Adapter | TEL-4310M.NF-AT | |
| Din Female to Din Male Right Angle Adapter | TEL-DINF.DINMA-AT | |
| N Female to Din Male Adapter | TEL-NF.DINM-AT | |
| N Female to N Female Adapter | TEL-NF.NF-AT | |
| N Male to Din Female Adapter | TEL-NM.DINF-AT | |
| N Male to Din Male Adapter | TEL-NM.DINM-AT | |
| N Male to N Female Adapter | TEL-NM.NF-AT | |
| N Male to N Male Right Angle Adapter | TEL-NM.NMA.AT | |
| N Male to N Male Adapter | TEL-NM.NM-AT | |
| 4.3-10 Female to 4.3-10 Male Right Angle Adapter | TEL-4310F.4310MA-AT | |
| DIN Female to Din Male Right Angle RF Adapter | TEL-DINF.DINMA-AT | |
| N Female Right Angle to N Female RF Adapter | TEL-NFA.NF-AT | |
| N Male to 4.3-10 Female Adapter | TEL-NM.4310F-AT | |
| N Male to N Female Right Angle Adapter | TEL-NM.NFA-AT |
Related

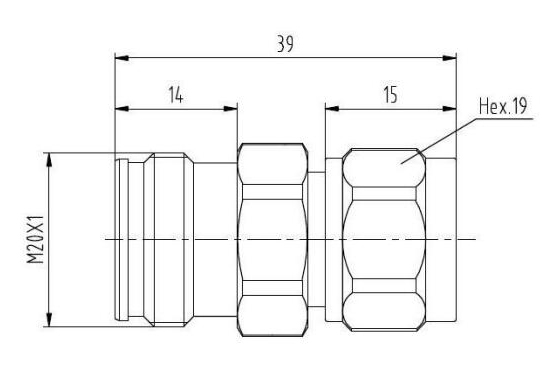

Model: TEL-NM.4310F-AT
Description
N Male to 4.3-10 Female Adapter
| Material and Plating | ||
| Material | plating | |
| Body | Brass | Tri-Alloy |
| Insulator | PTFFE | - |
| Center conductor | Phosphor bronze | Ag |
| Electrical Characteristics | ||
| Characteristics Impedance | 50 Ohm | |
| Frequency Range | DC~6 GHz | |
| VSWR | ≤1.10(3.0G) | |
| Insertion loss | ≤ 0.10dB | |
| PIM | ≤ -160dBc | |
| Dielectric Withstanding Voltage | ≥2500V RMS,50Hz,at sea level | |
| Dielectric Resistance | ≥5000MΩ | |
| Mechanical | ||
| Durability | Mating cycles ≥500 | |
| Environmental | ||
| Temperature range | -40~+85℃ | |
Installation Instructions of N or 7 / 16 or 4310 1 / 2″ super flexible cable
Structure of connector: ( Fig1 )
A. front nut
B. back nut
C. gasket
Stripping dimensions is as shown by diagram ( Fig2 ), attention should be paid while stripping:
1. The end surface of inner conductor should be chamfered.
2. Remove impurities such as copper scale and burr on the end surface of the cable.
Assembling the sealing part: Screw the sealing part in along the outer conductor of the cable as shown by the diagram ( Fig3).
Assembling the back nut (Fig3).
Combine the front and back nut by screwing as shown by diagram ( Figs( 5)
1. Before screwing, smear a layer of lubricating grease on the o-ring.
2. Keep the back nut and the cable motionless, Screw on main shell body on back shell body. Screw down main shell body of back shell body using monkey wrench. Assembling is finished.
