Low PIM 50 Ohm RF Connector N Male Clamp Type for 1/2” 1/2 Inch Superflexible Corrugated Coaxial Cable Andrew FSJ4-50B

50 Ohm Low PIM N Type Male Connectors Clamp Types

Features and Benefits

(1) Broadband performance from DC to 6 GHz, with low signal reflection
(2) Durable mechanics rated for ≥ 500 mating cycles with consistent contact performance
(3) IEC 61169-52 compliant, ensuring reliable quality control and standardization

(4) N type interface for stable signal transmission

(5) Great electrical performance, low PIM -160dBc

(6) Supporting customized cable jumpers to meet custom requirements for specifications


Description

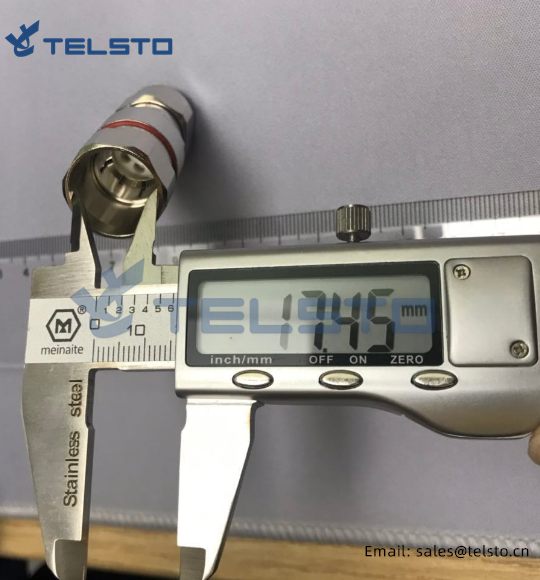

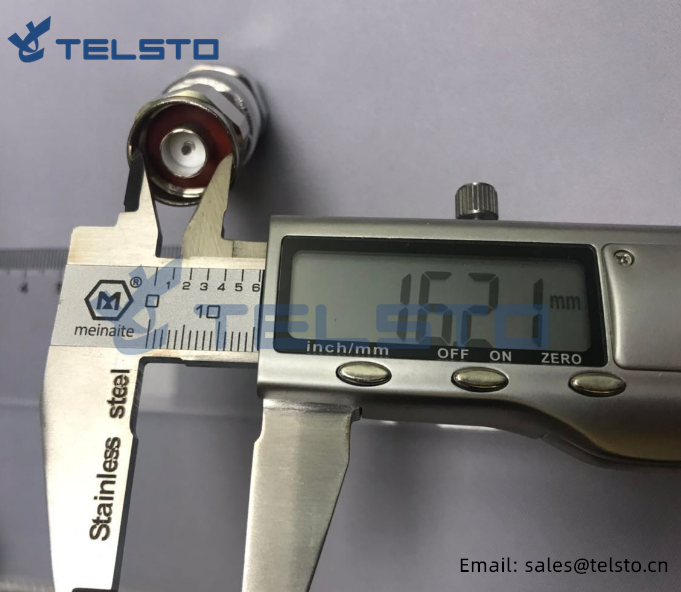

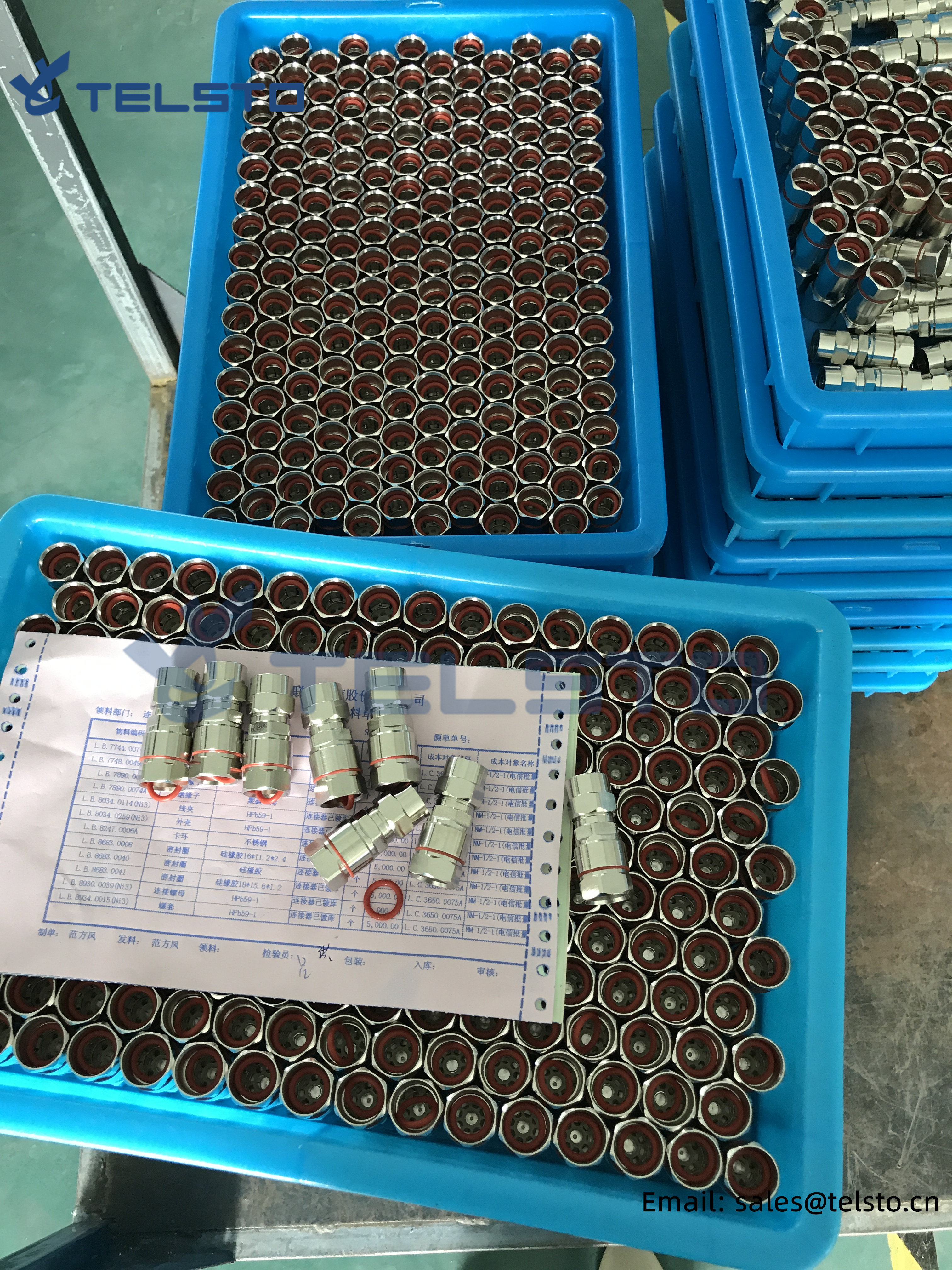

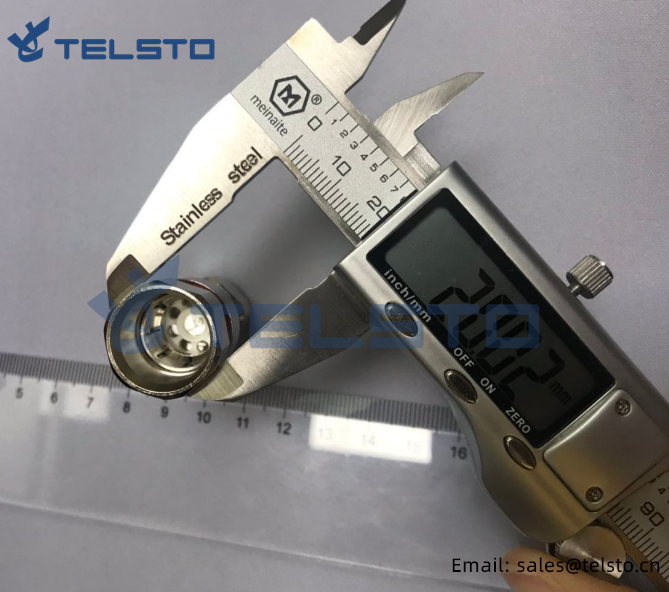

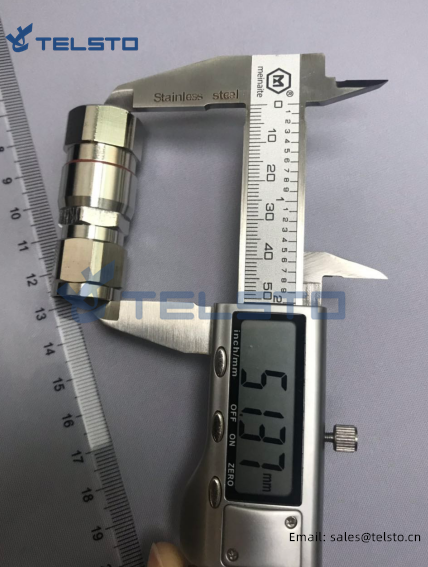

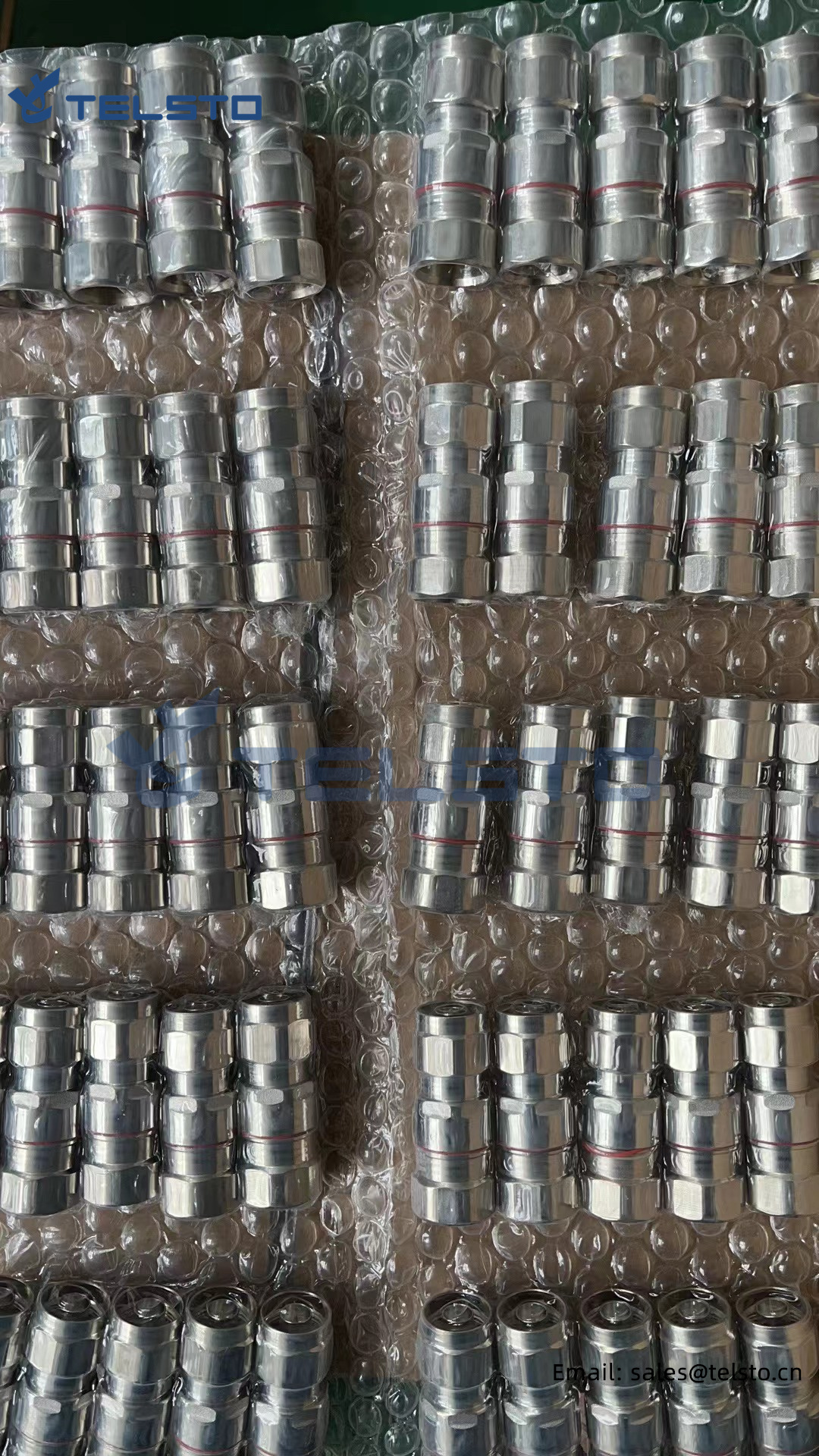

1 2 3 4 IMG_7431 packing

Material and Plating
Center contact Brass / Silver Plating
Insulator PTFE
Body & Outer Conductor Brass / alloy plated with tri-alloy
Gasket Silicon Rubber
Electrical Characteristics
Characteristics Impedance 50 Ohm
Frequency Range DC~3 GHz
Insulation Resistance ≥5000MΩ
Dielectric Strength ≥2500 V rms
Center contact resistance ≤1.0 mΩ
Outer contact resistance ≤1.0 mΩ
Insertion Loss ≤0.05dB@3GHz
VSWR ≤1.12@3.0GHz
Temperature range -40~85℃
PIM dBc(2×20W) ≤-160 dBc(2×20W)
Waterproof IP67
