AISG Jumper Cable
Product specifications
l Standard impedance: ≤5mΩ
l Frequency range: N/A
l Working voltage: AC 250V
l Length: L meters
Material and electroplating type
l Outer conductor: HPb59-1
l Center conductor: C5210 Ni50u”/Au3u”
l Dust cap: PE
l Insulator: PBT
l Insulator: Silicone rubber
Appearance, structure, size

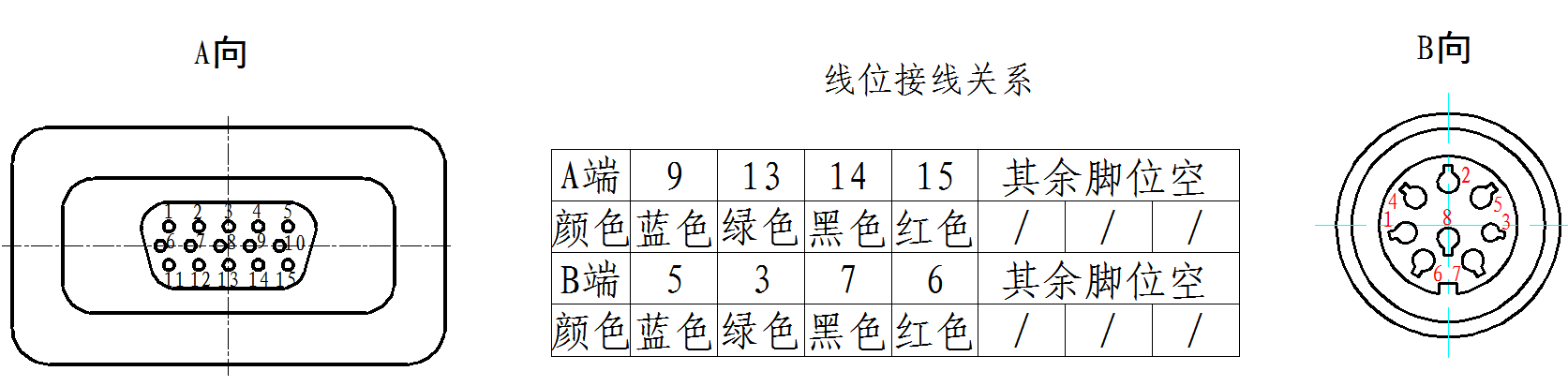

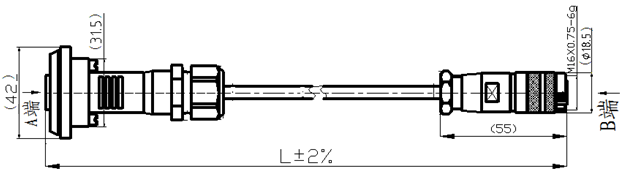

Appearance drawing of the cable assembly, requiring the length of the cable assembly, appearance processing requirements and other information to be marked in the drawing.
Cable technical requirements:
1. The structural dimensions and main components of the cable are shown in the figure on the left.
2. Rated voltage 300V
3. Coverage coverage ≥ 65%
4. Data conductor type: (0.21*4) RVVP 22AWG*4C
l If the electrical connection requirements are met, the wire color and wire quantity are not mandatory. The wire length is shown in the product specification requirements.
l Shielding material: magnesium-aluminum alloy
l Sheath material: PVC
l Color: black, red, yellow, orange
5. Standards required: UL22AWG standard
6. In addition to meeting the above technical requirements, it is required that the appearance after UV 1000 hours test is free of whitening, cracking, peeling, bulging and other undesirable phenomena
Electrical characteristics
l Withstand voltage: 500V
l Contact impedance: <5mΩ
l Insulation impedance: 500MΩ
l Rated voltage: 300V
Mechanical characteristics
l Insertion force: 6PIN-45N max;
l Pull-out force: 6PIN-45N max;
l Center conductor thrust: 6 1bs Min
l Connection nut bearing force: 80 lbs (350 N) Min
l Connection nut bearing torque: 10 lbs-in Min
l Waterproof requirements: IP67
l Mechanical life: 500 times
Environmental requirements
l Temperature cycle: -40℃ +85℃ (IEC 60068-1)
l Fireproof grade: UL94-V0
l Neutral salt spray: 96H
Environmental information
No environmental requirements.
Packaging requirements
l The product name, model, quantity, manufacturer’s logo, inspection certificate of the manufacturer’s quality department, manufacturing date, etc. are printed on the outside of the packaging box.
l Each wire is individually packed in a plastic bag and a label is attached to the packaging bag, where the label contains at least the following information: ERP code, model, length, PN code.
