Lowest price 7/16 Straight Male Clamp Type Connector for 1/2″ Flexible RF Cable
● RF coaxial cable assembly (7/16 DIN/N/Mini DIN/4.3-10/OEM/ODM).
● We focus on coaxial assemblies.
● Our custom RF cable assemblies are built-in and shipped worldwide.
● RF cable assemblies can be produced with many different connector types and custom lengths depending on your needs and applications.
● 1/2 feeder cable connector; 4.3-10 connector jumper; 4.3-10 female rf connector with flange; 4.3-10 lmr 400 connector; 7 16 din cable connector; barrel connector; coaxial cable connector; connector 4.3-10;mini din 4.3-10;mx connector; din 7 16 female connector.
Quick Details
| Place of Origin | Shanghai, China (Mainland) | Brand Name | Telsto |
| Model Number | DINM-12 | Type | 7/16 DIN |
| Application | RF | Gender | Male |
| Product Name | DINM-12 | Color | Argent/Golden |
| Material | Brass | Certificate | ISO9001/CE/ROHS |
| Connector type | 7/16 DIN | Plating | Nickel /Golden Palting |
| MOQ | 1 Piece | ODM/DEM | Offered |
| Insulation Resistance | ≥ 10000 MΩ | Temperature Range | -40°C to +85°C |
FAQ
What's your company MOQ?
MOQ is flexible.
What's your delivery time?
This please ask our stock in first, products can send out once receive your deposit. If use customer brands, we will take a 3-5days to prepare materials and mass production.
Can your company accept customize?
Welcome OEM & ODM.
How do you solve after sale service?
This please ask us for technical support if you have workers know how to repair. If do not have engineers, please send back the items, we can repair the items for you.
Can you send a sample for us to develop?
Samples could be provided.
Related
Model: TEL-DINM.12-RFC
Description

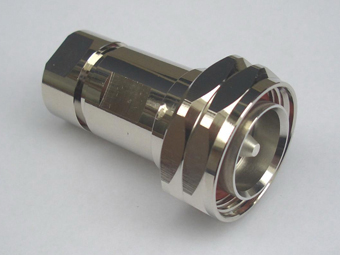

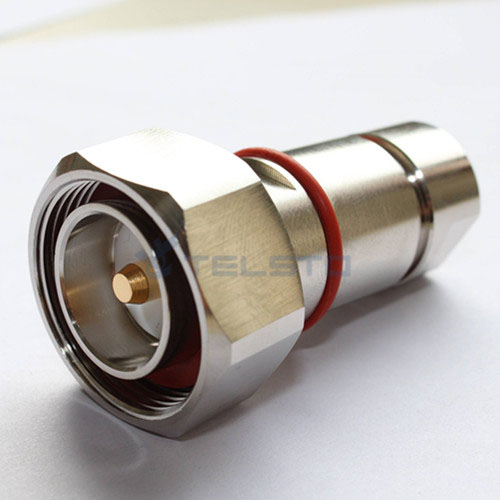

DIN Male connector for 1/2″ flexible cable
| Material and Plating | |
| Center contact | Brass / Silver Plating |
| Insulator | PTFE |
| Body & Outer Conductor | Brass / alloy plated with tri-alloy |
| Gasket | Silicon Rubber |
| Electrical Characteristics | |
| Characteristics Impedance | 50 Ohm |
| Frequency Range | DC~3 GHz |
| Insulation Resistance | ≥5000MΩ |
| Dielectric Strength | 4000 V rms |
| Center contact resistance | ≤0.4 mΩ |
| Outer contact resistance | ≤1.0 mΩ |
| Insertion Loss | ≤0.08dB@3GHz |
| VSWR | ≤1.08@-3.0GHz |
| Temperature range | -40~85℃ |
| PIM dBc(2×20W) | ≤-160 dBc(2×20W) |
| Waterproof | IP67 |
Installation Instructions of N or 7 / 16 or 4310 1 / 2″ super flexible cable
Structure of connector: ( Fig1 )
A. front nut
B. back nut
C. gasket
Stripping dimensions is as shown by diagram ( Fig2 ), attention should be paid while stripping:
1. The end surface of inner conductor should be chamfered.
2. Remove impurities such as copper scale and burr on the end surface of the cable.
Assembling the sealing part: Screw the sealing part in along the outer conductor of the cable as shown by the diagram ( Fig3).
Assembling the back nut (Fig3).
Combine the front and back nut by screwing as shown by diagram ( Figs( 5)
1. Before screwing, smear a layer of lubricating grease on the o-ring.
2. Keep the back nut and the cable motionless, Screw on main shell body on back shell body. Screw down main shell body of back shell body using monkey wrench. Assembling is finished.
