DIN 7/16 SERIES RF COAXIAL CONNECTORS for 1-5/8″ feeder cable
1. Characteristic Impedance: 50Ω
2. Frequency Range: 0-4GHz
3. Contact Resistance Inner conductor: ≤10 mΩ Out conductor: ≤4mΩ
4. Insulation Resistance≥5000MΩ
5. Dielectric Withstand≤1.306.
6. Durability 500 cycles
Order Guide
1. Inquiry-Professional quotation.
2. Confirm the price, lead time, artwork, payment term etc.
3. Telsto sales send the Proforma Invoice with freedom seal.
4. Customer make the payment for deposit and send us Bank receipt.
5. Initial Production Stage-Inform the clients that we have got the payment, And will make the samples according to your request, send you photos or Samples to get your approval. After approval, we inform that we will arrange the production & inform the estimated time.
6. Middle Production-send photos to show the production line which you can see your products. Confirm the estimated delivery time again.
7. End Production-Mass production products photos and samples will send to you for approval. You can also arrange the third-party Inspection.
8. Clients make payment for balance and Freedom Ship the goods. Also can accept payment term-Balance against B/L Copy Or L/C payment Term. Inform the tracking number and check the status for clients.
9. Order can be say “finish” when you receive the goods and satisfy with them.
10. Feedback to Freedom about Quality, Service, Market Feedback & Suggestion. And we can do better.
Related
Model: TEL-DINF.158-RFC
Description

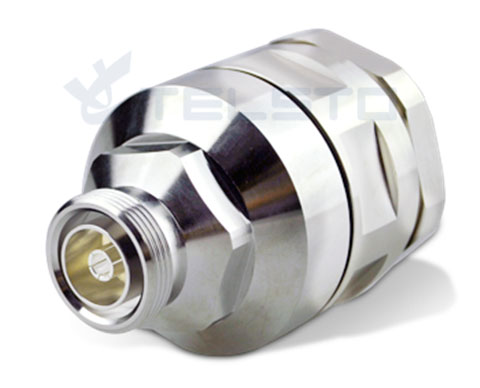

DIN Female connector for 1-5/8″ flexible cable
| Material and Plating | |
| Center contact | Brass / Silver Plating |
| Insulator | PTFE |
| Body & Outer Conductor | Brass / alloy plated with tri-alloy |
| Gasket | Silicon Rubber |
| Electrical Characteristics | |
| Characteristics Impedance | 50 Ohm |
| Frequency Range | DC~3 GHz |
| Insulation Resistance | ≥10000MΩ |
| Dielectric Strength | 4000 V rms |
| Center contact resistance | ≤0.4mΩ |
| Outer contact resistance | ≤1.5 mΩ |
| Insertion Loss | ≤0.12dB@3GHz |
| VSWR | ≤1.15@-3.0GHz |
| Temperature range | -40~85℃ |
| PIM dBc(2×20W) | ≤-160 dBc(2×20W) |
| Waterproof | IP67 |
Installation Instructions of N or 7 / 16 or 4310 1 / 2″ super flexible cable
Structure of connector: ( Fig1 )
A. front nut
B. back nut
C. gasket
Stripping dimensions is as shown by diagram ( Fig2 ), attention should be paid while stripping:
1. The end surface of inner conductor should be chamfered.
2. Remove impurities such as copper scale and burr on the end surface of the cable.
Assembling the sealing part: Screw the sealing part in along the outer conductor of the cable as shown by the diagram ( Fig3).
Assembling the back nut (Fig3).
Combine the front and back nut by screwing as shown by diagram ( Figs( 5)
1. Before screwing, smear a layer of lubricating grease on the o-ring.
2. Keep the back nut and the cable motionless, Screw on main shell body on back shell body. Screw down main shell body of back shell body using monkey wrench. Assembling is finished.
