RF 7/16 DIN Female Connector For 1-1/4 Inch Coaxial Cable
7/16 Din connector is specially designed for outdoor base stations in mobile communication (GSM, CDMA, 3G, 4G) systems, featuring high power, low loss, high operating voltage, perfect waterproof performance and applicable to various environments. It is easy to install and provides reliable connection.
7-16(DIN) coaxial connectors-high-quality coaxial connectors with low attenuation and inter-modulation.Transmission of medium to high power with radio transmitters and low PIM transmission of received signals such as in mobile phone base stations are typical applications due to their high mechanical stability and best possible weather resistance.
Features And Benefits
● Low IMD and low VSWR provides improved system performance.
● Self-flaring design ensures ease of installation with standard hand tool.
● Pre-assembled gasket protects against dust (P67) and water (IP67).
● Phosphor bronze / Ag plated contacts and Brass / Tri- Alloy plated bodies deliver a high conductivity and corrosion resistance.
Our Services
1. Reply your enquiry in 24 working hours.
2. Customized design is available. OEM &ODM are welcome.
3. Exclusive and unique solution can be provided to our customer by our well-trained and professional engineers and staffs.
4. Quick delivery time for decent order.
5. Experienced in doing business with large listed companies.
6. Free Samples can be provided.
7. 100% Trade Assurance of payment & quality.
Product Information
Connector Type: DIN
Installation method: clamp type
Gender: female
Matching cable: 1-1/4"
| Interface | |
| According to | IEC 61169-54 |
| Electrical | |
| Impedance | 50 ohm |
| Frequency | DC-3GHz |
| VSWR | (DC-3GHz)≤1.15 |
| PIM (@2-tone×20w) | ≤-155dBC |
| Dielectric withstanding voltage | ≤4000V RMS, 50Hz, at sea level |
| Dielectric Resistance | ≥10000MΩ |
| Center contact resistance | ≤0.4m Ω |
| Outer contact resistance | ≤1.5m Ω |
| Mechanical | |
| Mating cycles | ≥500 times |
| Apply with the cable | 1-1/4" coaxial cable |
| Material and plating | |
| Body | Brass / Tri-alloy plating |
| Center conductor | Phosphor bronze / Ag plating |
| Dielectric | PTFE |
| Other | Brass / Tri-alloy plating |
| Environmental | |
| Temperature range | -40℃~+85℃ |
| Watertightness | IP68 |
| Rosh-compliance | Full Rosh-compliance |
| Salt-fog test | 96h |
Packaging & Shipping
Packaging Details: The connectors will be packed in one small bag and then put in one box.
If you need custom package, we will do as your request.
Delivery time: Around a week.
1. We focus on RF Connector & RF Adapter &Cable Assembly &Antenna.
2. We have a vigorous and creative R&D team with the fullest mastery of the core technology.
We commit ourselves to the development of high performance connector production, and dedicate ourselves to achieving a leading position in connector innovation and production.
3. Our custom RF cable assemblies are built-in and shipped worldwide.
4. RF cable assemblies can be produced with many different connector types and custom lengths depending on your needs and applications
5. Special RF Connector ,RF Adapter or RF Cable assembly could be customized.
Related

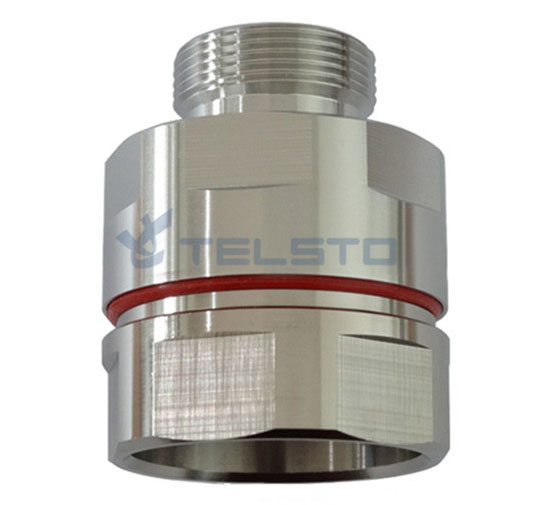

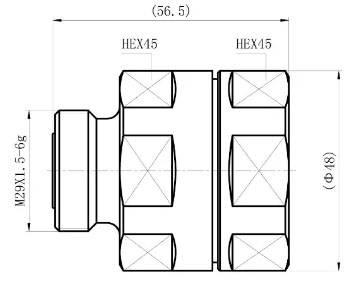

Model: TEL-DINF.114-RFC
Description:
DIN Female connector for 1-1/4″ flexible cable
| Material and Plating | |
| Center contact | Brass / Silver Plating |
| Insulator | PTFE |
| Body & Outer Conductor | Brass / alloy plated with tri-alloy |
| Gasket | Silicon Rubber |
| Electrical Characteristics | |
| Characteristics Impedance | 50 Ohm |
| Frequency Range | DC~3 GHz |
| Insulation Resistance | ≥10000MΩ |
| Dielectric Strength | 4000 V rms |
| Center contact resistance | ≤0.4mΩ |
| Outer contact resistance | ≤1.5 mΩ |
| Insertion Loss | ≤0.12dB@3GHz |
| VSWR | ≤1.15@-3.0GHz |
| Temperature range | -40~85℃ |
| PIM dBc(2×20W) | ≤-160 dBc(2×20W) |
| Waterproof | IP67 |
Installation Instructions of N or 7 / 16 or 4310 1 / 2″ super flexible cable Structure of connector: ( Fig1 ) A. front nut B. back nut C. gasket
Stripping dimensions is as shown by diagram ( Fig2 ), attention should be paid while stripping: 1. The end surface of inner conductor should be chamfered. 2. Remove impurities such as copper scale and burr on the end surface of the cable.
Assembling the sealing part: Screw the sealing part in along the outer conductor of the cable as shown by the diagram ( Fig3).
Assembling the back nut (Fig3).
Combine the front and back nut by screwing as shown by diagram ( Figs( 5) 1. Before screwing, smear a layer of lubricating grease on the o-ring. 2. Keep the back nut and the cable motionless, Screw on main shell body on back shell body. Screw down main shell body of back shell body using monkey wrench. Assembling is finished.
When you need high-quality coaxial cable connection, RF 7/16 DIN female connector is your best choice. This product is applicable to 1-1/4-inch coaxial cable and can be used in various communication and telecommunication applications.
RF 7/16 DIN female connector is made of high-quality materials, with corrosion resistance and oxidation resistance, which can ensure long-term reliability and stability. Its advanced design and technology ensure excellent electrical performance and frequency response. The product has excellent mechanical properties and can withstand high frequency and high power applications. In addition, the RF 7/16 DIN female connector is easy to install and disassemble, which can greatly improve work efficiency.
Our RF 7/16 DIN female connector conforms to international standards and has passed various strict tests and certifications, such as CE certification and RoHS certification, ensuring the quality and reliability of the product. In addition, we provide various customized services to meet the different needs of customers.
Whether you need to connect coaxial cables in communication, telecommunications or other fields, RF 7/16 DIN female connector is an indispensable tool for you. With high quality, reliability and ease of use, it can provide you with excellent connection performance and excellent communication quality
