Choosing the right coaxial cable is essential for maintaining signal integrity in telecom and wireless networks. A coaxial cable consists of a center conductor, dielectric, shielding, and outer jacket, ensuring superior signal transmission. Telsto’s Feeder Cable delivers reliable performance and durability for demanding applications.
- Signal quality and system reliability depend on proper coaxial cable selection.
Coaxial Cable Basics
What Is a Coaxial Cable?
A coaxial cable is a specialized cable designed for efficient signal transmission. It features a unique structure that allows it to carry data, video, and audio signals with minimal interference. The design of coaxial cable includes several layers, each serving a distinct purpose. The center conductor transmits the signal, while the dielectric insulator keeps the conductor separated from the shielding. The braided copper mesh acts as a shield against electromagnetic interference, and the plastic coating protects the cable from physical damage. The table below outlines the main structural components and their functions:
| Layer | Function |
|---|---|
| Center conductor | Carries data and video through a copper wire. |
| Dielectric plastic insulator | Provides insulation and maintains distance between the core and outer layers. |
| Braided copper mesh | Shields the cable from electromagnetic interference (EMI). |
| Plastic coating | Protects the internal layers from physical damage. |
Coaxial cables are widely used because their structure ensures reliable performance in various environments.
Role in Telecom and Wireless Networks
Coaxial cable plays a critical role in telecommunications and wireless network applications. It supports high-speed data transfer and stable signal quality. The following list highlights the most common applications for coaxial cables:
1. Cable Television (CATV) and Satellite TV
2. High-Speed Internet Connectivity
3. CCTV and Security Systems
4. Professional Audio and Video Transmission
5. Home Networking (MoCA Technology)
6. Wireless Communication Infrastructure
7. Smart Home Device Integration
Coaxial cables connect antennas, base stations, and devices, making them essential for modern communication systems. Their durability and shielding capabilities help maintain signal integrity in both indoor and outdoor installations.
Coaxial Cable Components
Center Conductor and Dielectric
The center conductor forms the core of a coaxial cable. It carries the signal and determines the cable’s electrical performance. Manufacturers use different materials for the conductor and dielectric to optimize signal transmission and minimize attenuation. The table below shows common materials and their impact on coaxial cable performance:
| Material Type | Description | Performance Impact |
|---|---|---|
| Solid Copper | Used for center conductors, effective for signal transmission. | Directly affects signal strength and clarity. |
| Copper-Plated Steel | Reduces cost while maintaining conductivity. | Affects flexibility and performance at high frequencies. |
| Solid Polyethylene (PE) | Common dielectric insulator for lower-loss cables. | Maintains spacing, reducing signal loss. |
| Polyethylene Foam | Allows larger conductors, reduces signal loss but absorbs moisture. | Can improve performance but may introduce risks. |
| Polytetrafluoroethylene (PTFE) | High-quality, low-loss material for premium cables. | Minimizes dielectric losses, enhancing performance. |
Coaxial cables with solid copper conductors deliver strong signal clarity. Polyethylene and PTFE dielectrics help reduce attenuation, making these cables suitable for telecom and wireless applications.
Shielding and Outer Jacket
Shielding protects coaxial cable from electromagnetic interference. The outer jacket adds mechanical strength and environmental resistance. These components play a vital role in maintaining signal integrity and durability.
• Shielding materials, such as braided copper or stainless steel, improve crush resistance and reduce attenuation.
• Outer jackets made from robust plastics help coaxial cables withstand harsh conditions, including moisture and UV exposure.
• Proper selection of shielding and jacket materials ensures reliable performance in both indoor and outdoor cable applications.
Tip: Choosing coaxial cable with high-quality shielding and a durable jacket helps maintain signal quality and extends cable lifespan.
Coaxial Cable Types and Applications
RG and LMR Series
Telecom and wireless networks rely on different types of coaxial cables for signal transmission. RG series cables, such as RG213, have been widely used for decades. LMR series cables, like LMR400, represent modern advancements in coaxial cable technology. The table below compares key features:
| Feature | RG213 | LMR400 |
|---|---|---|
| Attenuation at 1 GHz | ~19.0 dB/100m | ~9.0 dB/100m |
| Max Frequency Range | ~1 GHz | Up to 6 GHz |
| Power Handling | 1.5 kW | 1.8 kW |
| Shielding | Double Braid | Foil + Braid |
| Return Loss | Moderate | Excellent |
| Capacitance | 101 pF/m | 78.4 pF/m |
LMR400 cables deliver lower attenuation and superior shielding, making them ideal for high-frequency, long-distance applications. RG213 cables offer flexibility and reliability for lower-frequency, short-to-medium runs.
LMR400’s construction provides enhanced EMI protection and signal integrity, supporting demanding telecom environments.

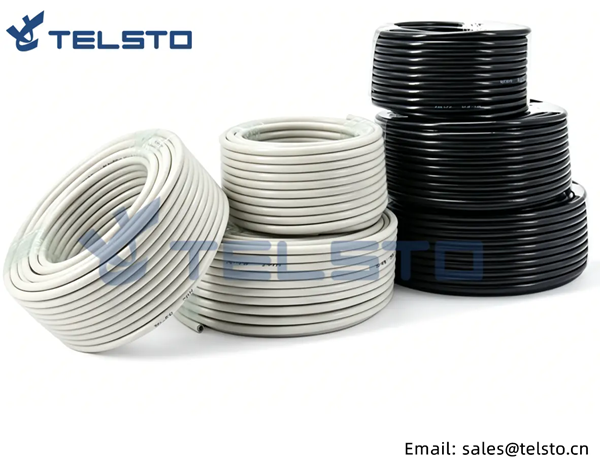

Telsto Feeder Cable Overview
Telsto Feeder Cable stands out in the industry with models like LMR300, LMR400, TEL500, TEL600, and TEL900. These coaxial cables serve a wide range of applications:
• Cellular infrastructure: Connecting antennas to RF equipment for 4G LTE and 5G.
• Wi-Fi and wireless LAN: Feeder cables for access points and distributed antenna systems.
• GPS and satellite communication: Reliable timing and ground station connections.
• Two-way radio and public safety: Used in land mobile radio systems.
• Broadcast: Transmitting radio and television signals.
• Military and aerospace: Lightweight, dependable RF connectivity.
• Test and measurement: Laboratory and field testing setups.
Telsto’s coaxial cable models combine durability and flexibility, ensuring efficient signal transmission in both indoor and outdoor installations.
Semi-Rigid and Micro-Coaxial Cables
Semi-rigid coaxial cables feature stable impedance and excellent shielding. These cables are ideal for microwave and millimeter-wave systems, including aerospace, radar, and laboratory instruments. Micro-coaxial cables, with diameters below 1 mm, fit space-constrained environments such as medical devices, automotive radar, and portable electronics. Precision connectors and careful bend radius management are essential for these coaxial cable types.
Selecting the right coaxial cable for each application ensures optimal signal performance and reliability across diverse telecom and wireless network applications.
Coaxial Cable Selection Criteria
Selecting the right coaxial cable is essential for maintaining signal quality and reliable transmission in telecommunications and wireless network applications. Each system has unique requirements, so matching cable specifications to the intended application ensures optimal performance and long-term durability.
Impedance and Frequency Range
Impedance is a key factor in how does a coaxial cable work. It measures the resistance to signal flow within the cable. The most common impedance values for coaxial cables are 50 ohms and 75 ohms. These values are not random. They are optimized for different uses:
• 50 ohms is standard for radio frequency communication and wireless networks.
• 75 ohms is preferred for video transmission and broadcast systems.
Matching the impedance of the cable to the connected equipment prevents signal degradation. A mismatch can cause reflections, leading to issues such as ghosting on television screens or data packet loss in internet connections. In severe cases, it may even damage sensitive electronics.
Frequency range compatibility is also vital. Each coaxial cable supports a specific frequency range. Using a cable outside its rated range limits performance and can cause signal loss. The cable and its connectors must both support the required frequency for the application. For example:
• Cellular base stations and Wi-Fi networks often require cables that handle frequencies up to 6 GHz.
• Lower-frequency cables may suffice for traditional television or radio frequency systems.
Selecting the correct impedance and frequency range ensures efficient signal transmission and prevents costly network issues.
Attenuation and Signal Loss
Attenuation refers to the reduction in signal strength as it travels through the cable. This loss increases with cable length, frequency, and poor material quality. Understanding how does a coaxial cable work helps explain why attenuation matters. The longer the cable, the more the signal weakens. High attenuation can result in poor data delivery and reduced reach for internet and wireless systems.
Several factors contribute to signal loss:
• Resistance loss from the conductor
• Dielectric loss from the insulation
• Mismatch loss from improper connections
• Leakage loss, especially in low-quality cables at high frequencies

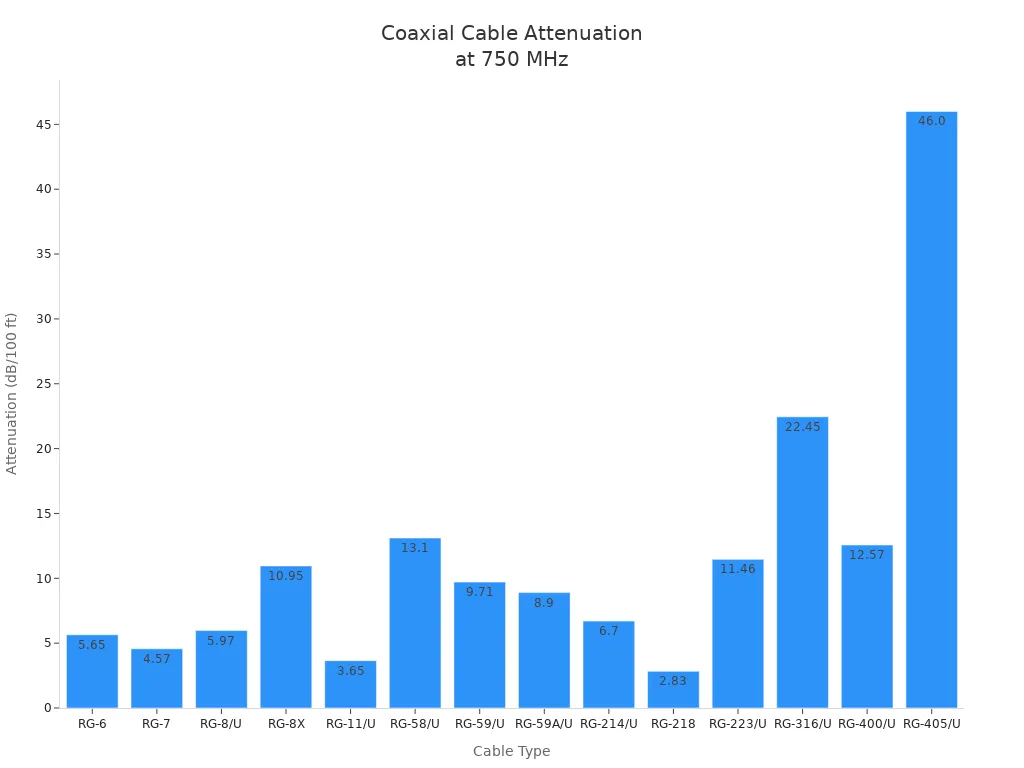

The table below shows typical attenuation rates for common coaxial cable types at 750 MHz:
| Type | Impedance (ohms) | Max. attenuation, 750 MHz (dB/100 ft) |
|---|---|---|
| RG-6 | 75 | 5.65 |
| RG-7 | 75 | 4.57 |
| RG-8/U | 50 | 5.97 |
| RG-8X | 50 | 10.95 |
| RG-11/U | 75 | 3.65 |
| RG-58/U | 50 | 13.10 |
| RG-59/U | 75 | 9.71 |
| RG-59A/U | 75 | 8.9 |
| RG-214/U | 50 | 6.7 |
| RG-218 | 50 | 2.83 |
| RG-223/U | 50 | 11.46 |
| RG-316/U | 50 | 22.45 |
| RG-400/U | 50 | 12.57 |
| RG-405/U | 50 | 46.0 |
When choosing a coaxial cable, consider the required cable length and the acceptable level of attenuation for your system. Telsto’s feeder cables, such as LMR400 and TEL600, are engineered for low attenuation, making them ideal for long runs and high-frequency applications.
Tip: For best coaxial cables in critical installations, select models with low attenuation and high-quality materials to maintain signal quality over longer distances.
Shielding and Environmental Factors
Shielding is another crucial aspect of coaxial cable advantages. The shielding layer blocks external electromagnetic interference (EMI) and radio frequency interference (RFI), protecting the signal during transmission. Types of shielding include braid, foil, double braid, and quad-shield. More layers provide better EMI resistance but may increase cable thickness and stiffness.
• Braid and foil shields are common in most telecom and internet applications.
• Quad-shield cables offer maximum protection in environments with high electronic noise.
Environmental factors also play a significant role in cable selection. Humidity, corrosion, and UV radiation can degrade cable materials. High humidity may allow moisture to penetrate the insulation, reducing dielectric strength and increasing the risk of short circuits. Corrosion can increase electrical resistance, while UV exposure can make insulation brittle and expose conductors.
For outdoor installations, choose coaxial cables with robust outer jackets and advanced shielding. Telsto’s feeder cables are designed to withstand harsh conditions, ensuring reliable performance in both indoor and outdoor environments.
Connector Compatibility and Assembly

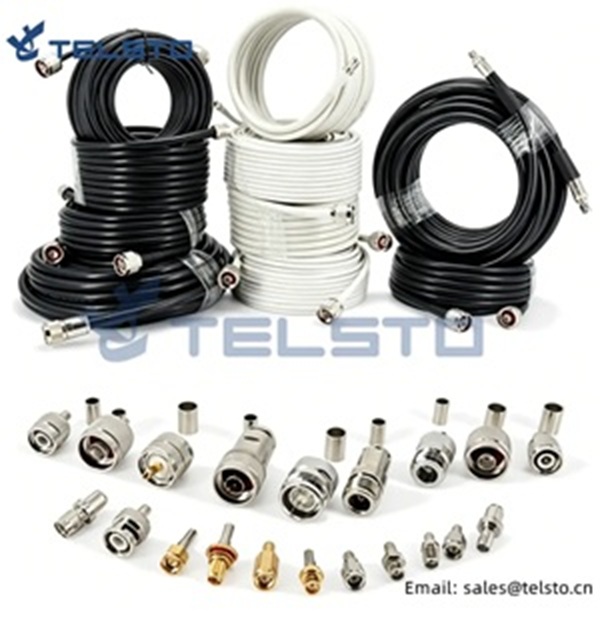

Connector compatibility is essential for stable signal transmission and long-term reliability. The most common connector types in telecommunications and wireless networks include:
• BNC: Used for RF equipment and video signals below 4 GHz.
• F-Type: Ideal for over-the-air television and residential RF signals.
• N-Type: Suitable for commercial applications with a wide frequency range.
• SMB: Popular in industrial and telecom equipment.
• 7/16 DIN: Used in high-wattage cellular network transmissions.
• QMA: Quick-lock connectors for industrial and communications uses.
Reliable connectors maintain signal strength and reduce interference. Poor connector selection or improper assembly can cause signal loss, inconsistent performance, and even system failure. High-quality connectors offer stable transmission, easy installation, and compatibility with various RF and communication systems.
Note: Always match the connector type to the cable and application. Proper assembly ensures the full benefits of your coaxial cable investment.
Coaxial Cable Assembly and Installation
Choosing the Right Assembly
Selecting the correct coaxial cable assembly is essential for high-performance telecom and wireless networks. The assembly process impacts signal quality, durability, and overall system reliability. Begin by gathering all necessary materials and identifying the specific cable type for your application. Clean and dry both ends of the cable before stripping the jacket, shield, and dielectric to the required lengths. Fold back the braid smoothly to maintain effective shielding. Insert the cable into the connector until the dielectric reaches the inner stop. Use a compression tool to collapse the sleeve evenly, ensuring a secure fit. Crimp the connectors and, if required, solder the pin with care. Excess solder or improper technique can cause impedance mismatches, reducing the efficiency of the rf coaxial cable assembly. Always check for full engagement and a proper seal to prevent signal loss.
A well-executed coaxial cable assembly minimizes data loss, interference, and noise. High-quality assembly ensures consistent signal transmission, robust shielding, and long-lasting performance, even in challenging environments. Poor assembly can lead to decreased performance, slower internet speeds, and increased latency.
Installation Best Practices
Proper installation of coaxial cable assemblies extends system life and maintains signal integrity. Avoid sharp bends or kinks during routing, as these can damage the cable and compromise shielding. Use cable clips or fasteners to secure the cable and maintain a smooth path. Verify that all connectors are tightly secured and properly aligned. Select the appropriate cable length and gauge to minimize signal degradation. For longer runs, consider using boosters or cell phone signal boosters to maintain signal strength. Proper grounding is necessary to prevent interference. Secure connections are critical, as a single failure can disrupt the entire network. Coaxial cable installation in wireless environments often faces challenges such as limited flexibility and higher costs for long distances, making careful planning essential.
Tip: Following best practices in coaxial cable assembly and installation helps ensure reliable performance and reduces the need for costly repairs or boosters.
Coaxial Cable Comparison Checklist
Quick Reference Table
Selecting the right coaxial cable for telecom and wireless networking applications requires a systematic approach. Professionals should evaluate several criteria to ensure optimal performance and reliability. The checklist below helps streamline the comparison process:
• Intended use: Identify whether the cable is for internet, television, radio, or other telecom systems.
• Signal type: Determine if the transmission is analog, digital, or a combination.
• Interference levels: Assess the environment for electromagnetic interference and select appropriate shielding.
• Distance: Measure the length the signal must travel and choose a cable that maintains strength.
• Strength and clarity: Select a coaxial cable that preserves signal integrity with minimal distortion.
• Interference resistance: Opt for cables with advanced shielding to reduce EMI and RFI.
• Impedance: Match the cable’s impedance to connected devices for proper signal transmission.
• Cable length: Longer runs require cables with superior shielding and low attenuation.
• Signal loss: Review attenuation specifications to support the required signal strength.
• Environment: Analyze installation conditions; outdoor cables need durable jackets.
• Flexibility: Decide between semi-rigid and flexible coaxial cables based on installation needs.
Tip: A thorough checklist ensures the coaxial cable meets all technical and environmental requirements for telecom and wireless systems.
The table below offers a quick reference for comparing RG and LMR coaxial cable options:
| Specification | RG Coaxial Cables | LMR Coaxial Cables |
|---|---|---|
| Attenuation | Low | Very Low |
| Flexibility | Moderate | High |
| Connector Types | F, BNC | N, SMA |
This comparison table assists professionals in quickly identifying the best coaxial cable for their networking projects. Proper shielding, impedance, and attenuation ratings are essential for maintaining signal quality and system reliability.
• Match impedance, frequency range, and shielding to your system’s needs when selecting a coaxial cable.
• Choose cables with low attenuation and robust construction for reliable performance.
• Select reputable brands like Telsto for quality and durability.
Consult technical resources or industry experts to ensure the best coaxial solution for your application.
FAQ
What is the recommended coaxial cable for outdoor telecom installations?
Telsto Feeder Cable models, such as LMR400 and TEL600, offer robust jackets and advanced shielding. These cables withstand moisture, UV exposure, and harsh environmental conditions.
How do I determine the correct impedance for my application?
• Identify your system requirements.
• Wireless networks and RF communication typically use 50-ohm cables.
• Video and broadcast systems often require 75-ohm cables.
Can Telsto Feeder Cable support high-frequency wireless networks?
Yes. Telsto Feeder Cable models handle frequencies up to 6 GHz, making them suitable for cellular, Wi-Fi, and satellite communication systems.
