Trefoil Cable Clamp Overview

In recent years, trefoil cable clamps have been widely adopted in medium-voltage electrical projects. The growing demand is driven by stricter short-circuit compliance standards and standardized cable management requirements for 11kV to 33kV power systems. For single-core power cables installed in trefoil formation, IEC 61914 certified trefoil clamps are required to ensure mechanical stability and system safety.

For conventional indoor and outdoor applications below 33kV, aluminum and polymer trefoil cleats provide stable and cost-effective performance matched to cable outer diameter. Stainless steel types are suitable for marine, chemical and high-corrosion working environments, while aluminum and polymer versions serve general industrial installation scenarios. This introduction focuses on practical technical specifications and application guidelines for engineering procurement and on-site installation.

Definition and Standard Application Scenarios

A trefoil cable clamp, also known as a trefoil cable cleat, is a professional mechanical support component. It fixes three single-core power cables in a regular triangular trefoil formation, maintaining consistent geometric alignment. This structure stabilizes magnetic symmetry and reduces induced circulating current compared with flat cable arrangement.

Trefoil clamps are industrial engineering parts rather than ordinary cable accessories. They apply to commercial, industrial and utility power installations, mainly for:

· 11kV–33kV substation feeders and switchgear connections
· Railway traction power distribution systems
· Underground duct bank projects with grouped single-core cables
· Wind farm and solar power substation construction
· Flame-retardant and non-metallic required hazardous area installations

This product is not applicable for data cables, signal wires or low-power control wiring. Its core function is to maintain structural stability under short-circuit fault conditions.

Industry Adoption Trend

The popularization of trefoil clamps mainly comes from two standardized industry upgrades:

First, IEC 61914 standard updates require third-party certification for cleats used in key infrastructure. Qualified products are tested and classified into Class A (≥15 kA) and Class B (≥50 kA) according to Annex D, ensuring stable short-circuit resistance.

Second, single-core XLPE cables are increasingly used in urban and underground medium-voltage networks. Trefoil layout reduces inductive reactance by approximately 30%, lowering line loss and thermal stress. Standard trefoil clamping has become a necessary part of power system design.

Material Types and Practical Selection Reference

Three mainstream materials are commonly used for trefoil clamps, with clear application boundaries:

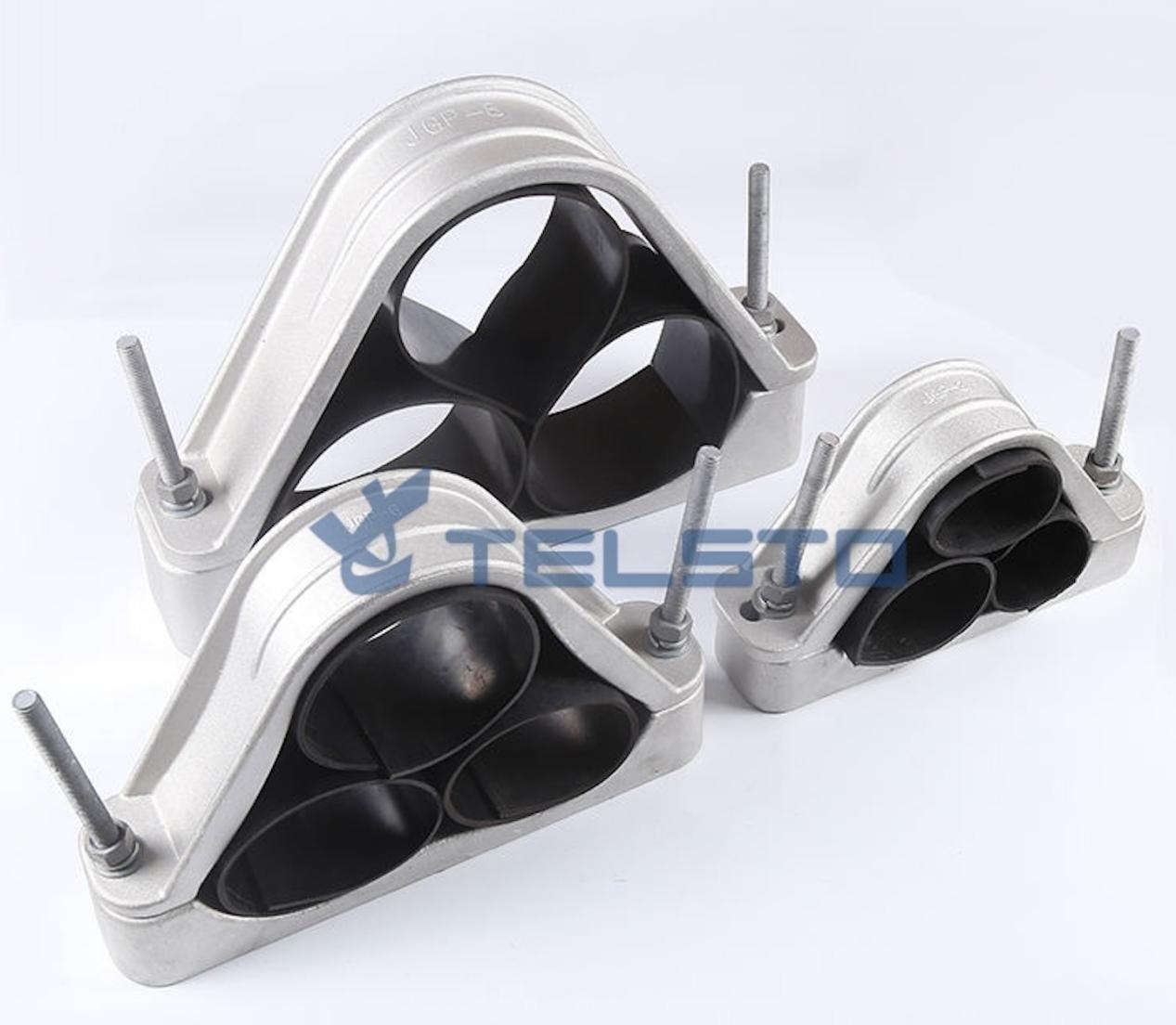

1. Aluminum

Lightweight, non-magnetic, thermally conductive and widely IEC-certified. Easy for on-site torque installation. Suitable for conventional indoor and outdoor dry environments, offering balanced performance and cost efficiency.

2. Polymer (FRP / Nylon)

Full non-conductive structure, UV-resistant and flame-retardant (UL94 V-0). Free from galvanic corrosion. Ideal for control panels, fire-risk areas and projects requiring electrical isolation.

3. Stainless Steel (304/316)

High mechanical strength and extreme corrosion resistance. Designed for offshore, marine and chemical industrial harsh environments.

Core Verifiable Technical Specifications

Product selection shall depend on objective technical parameters rather than vague commercial descriptions:

· Cable OD range: Match the actual measured outer diameter of the cable instead of nominal size to ensure accurate fitting and fixing performance.
· Short-circuit rating: Comply with IEC 61914 Annex D test standard. Confirm peak kA and sustainable duration according to system fault current.
· Mounting method: Mainly bolt fixing, compatible with cable trays, channels and strut structures. Verify structural matching before installation.
· Material certification: Metal products provide material mill certificates.
· Temperature class: The operating temperature range must cover ambient temperature and cable heating temperature.

Product Advantages and Application Limitations

Core Advantages

· Effectively avoids cable displacement and sheath abrasion during short-circuit faults
· Reduces inductive reactance and power loss of trefoil-laid cables
· Realizes compact cable arrangement and saves duct space
· Standardized sizing facilitates unified procurement and management

Application Notes

· Higher initial cost than ordinary cable ties, but reduces long-term maintenance frequency
· Accurate cable OD measurement is required before ordering
· Installation torque shall follow standard specifications to ensure mechanical stability
· Select corresponding protection class according to system voltage and fault level

Trefoil clamps are mandatory for formal power engineering above 1kV. For low-voltage temporary circuits and weak-current control wiring, ordinary fixing accessories are sufficient.

Standard Selection Procedure

1. Measure the actual outer diameter of single-core cables and confirm tolerance range

2. Clarify system voltage level and short-circuit fault current parameters

3. Select material according to on-site environmental conditions (corrosion, fire prevention, insulation requirements)

4. Confirm mounting hole specification and support structure compatibility

5. Verify IEC 61914 Class A/B certification and valid test reports

It is recommended to adopt size-matched single-specification clamps instead of wide-range adjustable types for more stable clamping performance.

Market Product Positioning & Brand Reference

Mainstream qualified trefoil cleat products in the market meet unified international standards. Certified aluminum clamps are widely used in large-scale utility projects. Polymer non-conductive types are mainstream for indoor electrical rooms and hazardous areas. Standardized certified products ensure project compliance and long-term operational stability.

Telsto supplies trefoil cable cleats that have passed short-circuit testing in accordance with IEC 61914, and are available in multiple models and sizes to match different cable diameters and installation conditions. Explore the range and select the right specification for your project: Telsto Trefoil Cable Cleat / Trefoil Cable Clamp, FRP clamp, 35–150mm — enquiries and orders are welcome.Email:sales@telsto.cn

Maintenance and Compliance Requirements

Trefoil cable clamps require minimal daily maintenance. Annual visual inspection is recommended to check for material aging, corrosion and loose fasteners. Retighten bolts to standard torque after long-term operation or fault events. Mixed installation of different metal materials is prohibited to prevent galvanic corrosion.

Most national and regional power engineering regulations require IEC 61914 compliant cleats for public infrastructure projects to meet safety and compliance audit standards.

Conclusion

Trefoil cable clamps are standard safety components for single-core power cables in trefoil formation. For formal power systems above 1kV, certified aluminum clamps with accurate OD matching are the universal preferred solution. Select FRP polymer or stainless steel types according to on-site corrosion, UV and flame-retardant requirements. Low-voltage weak current and temporary test scenarios do not require high-standard trefoil cleats.

FAQs

Q: What is a trefoil cable clamp?

A: It is a professional mechanical fixing component for three single-core power cables. The triangular trefoil structure balances magnetic fields and resists mechanical impact during short-circuit faults.

Q: What is trefoil cable layout?

A: Trefoil formation means three single-core cables are closely arranged in a triangular shape. This layout optimizes magnetic field balance and effectively reduces line inductive reactance.

Q: What are the benefits of trefoil formation?

A: It reduces inductive reactance by about 30%, lowers cable heating loss, improves current-carrying capacity, reduces electromagnetic interference, and saves laying space.

Q: What are the differences between trefoil clamp types?

A: Aluminum for general outdoor and utility projects; polymer/FRP for insulation and fireproof occasions; stainless steel for high-corrosion environments. Each type corresponds to independent engineering scenarios.

Q: Are trefoil clamps necessary for low-voltage systems?

A: They are mainly designed for LV/MV/HV power systems above 600V with short-circuit protection requirements. Ordinary fixing accessories are sufficient for low-voltage signal and control circuits.
