Aluminum FRP Trefoil Single Cable Cleats Aluminum Cable Management

Cable cleats are used for fixing, supporting & securing cables and protecting cables from short circuit faults.
Trefoil cable cleats are suitable for installing three single core cables in trefoil formation, with double bolt fixing arrangement feature.
Suitable for cables in trefoil groups.

Our aluminum and FRP cable cleats are available in single-core and trefoil three-core types, designed for secure fixing of low and high-voltage power cables. Adopting high-strength aluminum alloy or industrial FRP materials, these cable management accessories deliver stable clamping force, excellent structural rigidity and strong durability. Effectively resisting vibration, short-circuit impact, corrosion and UV aging, they ensure long-term stable cable operation for indoor and outdoor power engineering.
Place of Origin:China (Mainland)
Brand Name:Telsto
Shipment Method:Sea way, air way, DHL, UPS, FedEx, etc




Description

Two‑Piece Aluminium Alloy Cable Clamp for 30‑160 mm LV & HV Cables

The material provides stable corrosion resistance, flame retardancy and UV resistance, ensuring long-term service in indoor and outdoor power and piping environments. With a dielectric strength above 10 kV/mm and tensile strength above 100 MPa, the product firmly secures three-core power cables. Its smooth and non-conductive surface improves installation safety and avoids electrical risks during operation.

Features, Application and Installation

This FRP trefoil clamp features a non-conductive and smooth surface, suitable for standard installation requirements in electrical and piping industries. It supports bolt and screw mounting methods and fits various installation bases such as cable trays and support structures. The clamp covers cable diameters from 35mm to 120mm.

The product adapts to both indoor and outdoor working conditions and maintains stable performance under normal temperature changes and harsh environmental conditions.

1.Suitable for use with cable diameters 30 to 160 mm.
2.Manufactured from Aluminium alloy.
3.Two -piece, two fixing design.
4.Operating temperature -60°C to +105°C.
5.Suitable for LV & HV cables.
6.Can be used for all types of cable routes.
7.Plain finish for normal industrial areas or indoor application.
8.Epoxy coated version available for harsh environments/outdoor.
9.Optional Neoprene & EPDM liner available.
10.In accordance with ISO

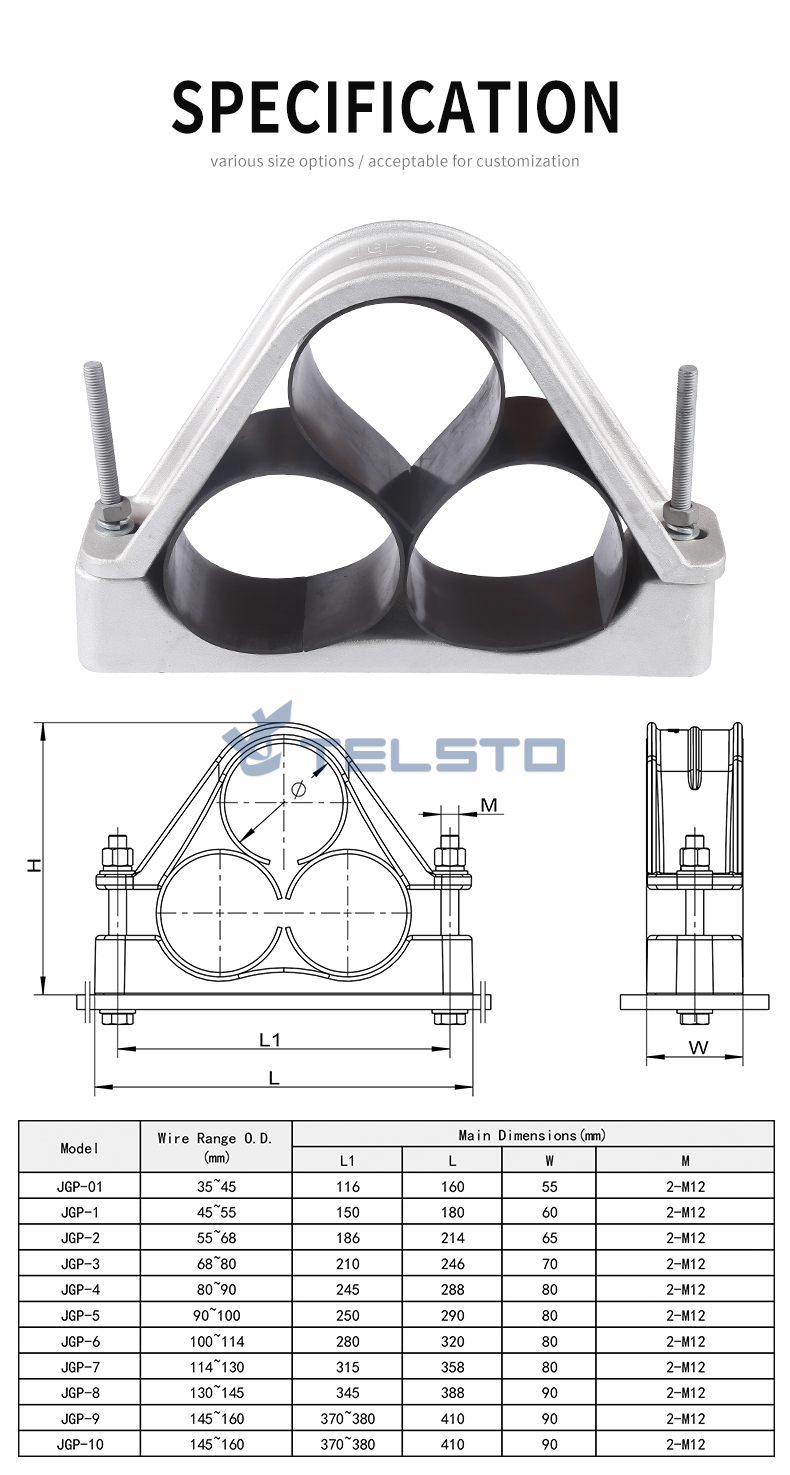

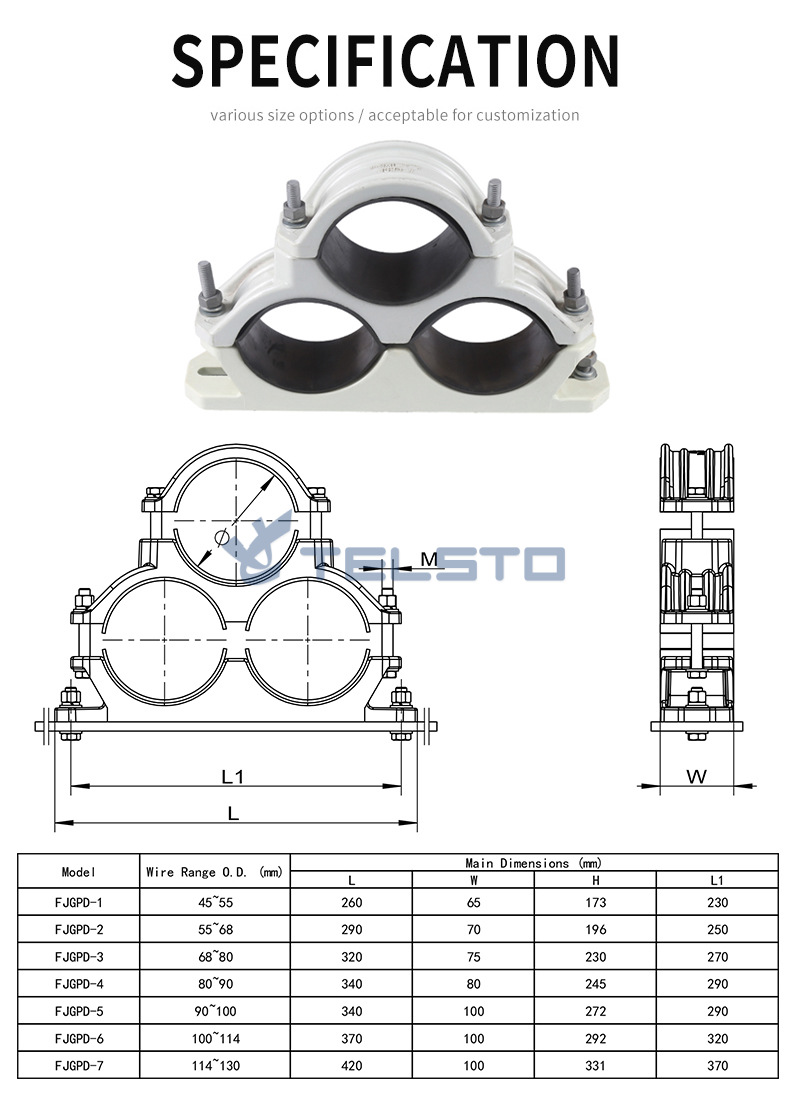

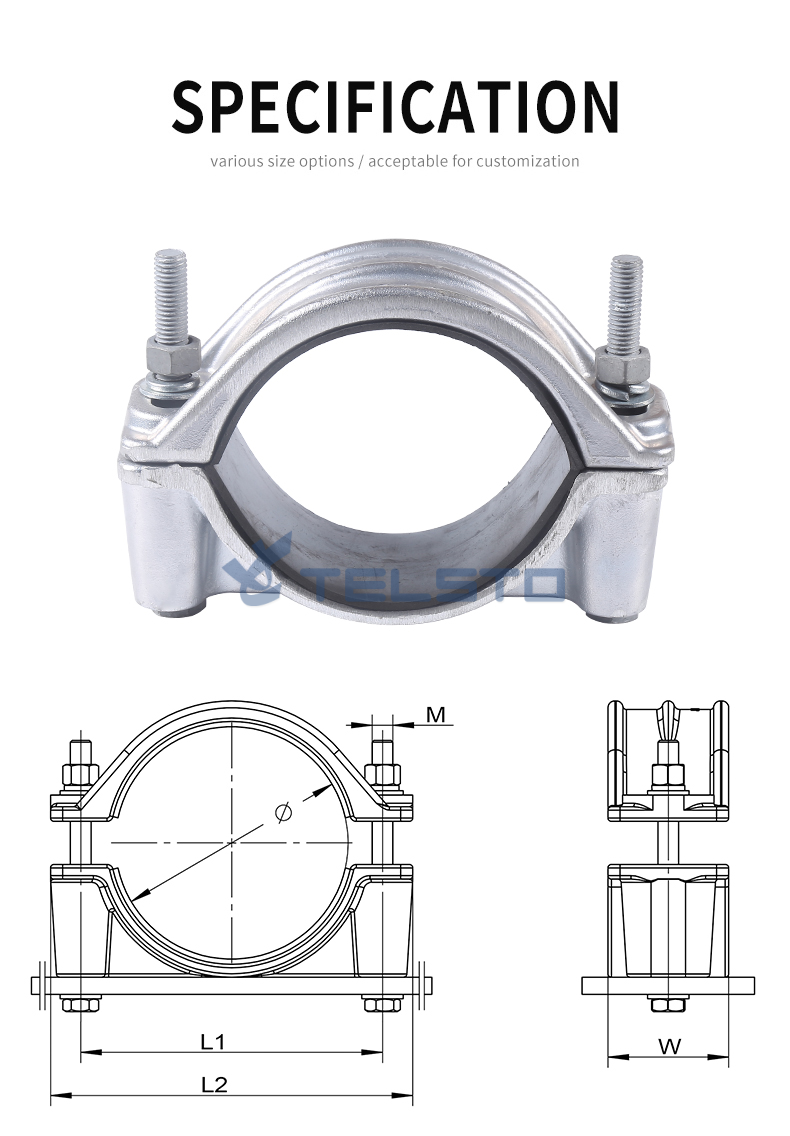

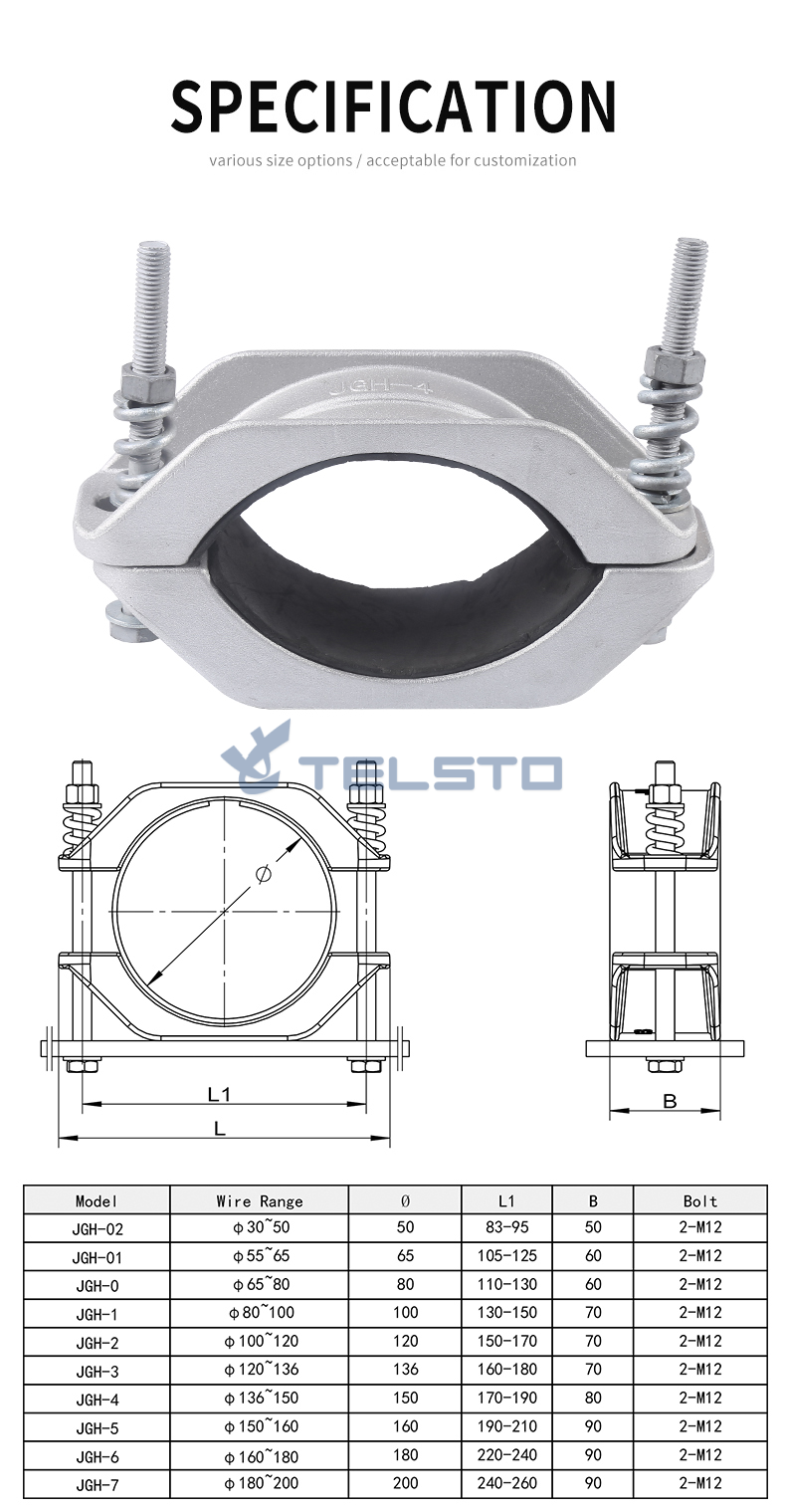

Products & Design
Packaging & shipping
FAQs
Q: How do the cable cleats ensure stable cable fixing?
A: Featuring optimized single and trefoil clamping structures and premium aluminum / FRP materials, the cleats provide strong, uniform clamping force to fix power cables firmly. They effectively resist vibration, mechanical impact, corrosion and UV exposure, ensuring safe and stable long-term operation.
Q: What are the main application scenarios?
A: Suitable for indoor and outdoor cable fixing, widely applied in substations, power plants, cable tunnels, industrial electrical engineering and municipal power distribution projects.
Q: Where can the cleats be installed?
A: They can be easily and securely installed on cable trays, cable channels, steel structures and mounting supports through standard bolt fastening.
Q: What are the advantages of Aluminum and FRP cable cleats?
A: Aluminum cleats offer high strength, toughness and lightweight performance. FRP cleats feature non-conductive, eddy-current-free, flame-retardant and anti-corrosion properties. Both types reduce later maintenance costs and perform far better than traditional ordinary metal clamps in harsh environments.
Telsto​ supplies trefoil cable cleats that have passed short-circuit testing in accordance with IEC 61914, and are available in multiple models and sizes to match different cable diameters and installation conditions. Explore the range and select the right specification for your project: Telsto Trefoil Cable Cleat / Trefoil Cable Clamp, FRP clamp, 35–150mm — enquiries and orders are welcome.
