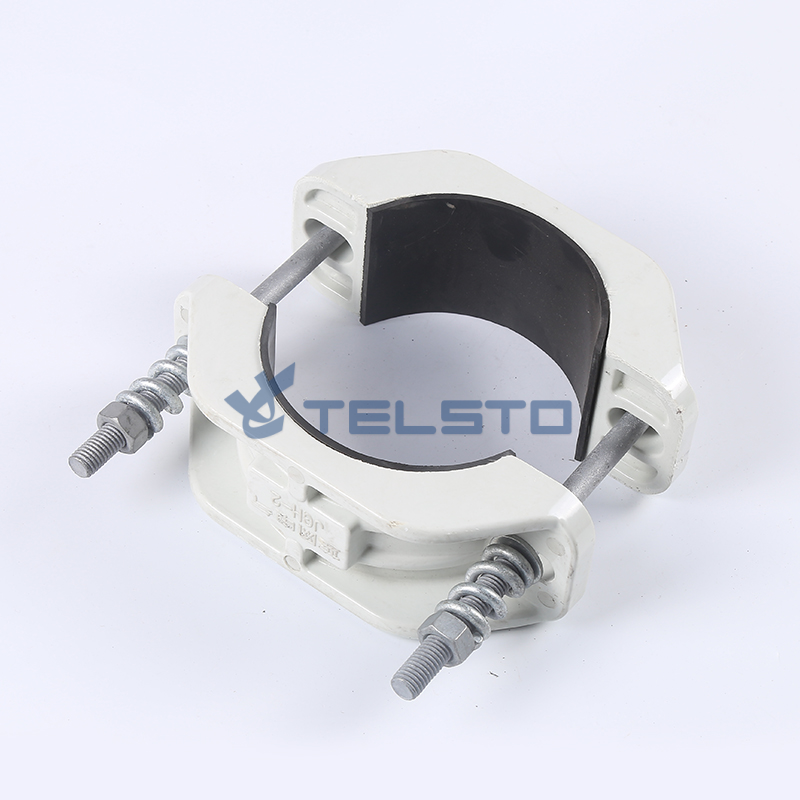

Cable Cleat for Single Cable Diameter 30-200mm

This single cable cleat is designed for stable fixing of single-core power cables with outer diameters from 30mm to 200mm. Made of high-strength FRP material, it features excellent insulation, flame retardancy, corrosion resistance and UV stability.
The optimized single-groove structure provides firm clamping force to prevent cable swinging and displacement. It effectively avoids eddy current loss for high-voltage single cable systems and resists short-circuit impact during operation. Suitable for indoor and outdoor power distribution, substations and cable tunnel projects.
Easy bolt-on installation on cable trays, brackets and structural supports. Multiple sizes cover 30–200mm cable diameters to meet different engineering requirements.

Place of Origin:China (Mainland)
Brand Name:Telsto
Shipment Method:Sea way, air way, DHL, UPS, FedEx, etc


Description

Cable Cleat for Single Cable Diameter

SMC (FiberglassReinforced Plastic) Construction: Durable and corrosionresistant for longterm service.

Available in multiple sizes to meet your specific requirements. Suitable for cable diameters ranging from 30 mm to 200 mm to ensure secure connections.

Highvoltage Application: Suitable for power distribution and substation installations.

Twopart construction enables easy installation.

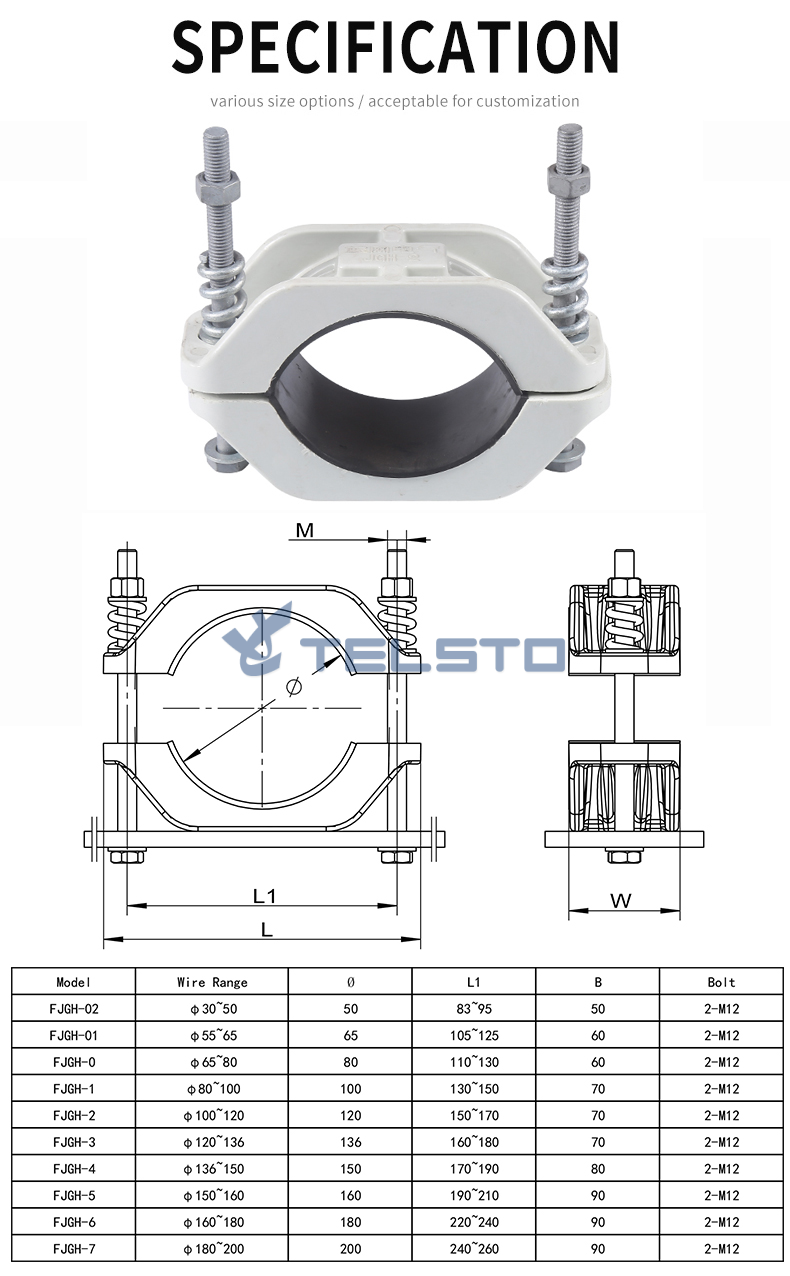

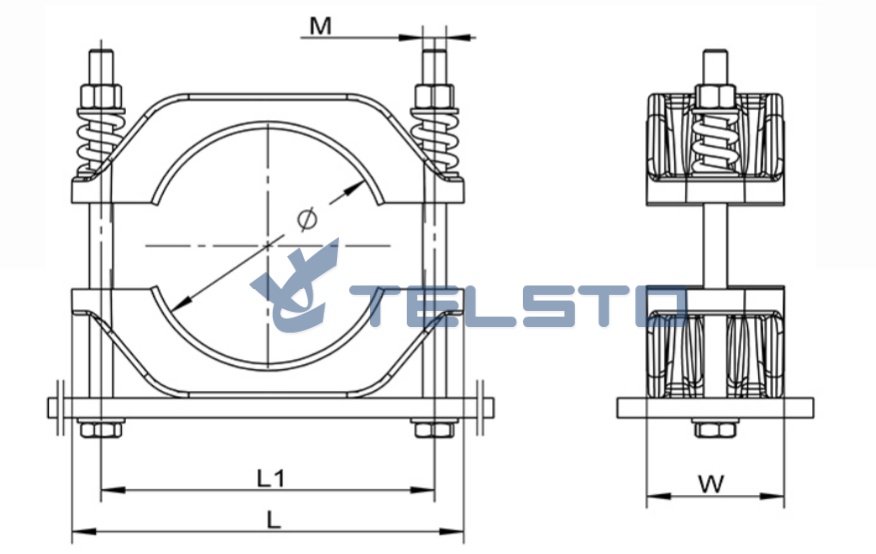

Model Wire Range Ø L1 B Bolt
FJGH-02 φ30~50 50 83~95 50 2-M12
FJGH-01 φ55~65 65 105~125 60 2-M12
FJGH-0 φ65~80 80 110~130 60 2-M12
FJGH-1 φ80~100 100 130~150 70 2-M12
FJGH-2 φ100~120 120 150~170 70 2-M12
FJGH-3 φ120~136 136 160~180 70 2-M12
FJGH-4 φ136~150 150 170~190 80 2-M12
FJGH-5 φ150~160 160 190~210 90 2-M12
FJGH-6 φ160~180 180 220~240 90 2-M12
FJGH-7 φ180~200 200 240~260 90 2-M12

FAQ

Q: How does the single cable cleat ensure stable fixing?
A: Adopting professional single-cable clamping structure and industrial FRP material, the cleat provides strong and stable clamping force to fix single-core cables firmly. It resists vibration, corrosion, UV exposure and flame spread for long-term safe operation.
Q: What are the application scenarios?
A: Widely used for indoor and outdoor fixing of single-core high voltage power cables, suitable for substations, cable tunnels, power plants and electrical engineering projects.
Q: Where can it be installed?
A: It can be securely mounted on cable trays, cable channels and steel supports via bolt fastening.
Q: What are the advantages of FRP single cable cleats?
A: FRP material is non-conductive and eddy-current-free, eliminating power loss for single cable systems. It is corrosion-proof, flame-retardant and maintenance-free compared with traditional metal clamps.
Telsto​ supplies trefoil cable cleats that have passed short-circuit testing in accordance with IEC 61914, and are available in multiple models and sizes to match different cable diameters and installation conditions. Explore the range and select the right specification for your project: Telsto Trefoil Cable Cleat / Trefoil Cable Clamp, FRP clamp, 35–150mm — enquiries and orders are welcome.
