Trefoil Cable Cleat Trefoil Cable Clamp Fiberglass 35-60mm

Cable cleats are used for fixing, supporting & securing cables and protecting cables from short circuit faults.
Trefoil cable cleats are suitable for installing three single core cables in trefoil formation, with double bolt fixing arrangement feature.
Suitable for cables in trefoil groups.

Suitable for cable OD: 35 mm‑60 mm
Material: GRP / Fiberglass reinforced plastic, non‑conductive
Excellent corrosion, UV and flame retardant performance
Bolt‑on mounting for cable tray & support bracket
Meets IEC 61914 standard, for LV/MV trefoil cable installation
Place of Origin:China (Mainland)
Brand Name:Telsto
Shipment Method:Sea way, air way, DHL, UPS, FedEx, etc

Send email to us

Description

Core Cable Clamp (JGP Series, Epoxy Coated Fiberglass Cable Clamp)

The material provides stable corrosion resistance, flame retardancy and UV resistance, ensuring long-term service in indoor and outdoor power and piping environments. With a dielectric strength above 10 kV/mm and tensile strength above 100 MPa, the product firmly secures three-core power cables. Its smooth and non-conductive surface improves installation safety and avoids electrical risks during operation.

Features, Application and Installation

This FRP trefoil clamp features a non-conductive and smooth surface, suitable for standard installation requirements in electrical and piping industries. It supports bolt and screw mounting methods and fits various installation bases such as cable trays and support structures. The clamp covers cable diameters from 35mm to 120mm.

The product adapts to both indoor and outdoor working conditions and maintains stable performance under normal temperature changes and harsh environmental conditions.

1. Three core integrated design

2. Epoxy coating for corrosion resistance

3. High strength, durable fiberglass body

4. Uniform and reliable clamping force

5. Protective insulating liner

6. Lightweight and easy to install

7. Broad application compatibility

Fiberglass Construction: Durable and corrosion resistant for long term service life.

Secure Fixing: Firmly secures cables to prevent damage and tangling.

Compact Design: Easy to install and organize cables in confined spaces.

Temperature Resistance: Efficiently operates within the range of -20°C to +60°C.

1.Optimized three‑core integrated design
2.Epoxy surface coating for outstanding anti‑corrosion performance
3.Robust high‑strength fiberglass main body for long‑term durability
4.Stable, uniform and reliable clamping force
5.Integrated protective insulating liner for enhanced safety
6.Light‑weight profile enables fast, convenient field installation
7.Excellent compatibility for diverse application scenarios

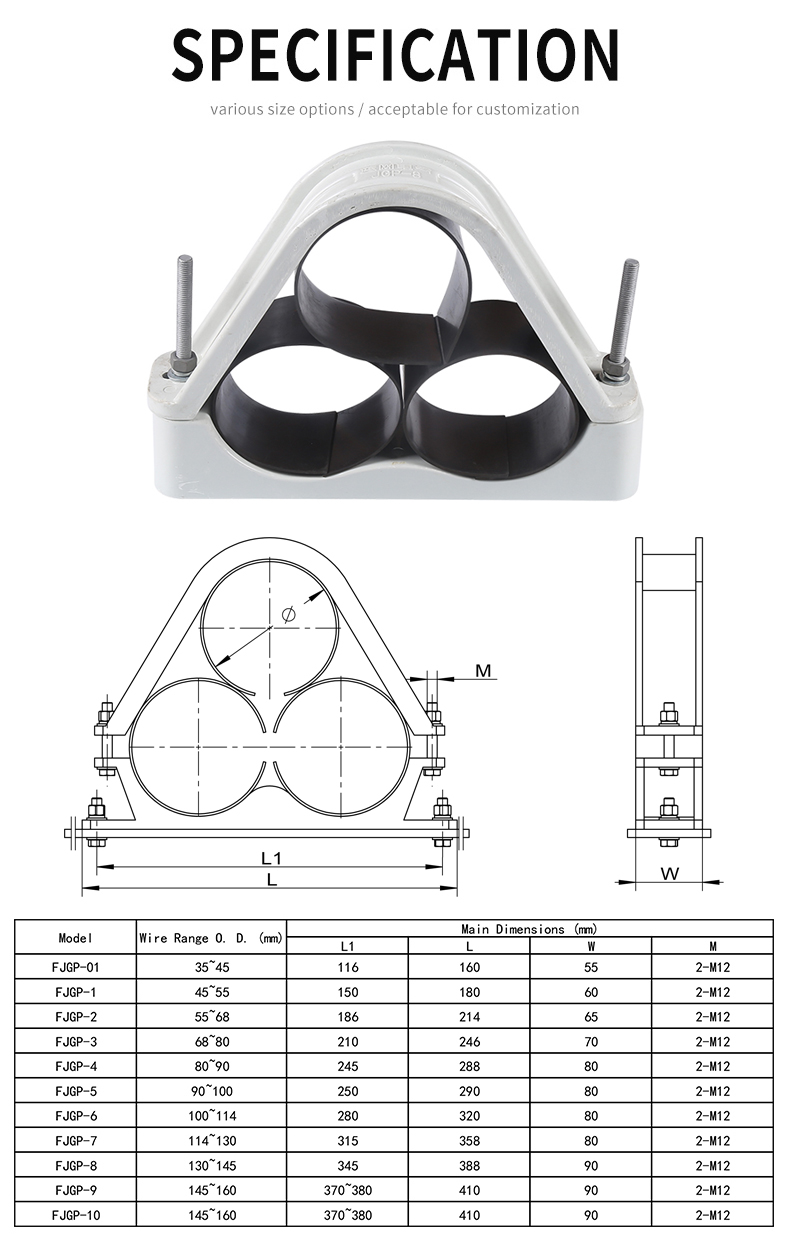

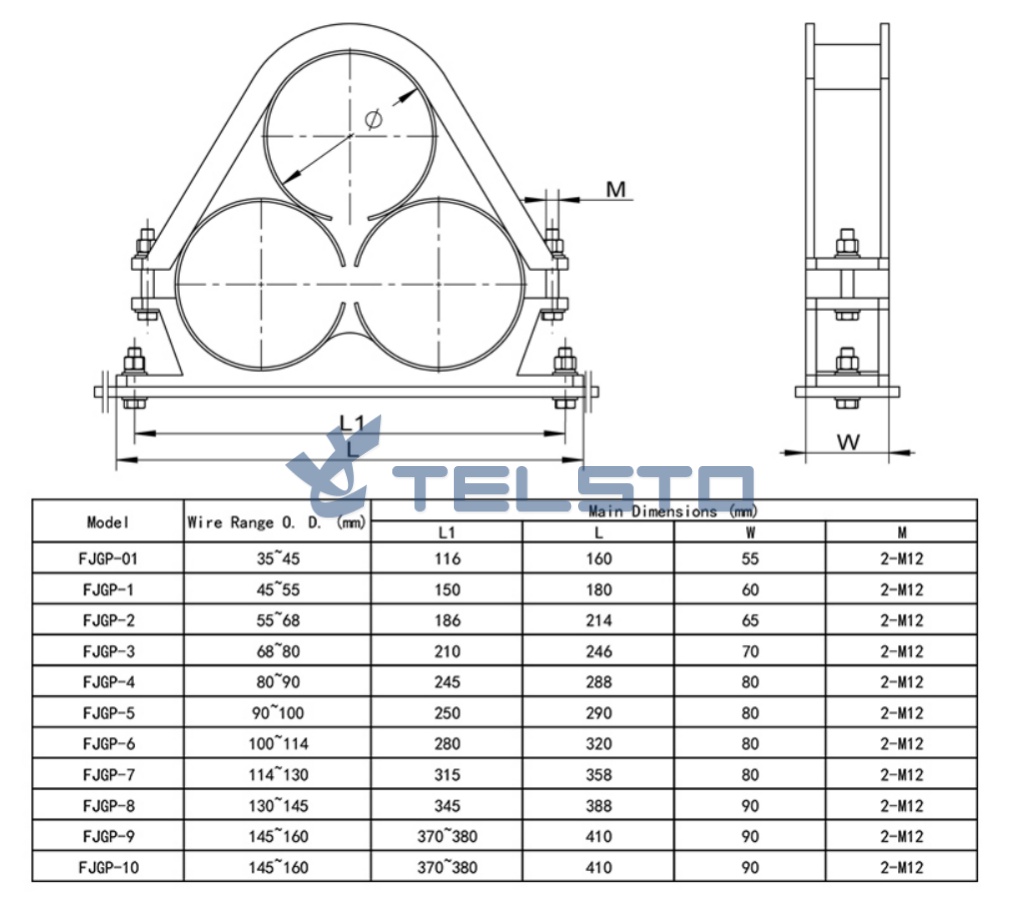

Product

Model	Wire Range O.D. (mm)	L1 (mm)	L (mm)	W (mm)	M (Bolt)
FJGP-01	35~45	116	160	55	2-M12
FJGP-1	45~55	150	180	60	2-M12
FJGP-2	55~68	186	214	65	2-M12
FJGP-3	68~80	210	246	70	2-M12
FJGP-4	80~90	245	288	80	2-M12
FJGP-5	90~100	250	290	80	2-M12
FJGP-6	100~114	280	320	80	2-M12
FJGP-7	114~130	315	358	80	2-M12
FJGP-8	130~145	345	388	90	2-M12
FJGP-9	145~160	370~380	410	90	2-M12
FJGP-10	145~160	370~380	410	90	2-M12

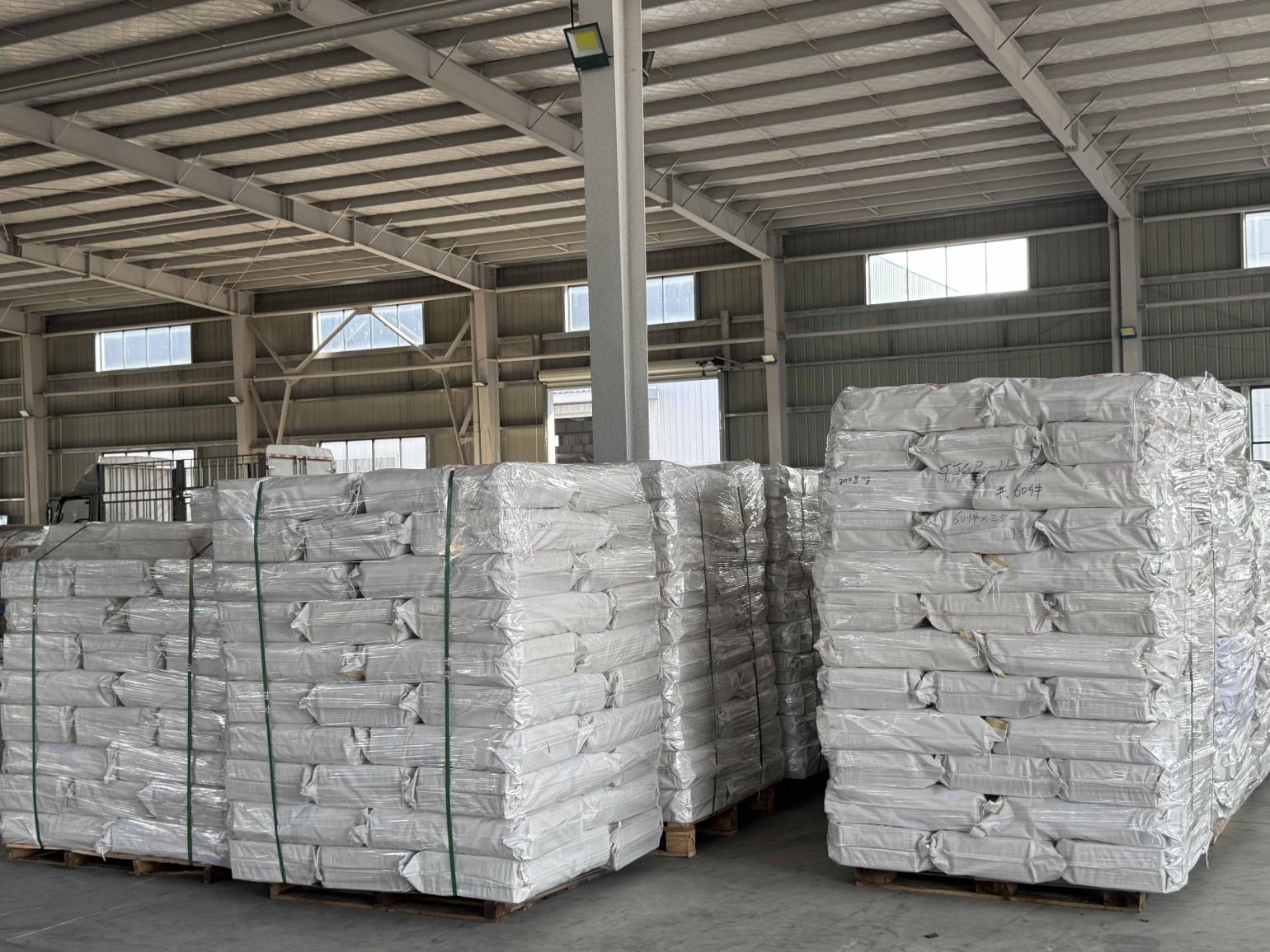

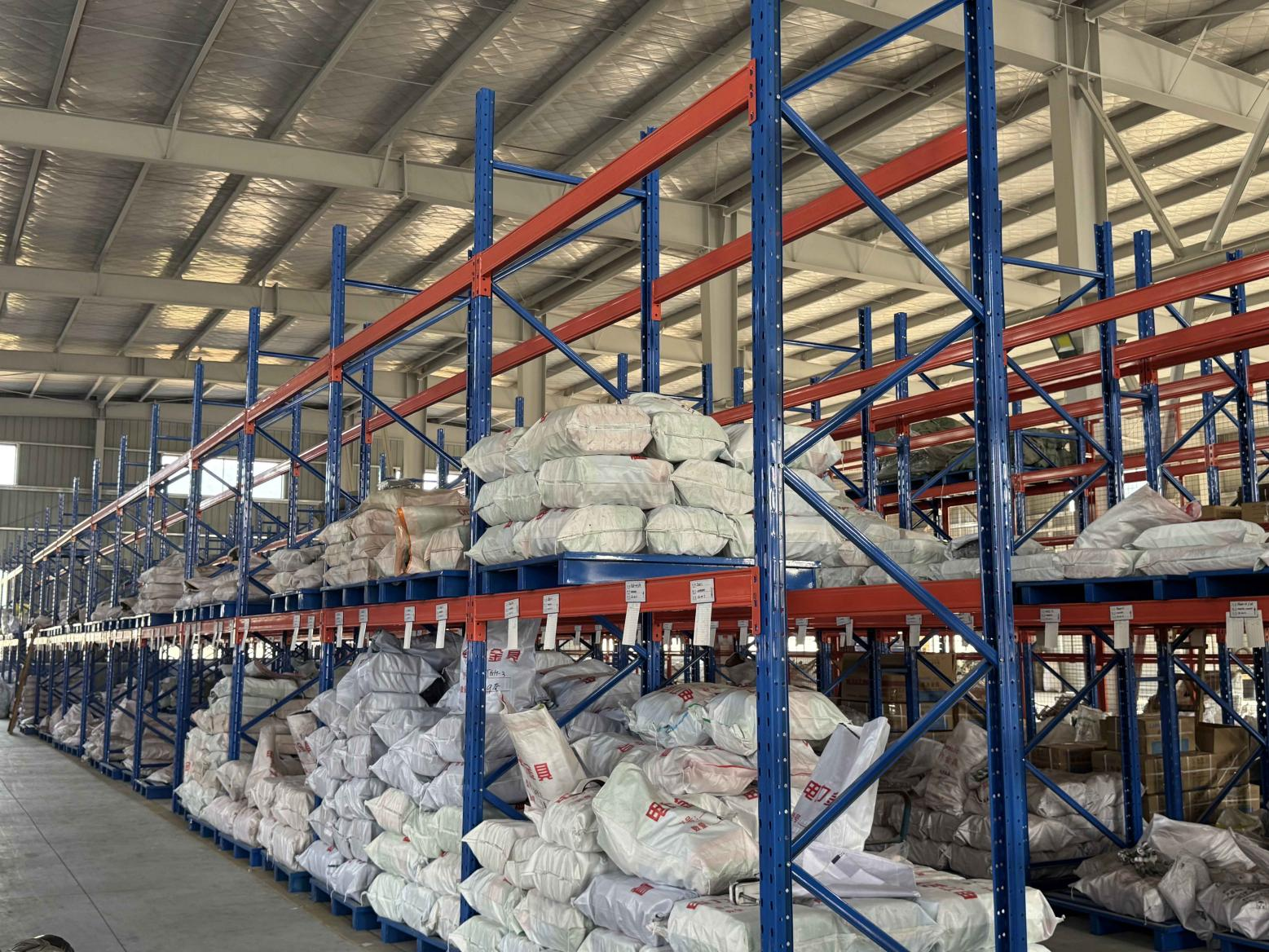

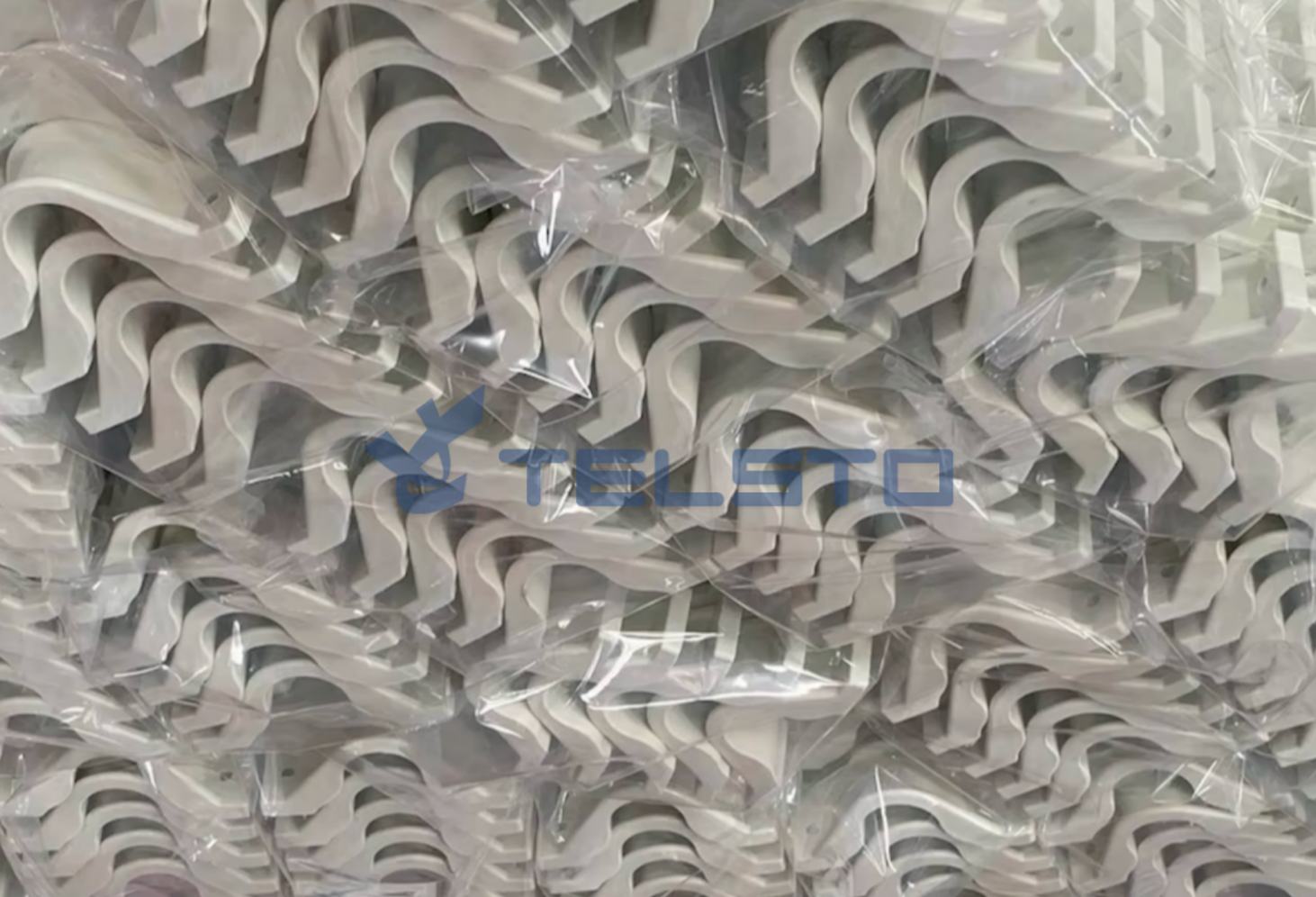

Packaging & shipping &Production

FAQs

Q: How does the FRP trefoil clamp ensure stable cable fixing?

A: Adopting a stable trefoil structural design and industrial FRP material, the clamp offers reliable tensile performance and insulation properties. It fixes three-core power cables steadily and resists corrosion, UV exposure and flame spread during long-term operation.

Q: What are the main application scenarios?

A: It is mainly used for indoor and outdoor fixing of power cables up to 33kV, applicable for electrical engineering and piping installation, especially for projects requiring high safety and environmental durability.

Q: Where can the clamp be installed?

A: It can be installed on cable trays, cable channels and structural supports via bolt or screw fastening according to on-site requirements.

Q: How to get samples before bulk purchase?

A: Customers can apply for samples through our sales team. Samples are provided for technical evaluation before formal order placement.

Q: What are the advantages of FRP clamps compared with metal clamps?

A: FRP material is non-conductive, corrosion-resistant and flame-retardant. It maintains stable performance under various environmental conditions and reduces later maintenance costs compared with traditional metal clamps.

Telsto supplies trefoil cable cleats that have passed short-circuit testing in accordance with IEC 61914, and are available in multiple models and sizes to match different cable diameters and installation conditions. Explore the range and select the right specification for your project: Telsto Trefoil Cable Cleat / Trefoil Cable Clamp, FRP clamp, 35–150mm — enquiries and orders are welcome.
