Self Locking PVC Coated 304 Stainless Steel High-Strength cable tie
Self Locking PVC Coated 304 Stainless Steel High-Strength cable tie

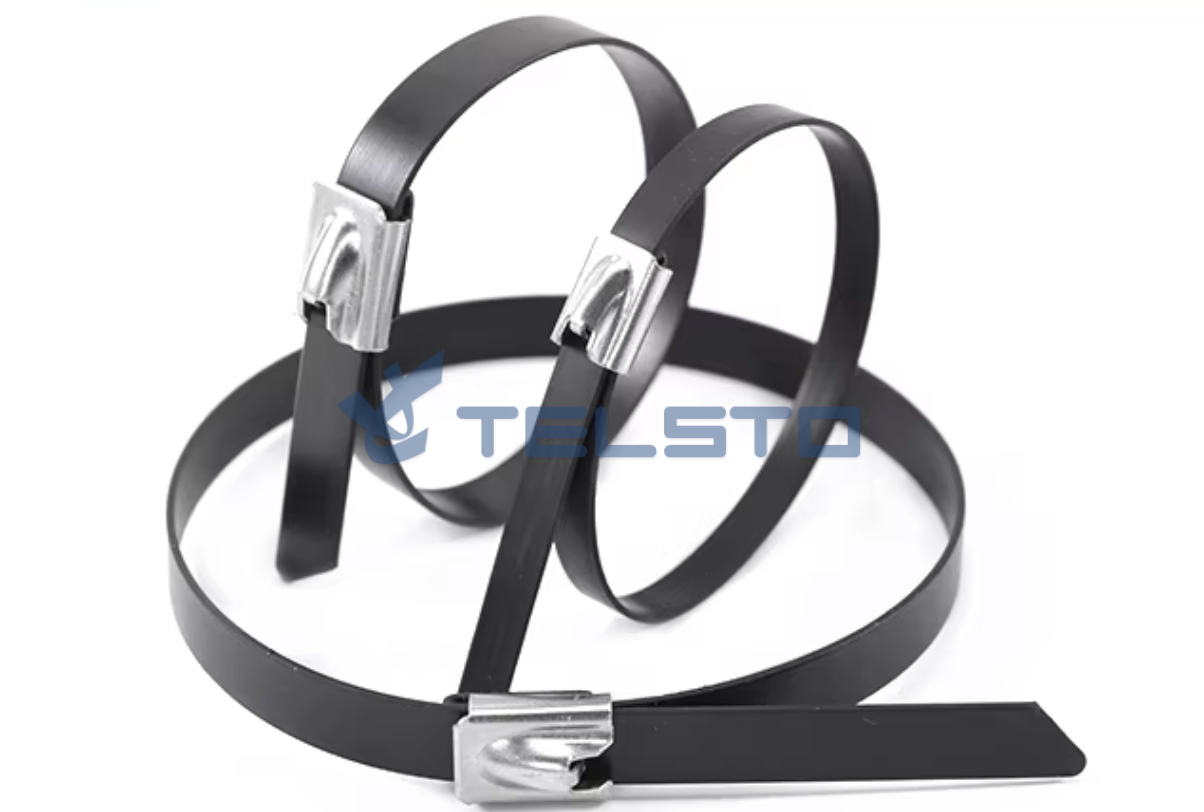

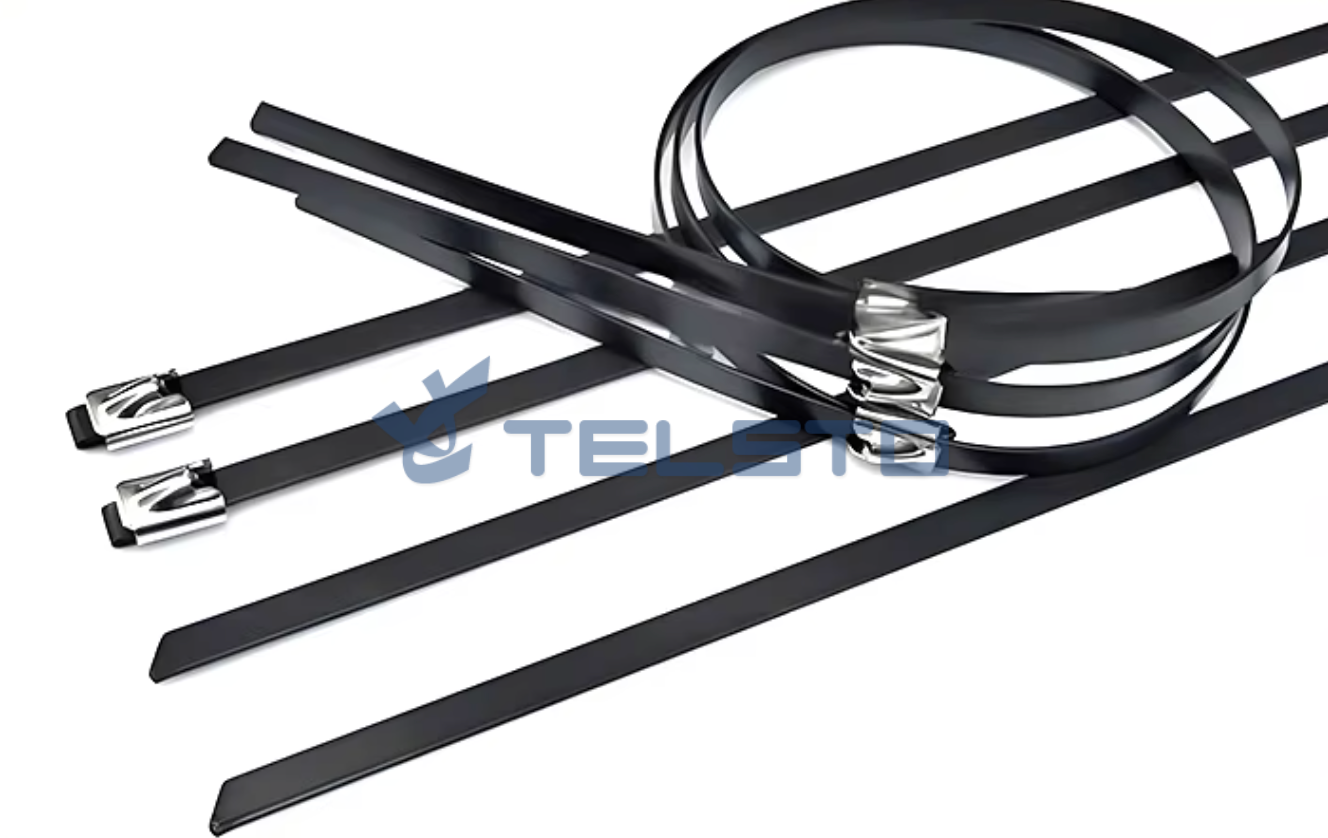

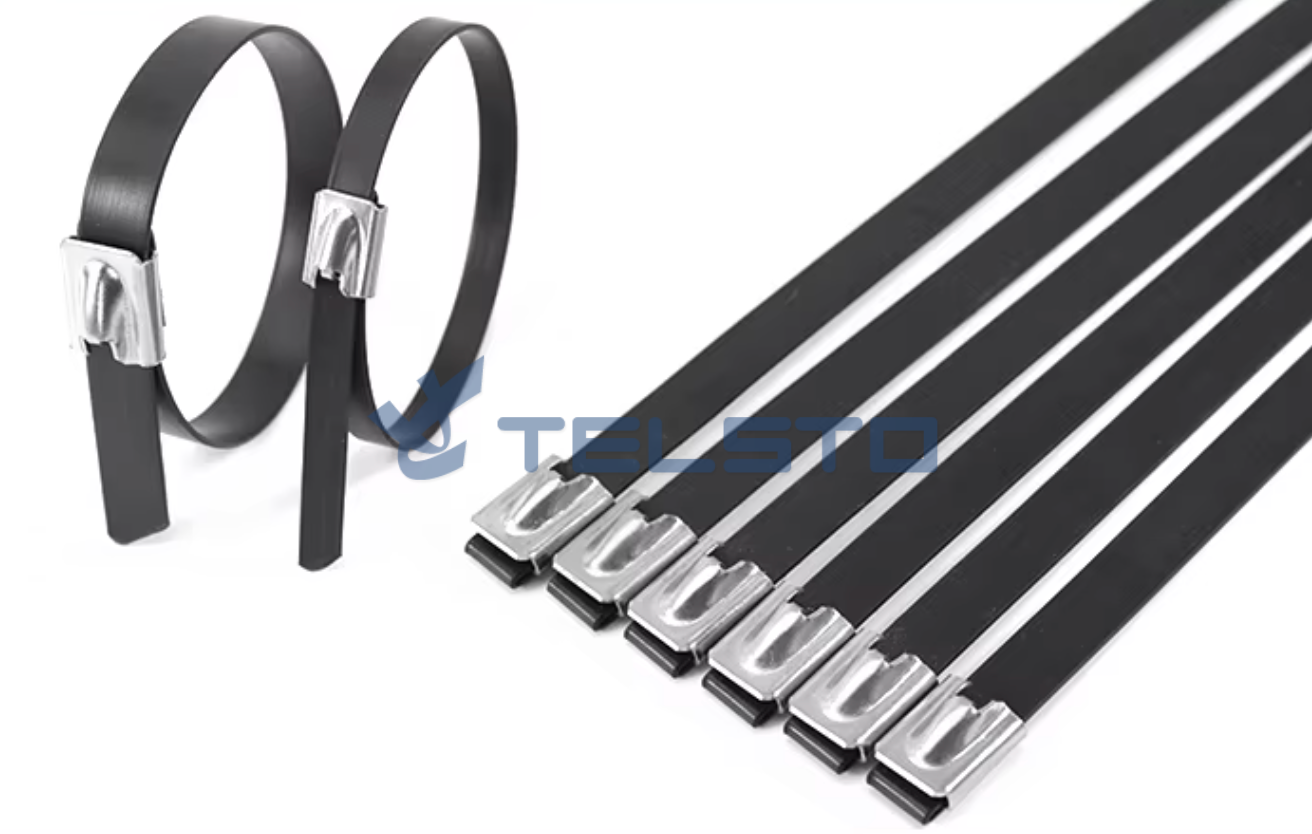

Self Locking PVC Coated 304 Stainless Steel Cable Ties
1. Meterial: Stainless Steel Grade304 or 316
2. Flammability Class: Fireproof
3. Work Temperature: -60-550℃
4. Characteristic: Used easily and quickly installed and undone
5. High resistance: to acetic acid ,alkali ,suiphuric acid, acorrod ect.
6. All length: are available
Production & Packing for shipment

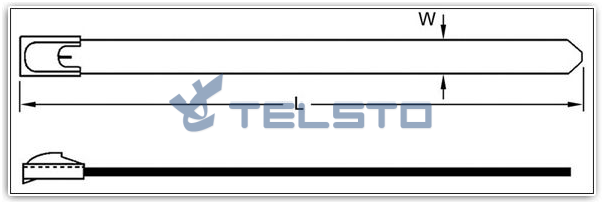

| Part No. | Length(L) | Width(W) | Bundle Diameter(E) | Tensile Strength | ||
|---|---|---|---|---|---|---|
| Inch | MM | MM | MM | N | LBS | |
| TEL-CTSC-4.6×150 | 5.9″ | 150 | 4.6 | 37 | 400 | 90 |
| TEL-CTSC-4.6X200 | 7.87″ | 200 | 50 | |||
| TEL-CTSC-4.6X250 | 9.84″ | 250 | 63 | |||
| TEL-CTSC-4.6X300 | 11.8″ | 300 | 76 | |||
| TEL-CTSC-4.6X350 | 13.78″ | 350 | 89 | |||
| TEL-CTSC-4.6X400 | 15.57″ | 400 | 102 | |||
| TEL-CTSC-4.6X450 | 17.72″ | 450 | 115 | |||
| TEL-CTSC-4.6X500 | 19.69″ | 500 | 128 | |||
| TEL-CTSC-4.6X550 | 21.65″ | 550 | 141 | |||
| TEL-CTSC-4.6X600 | 23.62″ | 600 | 154 | |||
| TEL-CTSC-4.6X750 | 29.52’’ | 750 | 178 | |||
| TEL-CTSC-4.6X900 | 35.4’’ | 900 | 229 | |||
| TEL-CTSC-7.9×150 | 5.9″ | 150 | 7.9 | 37 | 600 | 135 |
| TEL-CTSC-7.9×200 | 7.87″ | 200 | 50 | |||
| TEL-CTSC-7.9×250 | 9.84″ | 250 | 63 | |||
| TEL-CTSC-7.9×300 | 11.8″ | 300 | 76 | |||
| TEL-CTSC-7.9×350 | 13.78″ | 350 | 89 | |||
| TEL-CTSC-7.9×400 | 15.57″ | 400 | 102 | |||
| TEL-CTSC-7.9×450 | 17.72″ | 450 | 115 | |||
| TEL-CTSC-7.9×500 | 19.69″ | 500 | 128 | |||
| TEL-CTSC-7.9×550 | 21.65″ | 550 | 141 | |||
| TEL-CTSC-7.9×600 | 23.62″ | 600 | 154 | |||
| TEL-CTSC-7.9×650 | 25.59 | 650 | 167 | |||
| TEL-CTSC-7.9×700 | 27.56″ | 700 | 180 | |||
| TEL-CTSC-7.9×750 | 29.53″ | 750 | 193 | |||
| TEL-CTSC-7.9×800 | 31.5″ | 800 | 204 | |||
| TEL-CTSC-7.9×1000 | 39.4’’ | 1000 | 254 | |||
FAQs
Q. What benefits does the PVC coating provide?
A. The PVC coating acts as a full protective barrier. It provides excellent UV resistance to prevent aging, cracking and brittleness under long-term sunlight exposure. It is fully waterproof and moisture-proof to avoid loosening or degradation in rainy and humid conditions. In addition, the coating resists salt spray, oil, solvents and weak acids. The soft coating also prevents scratches on cables, hoses and painted equipment surfaces, and isolates dissimilar metals to avoid electrochemical corrosion.
Q. Will the PVC coating damage cables or equipment?
A. No. The PVC outer layer is smooth and flexible. Unlike bare metal ties, it will not cut or scratch cable jackets, soft hoses or painted surfaces during installation and long-term use. It provides safe, damage-free bundling protection.

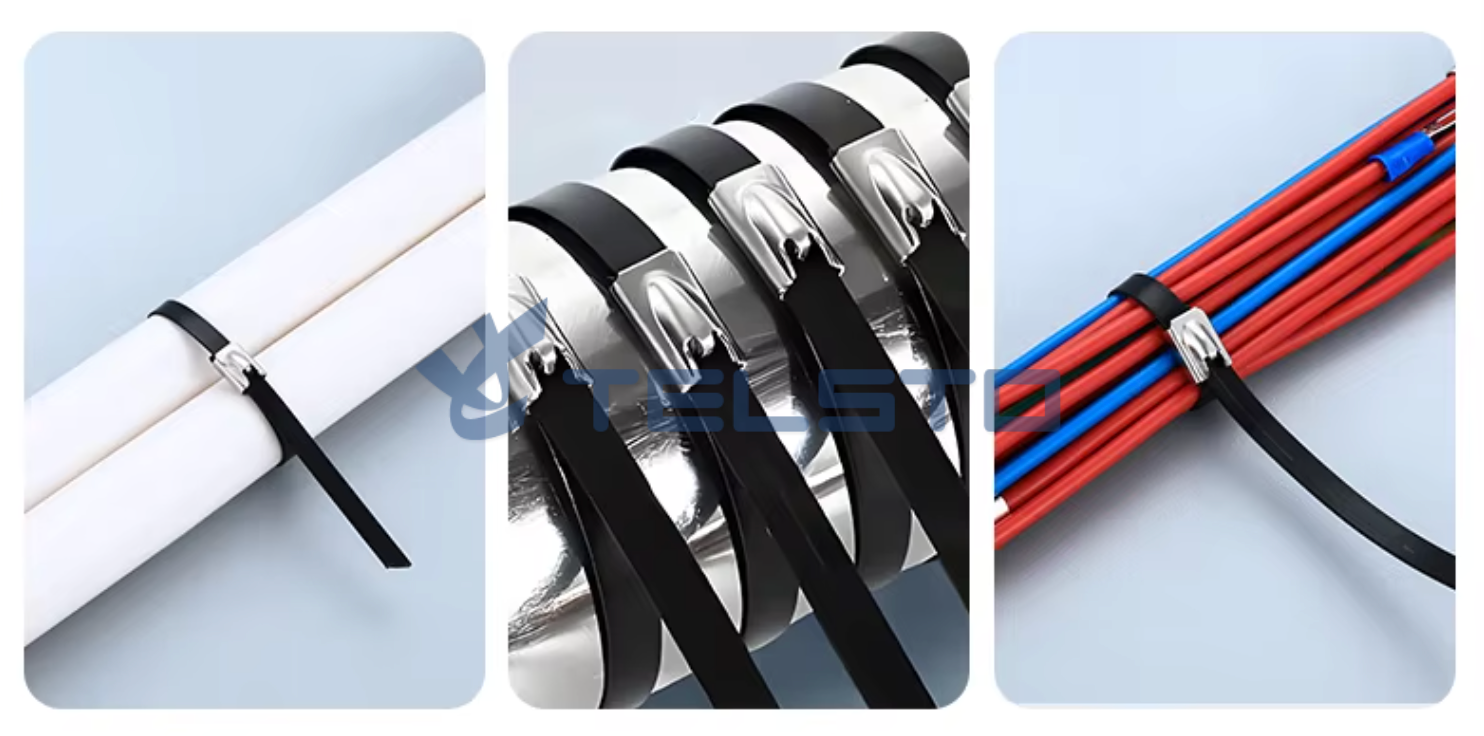

Q. What environments are PVC coated cable ties suitable for?
A. They are ideal for all harsh working conditions, including outdoor open-air installation, high rainfall and high humidity areas, industrial factories, chemical environments, coastal salt spray areas and marine engineering projects.
Q. How long is the service life compared with ordinary cable ties?
A. Standard nylon ties only last weeks to months outdoors. UV-stabilized nylon ties have a lifespan of about 5–7 years. PVC coated stainless steel cable ties achieve greatly extended service life, making them perfect for long-term and permanent outdoor engineering installations.
Q. Why are PVC coated stainless steel ties better for harsh outdoor use?
A. Ordinary nylon ties easily become brittle, crack and fail under UV and moisture exposure. PVC coated stainless steel ties adopt a dual protection solution: the stainless steel core provides super mechanical strength, and the PVC coating provides full anti-UV, waterproof, anti-rust and anti-chemical protection. It solves all common failure problems of traditional nylon ties in harsh environments.
