Self-Locking Metal Zip Tie 304 316 Ball Lock PVC Coated Stainless Steel Cable Tie for Solar Panels

Telsto ball-locking PVC coated Stainless Steel Wire Cable Tie is most popular type which are made from high quality steel material, having the characters such as heat-resisting, erosion control, insulate well, fireproof and not apt to age.
—Ideal for use on small leads or objects

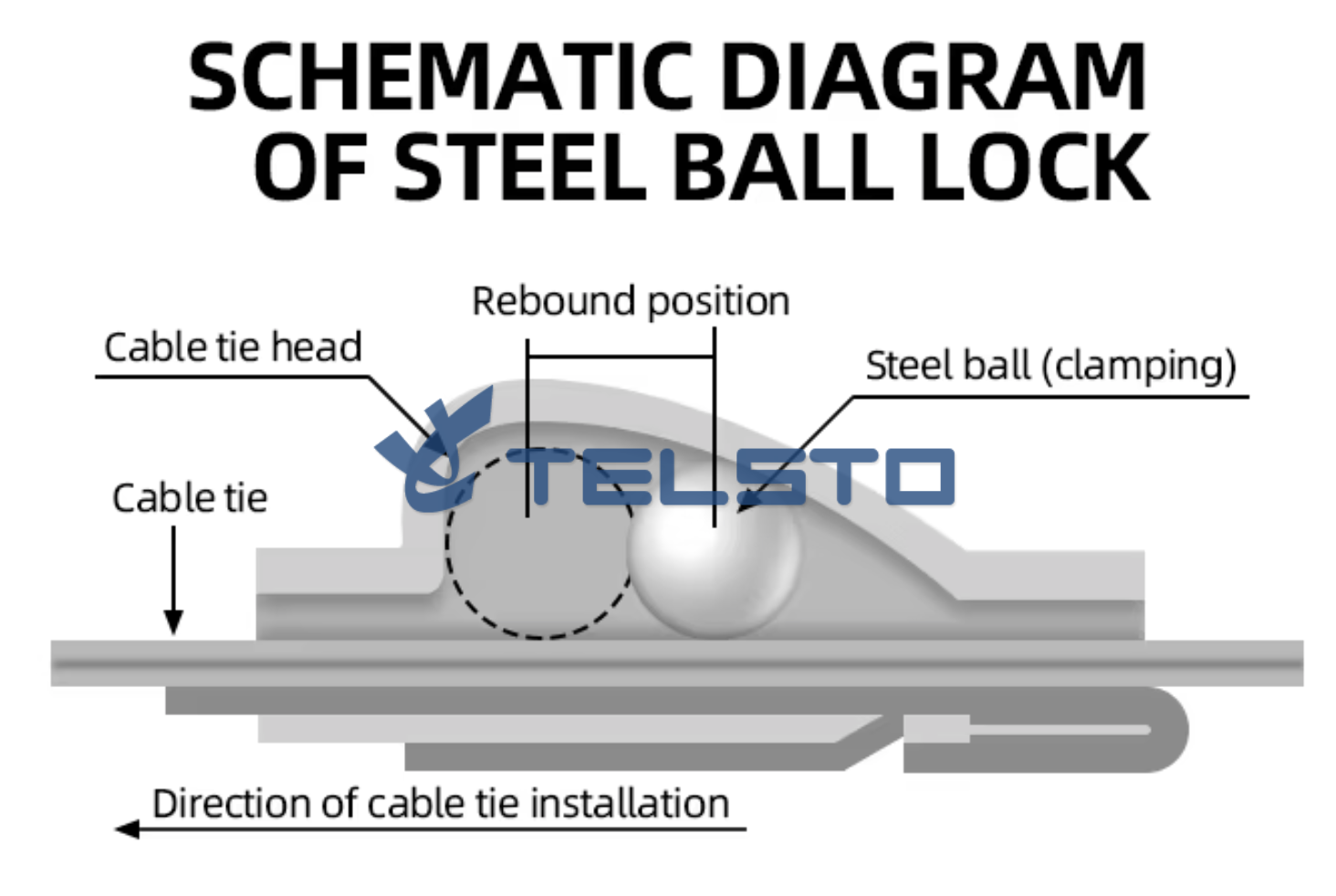

—Structure: Self locking, ball bearing mechanism for quick and easy installation, either by hand
—High resistance to acetic acid, alkali acid, suiphuric acid, etc.

FOB Price: US $0.5 - 9,999 / Piece

Min.Order Quantity: 100 Piece/Pieces

Supply Ability: 10000 Piece/Pieces per Month

Send email to us

Description

Self-Locking Metal Zip Tie 304 316 Ball Lock PVC Coated Stainless Steel Cable Tie for Solar Panels

Features, Application and Installation
Effective bird & pest protection Prevents birds, pigeons, and rodents from nesting under solar panels, avoiding damage and mess.Durable & long-lasting material Made from galvanized steel or stainless steel with PVC coating for excellent corrosion and weather resistance.

UV-resistant & weatherproof Designed to withstand strong sunlight, rain, wind, and long-term outdoor exposure.

Easy and fast installation Installed with clips no drilling, no damage to solar panels or roof structure.

Strong but flexible structure Maintains shape while adapting to different roof and panel designs.

Clean & professional appearance Neat black finish blends well with solar panels and improves overall roof aesthetics.

Low maintenance solution Once installed, it requires little to no maintenance and provides long-term protection.

Cost-effective protection Prevents expensive panel damage, cable issues, and repeated pest removal costs.

Production & Packing for shipment

Self-Locking Metal Zip Tie 304 316 Ball Lock PVC Coated Stainless Steel Cable Tie for Solar Panels 主图1

Self-Locking Metal Zip Tie 304 316 Ball Lock PVC Coated Stainless Steel Cable Tie for Solar Panels 主图2

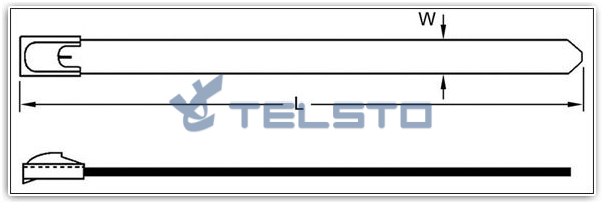

Part No.	Length(L)		Width(W)	Bundle Diameter(E)	Tensile Strength
Part No.	Inch	MM	MM	MM	N	LBS
TEL-CTSC-4.6x150	5.9“	150	4.6	37	400	90
TEL-CTSC-4.6X200	7.87“	200		50
TEL-CTSC-4.6X250	9.84“	250		63
TEL-CTSC-4.6X300	11.8“	300		76
TEL-CTSC-4.6X350	13.78“	350		89
TEL-CTSC-4.6X400	15.57“	400		102
TEL-CTSC-4.6X450	17.72“	450		115
TEL-CTSC-4.6X500	19.69“	500		128
TEL-CTSC-4.6X550	21.65“	550		141
TEL-CTSC-4.6X600	23.62“	600		154
TEL-CTSC-4.6X750	29.52’’	750		178
TEL-CTSC-4.6X900	35.4’’	900		229
TEL-CTSC-7.9x150	5.9“	150	7.9	37	600	135
TEL-CTSC-7.9x200	7.87“	200		50
TEL-CTSC-7.9x250	9.84“	250		63
TEL-CTSC-7.9x300	11.8“	300		76
TEL-CTSC-7.9x350	13.78“	350		89
TEL-CTSC-7.9x400	15.57“	400		102
TEL-CTSC-7.9x450	17.72“	450		115
TEL-CTSC-7.9x500	19.69“	500		128
TEL-CTSC-7.9x550	21.65“	550		141
TEL-CTSC-7.9x600	23.62“	600		154
TEL-CTSC-7.9x650	25.59	650		167
TEL-CTSC-7.9x700	27.56“	700		180
TEL-CTSC-7.9x750	29.53“	750		193
TEL-CTSC-7.9x800	31.5“	800		204
TEL-CTSC-7.9x1000	39.4’’	1000		254

Self-Locking Metal Zip Tie 304 316 Ball Lock PVC Coated Stainless Steel Cable Tie for Solar Panels 详情图1

Self-Locking Metal Zip Tie 304 316 Ball Lock PVC Coated Stainless Steel Cable Tie for Solar Panels 详情图2

Self-Locking Metal Zip Tie 304 316 Ball Lock PVC Coated Stainless Steel Cable Tie for Solar Panels 详情图3

Self-Locking Metal Zip Tie 304 316 Ball Lock PVC Coated Stainless Steel Cable Tie for Solar Panels 详情图4

Self-Locking Metal Zip Tie 304 316 Ball Lock PVC Coated Stainless Steel Cable Tie for Solar Panels 包装图

FAQs

Q. What benefits does the PVC coating provide?

A. The PVC coating acts as a full protective barrier. It provides excellent UV resistance to prevent aging, cracking and brittleness under long-term sunlight exposure. It is fully waterproof and moisture-proof to avoid loosening or degradation in rainy and humid conditions. In addition, the coating resists salt spray, oil, solvents and weak acids. The soft coating also prevents scratches on cables, hoses and painted equipment surfaces, and isolates dissimilar metals to avoid electrochemical corrosion.

Q. Will the PVC coating damage cables or equipment?

A. No. The PVC outer layer is smooth and flexible. Unlike bare metal ties, it will not cut or scratch cable jackets, soft hoses or painted surfaces during installation and long-term use. It provides safe, damage-free bundling protection.

Q. What environments are PVC coated cable ties suitable for?

A. They are ideal for all harsh working conditions, including outdoor open-air installation, high rainfall and high humidity areas, industrial factories, chemical environments, coastal salt spray areas and marine engineering projects.

Q. How long is the service life compared with ordinary cable ties?

A. Standard nylon ties only last weeks to months outdoors. UV-stabilized nylon ties have a lifespan of about 5–7 years. PVC coated stainless steel cable ties achieve greatly extended service life, making them perfect for long-term and permanent outdoor engineering installations.

Q. Why are PVC coated stainless steel ties better for harsh outdoor use?

A. Ordinary nylon ties easily become brittle, crack and fail under UV and moisture exposure. PVC coated stainless steel ties adopt a dual protection solution: the stainless steel core provides super mechanical strength, and the PVC coating provides full anti-UV, waterproof, anti-rust and anti-chemical protection. It solves all common failure problems of traditional nylon ties in harsh environments.
