Weather shield 12 for 114

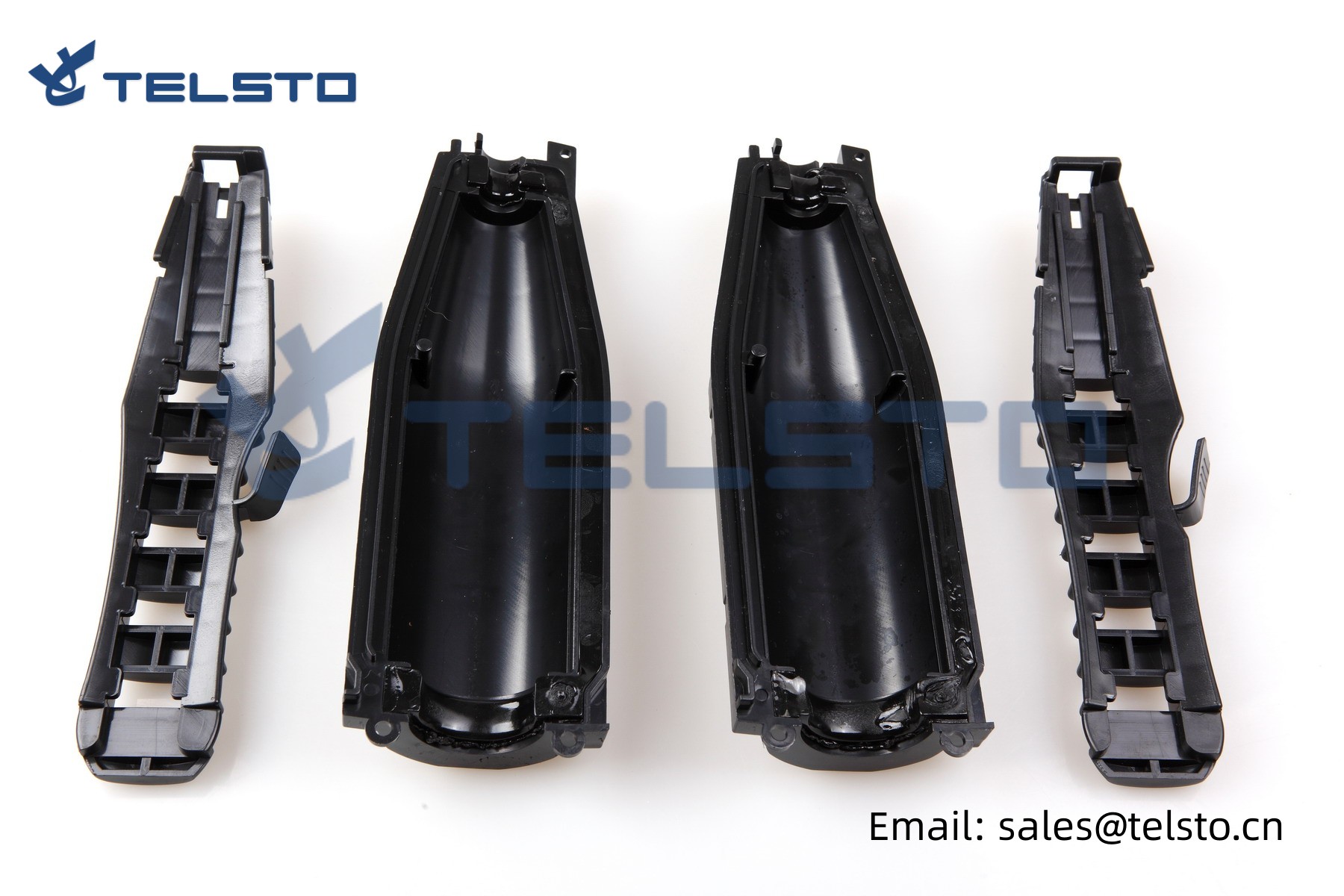

Telsto series weatherproofing enclosure/weatherproof enclosure is a new kind of weatherproofing solutions designed to protect RF connections at wireless communication towers, for instance, 2G, 3G or 4G cell sites where RF connections are getting denser than ever before and the traditional weatherproofing solutions, tapes and mastic are difficult to use in such crowded places.
Telsto series closures are re-enter able, reusable and tool-less, making it time-saving, cost-effective and installer-friendly weatherproofing solution for the mobile base stations industry. Telsto closures find typical applications in covering RF connections on both antennas and RRU(Remote Radio Unit), splice in-line connections, grounding transition etc.
Sealing properties of the gel provide a reliable protection over a wide temperature range (-40°C/+ 70°C)
Wraparound and no disconnection of the connector
Quick and easy to install
Easy removable and re-usable
Gel material provides an effective barrier against ingress of water and other contaminant's - IP rating 68
No tape, no mastics or tools required for installation and removal
| Gel Seal Closure | |
| Model | TEL-GE-1/2-1-1/4 |
| Function | Gel Seal Closure for 1/2"jumper to 1-1/4"feeder |
| Material | PC+SEBS |
| Size | L198mm,W79mm,H56mm |
| Input | 1/2"jumper(13-17mm) |
| Output | 1-1/4"feeder(26-32mm) |
| Net Weight | 275g |
| Life/duration | More than 10 years |
| Corrosion and ultraviolet resistance | H2S,passed ultraviolet test |
| Ice-snow resistance | up to 100mm,no water leakage, no shape change |
| Waterproof level | IP68 |
| Fireproof level | HB |
| Rainstorm resistance | 100E 150mm/h |
