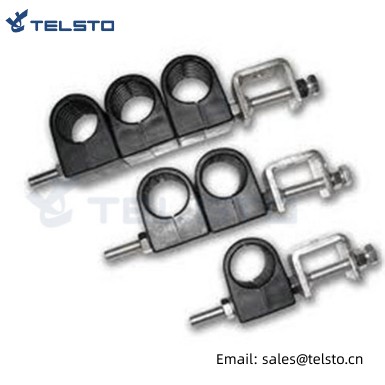

Wire Base Station Feeder Cable Clamp for Cell Tower


  • Place of Origin: Shanghai, China (Mainland)
  • Brand Name: Telsto
  • Product name: Cable Fixing Clip
  • Material: Stainless Steel/rubber
  • Application: To fix optical cable
  • MOQ: 100 pcs
  • Lead time: Within 5-10days after the deposit received and the sample approved
  • Payment terms: T/T or L/C, 30% deposit T/T, and the balance against copy of B/L
  • Sample time: 1-3 days
  • Port: Shanghai
  • Description

    Feeder clamp is widely used in site installation to fix coaxial feeder cables to base towers, these clamps provide an efficient way of managing & securing the feeder installation system. The Clamps are manufactured out of UV resistant material. The design offers least stress and maximum grip to manage the cable system. They are strictly made out of non-rusting product to sustain all weather conditions. The material of these products is high standard stainless steel and high quality PP/ABS.

    *Various stainless steel feeder clamps are applicable for fixing feeders.

    *Made of high quality anti-acid steel.

    *Modified plastics and non-rusting under any weather conditions.

    Wire Base Station Feeder Cable Clamp for Cell Tower
    Unite Price Base on FOB Shanghai and base on quantity Material 304 stainless steel/rubber/PP
    Feature Durability/Quick & easy installation/UV & weather Resistance MOQ Flexible
    Sample Time 1-3 Days Delivery Time 5-10 days
    Payment Terms T/T; L/C; Western Union Not reach MOQ Also welcome contact us, we can discuss & resolve it.

    Feeder Cable Clamp

    Part Name Spec Quantity Note
    Screw M8 1pcs SUS304
    Nut M8 3pcs SUS304
    Washer Φ8 2pcs SUS304
    Spring Washer Φ8 1pcs PP
    Clamping Piece 14mm 6pcs SUS304
    Angle Adaptor 40x33x4.6 1pcs SUS304
    Gasket Φ20 1pcs SUS304
    Bolt M8x40 1pcs SUS304



    Capability Index

    1. high temperature: +75℃;

    2. low temperature: -40℃;

    3. salt spray test: 48h,No Rustiness.

    Packaging Details

    Feeder Cable Clamp: 1 pc wrapped in plastic bag + standard export carton.

    Delivery Time:Shipped in 3 days after payment

    Features/Benefits:

    1. Single multi blocks are manufactured of polypropylene providing thermal, chemical and UV resistance in all environments.

    2. It is including angle member adapter and necessary hard wares.

    3. The angle member adapter fastens the clamp to the tower without drilling.

    4. The angle member adapter includes a tower member set screw.

    5. The hanger mounting rod may be located in either of two mounting holes, depending on orientation the fixing member.
