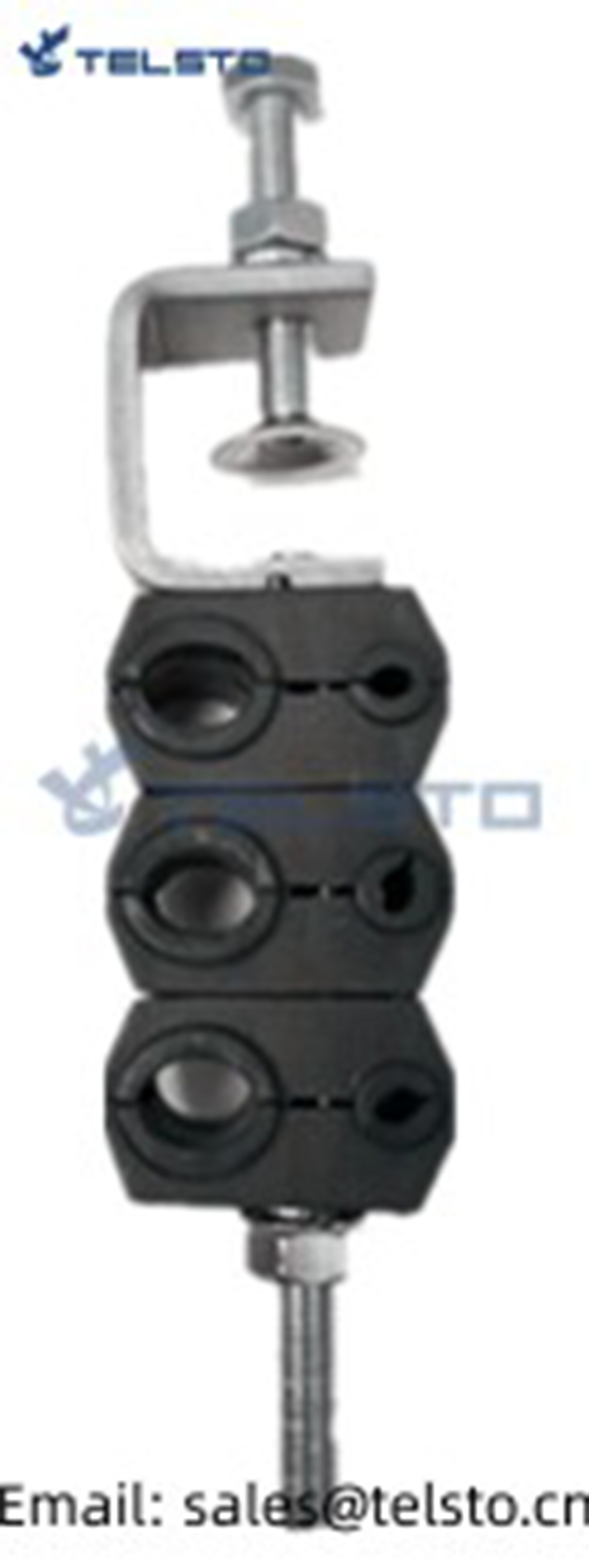

Cable clamp for fiber optical cable(FO) 4-7mm and power cable(DC)
The Clamps are manufactured out of UV resistant material. The design offers least stress and maximum grip to manage the cable system. They are strictly made out of non-rusting product to sustain all weather conditions. The material of these products is high standard stainless steel and high-quality PP/ABS.
Telsto optic fiber clamps are used to fix power cable and fiber optical cable at the same time. It’s available for power cable: 10-14mm, Optic fiber cable: 4-7mm. It can fix three fiber cables and three power cables. The C-shape bracket and pressing board are compact and terse. It is simple to fix the cables reliably.
Features/Benefits
● Customized products
● High quality materials
● Total fastening
| Technical Specifications | |||||||
| Product Type | Optic Fiber Clamp | ||||||
| Hanger Type | Double Multi-block | ||||||
| Cable Type | Power Cable, Fiber Cable | ||||||
| Power Cable Size | 4-7mm Optical Fiber Cable, 10-14mm Power Cable | ||||||
| Holes/Runs | 2 per layer, 3 layers, 6 runs | ||||||
| Configuration | Angle member adapter | ||||||
| Thread | 2x M8 | ||||||
| Material | Metal part: 304SS | ||||||
| Plastic parts: PP | |||||||
| Pipe parts: Rubber | |||||||
| Consist of : | |||||||
| Angle adapter | 1pc | ||||||
| Thread | 2pcs | ||||||
| Bolts & nuts | 2sets | ||||||
| Plastic saddles | 6pcs | ||||||
| Operation Temperature | -40℃-85℃ | ||||||
| Inner Packing | 5pcs/bag | ||||||
| Outer Packing | Standard exporting carton with pallet | ||||||
Gold Supplier Cable Fixing Clip, Feeder Clamp
Feeder clamp is widely used in site installation to fix coaxial feeder cables to base towers, these clamps provide an efficient way of managing & securing the feeder installation system.
| Unit Price | Base on FOB and base on quantity | Material | 304 stainless steel/rubber/PP |
| Feature | Durability/Quick & easy installation/UV & weather Resistance | MOQ | 100pcs |
| Sample Time | 1-3 Days | Delivery Time | 5-10 days |
| Payment Terms | T/T; L/C; Western Union; PayPal |
Cable Fixing Clip Com positive List:
| Part Name | Spec | Quantity | Note |
| Screw | M8 | 1pcs | SUS304 |
| Nut | M8 | 3pcs | SUS304 |
| Washer | Φ8 | 2pcs | SUS304 |
| Spring Washer | Φ8 | 1pcs | PP |
| Clamping Piece | 1/2'' or customized | 4pcs | SUS304 |
| Angle Adaptor | 1pcs | SUS304 | |
| Gasket | Φ20 | 1pcs | SUS304 |
| Bolt | M8x40 | 1pcs | SUS304 |
Features/Benefits:
1. Single multi blocks are manufactured of polypropylene providing thermal, chemical and UV resistance.
2. They come including angle member adapter and necessary hardware.
3. The angle member adapter fastens the clamp to the tower without drilling.
4. The angle member adapter includes a tower member set screw.
5. The hanger mounting rod may be located in either of two mounting holes, depending on orientation the fixing member.
6. Compliant to RoHS (EU 2002/95/EC) and RoHS (China SJ/T 11363-2006) i.e. usable on a global basis.
Capability Index:
1. high temperature: +75℃;
2. low temperature: -40℃;
3. salt spray test: 48h, No Rustiness.
| 1. Reply your enquiry in 24 working hours. |
| 2. Customized design is available. OEM &ODM are welcome. |
| 3. Exclusive and unique solution can be provided to our customer by our well-trained and professional engineers and staffs. |
| 4. Quick delivery time for decent order. |
| 5. Experienced in doing business with big customers. |
| 6. Free Samples can be provided. |
| 7. 100% Trade Assurance of payment & quality. |
PACKING REFERENCE:
