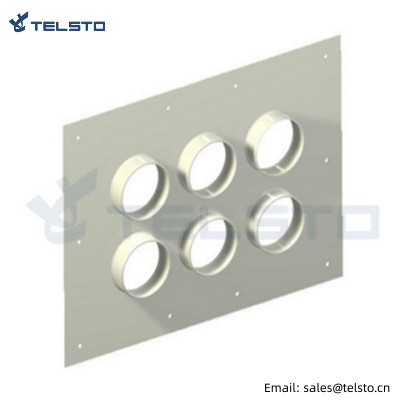

Cable entry panel with 4″ ports. Manufactured from heavy gauge T6 Aluminum
Tough baked-on powder coat finish.
The cable entry panel is used for cellular network, to help the feeder cable get into the BTS shelter.
The cable Entry, which is used for the waterproof when feeder enters the machine room, is composed of entrance wall / roof feed through plate and cable entry boot. It has good air proof and easy installation features. We have Aluminium Alloy Wall / Roof Feed Thru Plate, Stainless Steel Wall / Roof Feed Thru Plate, Circular Orifice type Cable Entry.
| Product | Hole Of Ports | Wall Opening | Overall Size | Part No. |
| 1 | 1 | 4'' x 4'' | 5'' x 5'' | TEL-EP-1x1 |
| 2 | 2 | 4'' x 10'' | 9.5''x 15.5'' | TEL-EP-1x2 |
| 3 | 3 | 4'' x 15'' | 9.5'' x 20'' | TEL-EP-1x3 |
| 4 | 4 | 4'' x 20.5'' | 9.5'' x 25.5'' | TEL-EP-1x4 |
| 5 | 4 | 9.5'' x 11'' | 17.5'' x 17.5'' | TEL-EP-2x2 |
| 6 | 6 | 9.5'' x 15'' | 17.5'' x 23'' | TEL-EP-2x3 |
| 7 | 8 | 9.5'' x 20.5'' | 17.5'' x 25.5'' | TEL-EP-2x4 |
| 8 | 9 | 15'' x 15'' | 23'' x 23'' | TEL-EP-3x3 |
| 9 | 12 | 15'' x 20.5'' | 25.5'' x 25.5'' | TEL-EP-3x4 |
| 10 | 12 | 9.5'' x 31.5'' | 17.5'' x 39.5'' | TEL-EP-2x6 |
| 11 | 16 | 20.5'' x 20.5'' | 25.5'' x 25.5'' | TEL-EP-4x4 |
| 12 | 18 | 15'' x 31.5'' | 25.5'' x 39.5'' | TEL-EP-3x6 |
| 13 | 24 | 20.5'' x 31.5'' | 31'' x 39.5'' | TEL-EP-4x6 |
