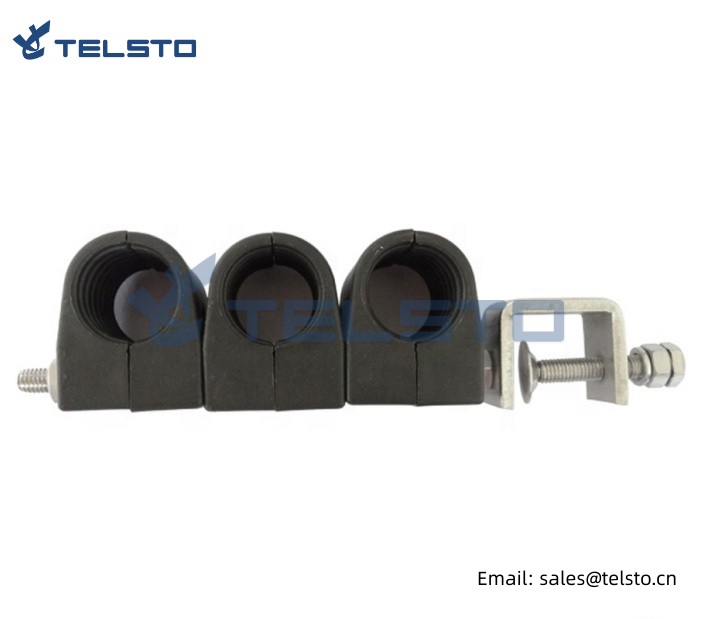

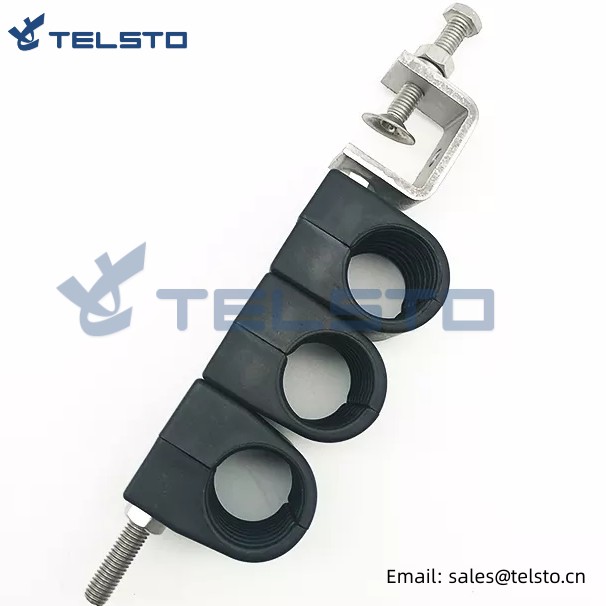

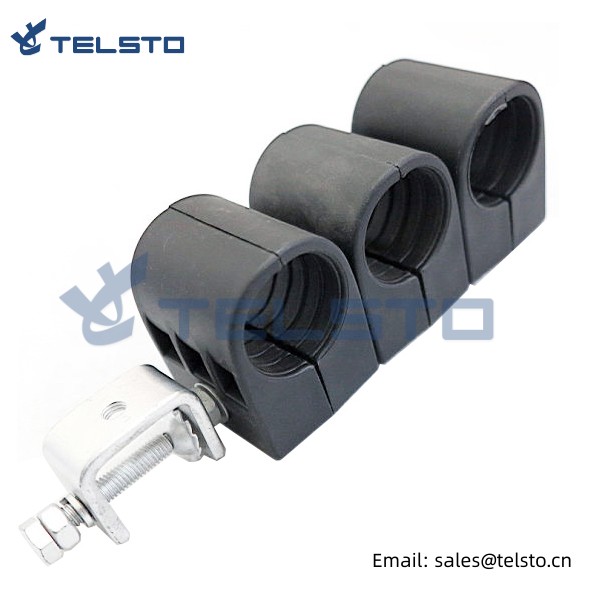

Feeder clamp 78’’ 3 holes
| Technical Specifications | |||||||
| Product Type | For 7/8’’ cable, 3 holes | ||||||
| Hanger Type | Single type | ||||||
| Cable Type | Feeder Cable | ||||||
| Cable Size | 7/8 inch | ||||||
| Holes/Runs | 3 holes | ||||||
| Configuration | Angle member adapter | ||||||
| Thread | 2x M8 | ||||||
| Material | Metal part: 304SST | ||||||
| Plastic parts: PP | |||||||
| Consist of : | |||||||
| Angle adapter | 1pc | ||||||
| Thread | 2pcs | ||||||
| Bolts & nuts | 2sets | ||||||
| Plastic saddles | 6pcs | ||||||
| Axial Load Capability, minimum with no cable slippage | ≥5 times cable weight | ||||||
| Corrosion Resistance, minimum with no degradation | ≥500 hours in salt spray chamber | ||||||
| Operating Temperature | -40°C to +60°C | ||||||
| UV Resistance | ≥100 hours exposure in accelerated UV life chamber | ||||||
| Vibration Survival | ≥4 hours at resonant frequency | ||||||
