N Male Plug Right Angle for 1/2″ common cable LCF 12-50 cable rf connector
Application
Antennas/ Base station /Broad cast /Cable assembly /Cellular /Components /Instrumentation/Microwave Radio/Mil-Aero
PCS/Radar /Radios/Satcom /Surge protection WLAN

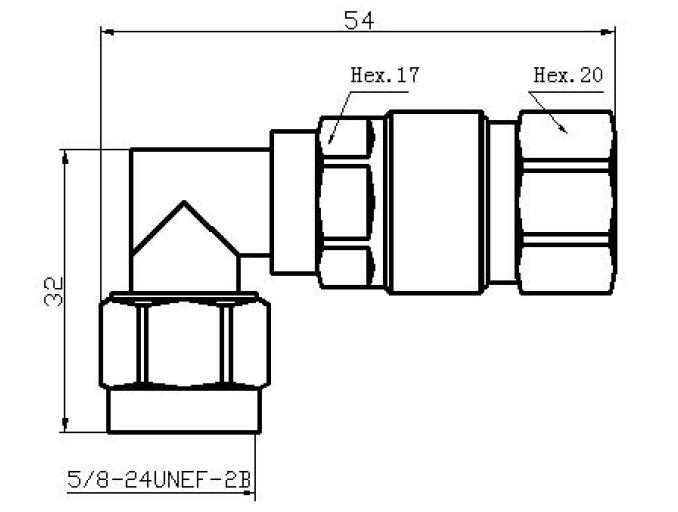

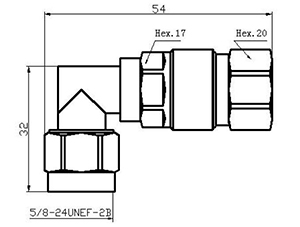

N Male Right Angle for 1/2 LCF
| Interface | |||
| According to | IEC 60169-16 | ||
| Electrical | |||
| Characteristic Impedance | 50 ohm | ||
| Frequency Range | DC-11GHz | ||
| VSWR | VSWR≤1.10(3.0G) | ||
| PIM3 | ≤-160dBc@2x20w | ||
| Dielectric Withstanding Voltage | ≥2500V RMS,50hz,at sea level | ||
| Contact Resistance | Center Contact ≤1mΩ Outer Contact ≤1mΩ | ||
| Dielectric Resistance | ≥5000MΩ | ||
| Mechanical | |||
| Durability | Mating cycles ≥500cycles | ||
| Material and plating |
|||
| Material | plating | ||
| Body | Brass | Tri-Alloy | |
| Insulator | PTFE | - | |
| Center conductor | Tin Phosphor bronze | Ag | |
| Gasket | SIlicone rubber | - | |
| Other | Brass | Ni | |
| Environmental | |||
| Temperature Range | -40℃~+85℃ | ||
| Rosh-compliance | Full ROHS compliance | ||
FAQS
Q: Do you accept customization?
A: Yes, we are customizing products according to the customer’s requirements.
Q: How long is the delivery time?
A: Usually we keep stocks, so delivery is fast. For bulk orders, it will be up to the demand.
Q: What is the shipping methods?
A: Flexible shipping methods per customer’s urgency, such as DHL, UPS, Fedex, TNT, by air, by sea are all acceptable.
Q: Can our logo or company name can be printed on your products or the packages?
Related
Model: TEL-NMA.12-RFC
Description:

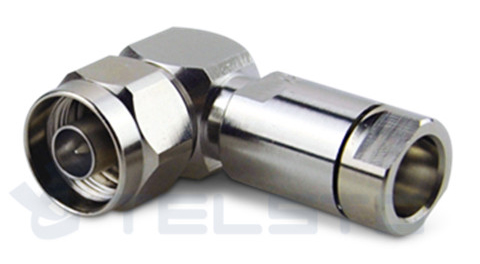

N Male Angle connector for 1/2″ flexible coaxial cable
| Material and Plating | |
| Center contact | Brass / Silver Plating |
| Insulator | PTFE |
| Body & Outer Conductor | Brass / alloy plated with tri-alloy |
| Gasket | Silicon Rubber |
| Electrical Characteristics | |
| Characteristics Impedance | 50 Ohm |
| Frequency Range | DC~3 GHz |
| Insulation Resistance | ≥5000MΩ |
| Dielectric Strength | ≥2500 V rms |
| Center contact resistance | ≤1.0 mΩ |
| Outer contact resistance | ≤0.25 mΩ |
| Insertion Loss | ≤0.12dB@3GHz |
| VSWR | ≤1.08@-3.0GHz |
| Temperature range | -40~85℃ |
| PIM dBc(2×20W) | ≤-160 dBc(2×20W) |
| Waterproof | IP67 |
Installation Instructions of N or 7 / 16 or 4310 1 / 2″ super flexible cable
Structure of connector: ( Fig1 )
A. front nut
B. back nut
C. gasket
Stripping dimensions is as shown by diagram ( Fig2 ), attention should be paid while stripping:
1. The end surface of inner conductor should be chamfered.
2. Remove impurities such as copper scale and burr on the end surface of the cable.
Assembling the sealing part: Screw the sealing part in along the outer conductor of the cable as shown by the diagram ( Fig3).
Assembling the back nut (Fig3).
Combine the front and back nut by screwing as shown by diagram ( Figs( 5)
1. Before screwing, smear a layer of lubricating grease on the o-ring.
2. Keep the back nut and the cable motionless, Screw on main shell body on back shell body. Screw down main shell body of back shell body using monkey wrench. Assembling is finished.
