TEL-DIN-M-2W


  • Place of Origin: China (Mainland)
  • Brand Name: Telsto
  • Model Number: TEL-DIN-M-2W
  • Shipment Method: Sea way, air way, DHL, UPS, FedEx, etc.
  • Description

    Specifications

    Product Support

    Termination loads absorb RF & microwave energy and are commonly used as dummy loads of antenna and transmitter. They are also used as match ports in many multi port microwave device such as circular and directional coupler to make these ports which are not involved in the measurement be terminated in their characteristic impedance in order to ensure an accurate measurement.

    Termination loads, also call dummy loads, are the passive 1-port interconnect devices, which provide a resistive power termination to properly terminate the output port of a device or to terminate one end of an RF cable. Telsto Termination loads are characterized by low VSWR, high power capacity and performance stability. Widely used for DMA/GMS/DCS/UMTS/WIFI/WIMAX etc.

    The series of Termination Loads is medium power loads which operate from DC to 3GHz. Cooling fins minimize temperature rise of the resistive film terminating element, contained within a carefully matched housing. Standard connectors are N and 7 /16 DIN, male and female.

    Features
    ● Multi-band version for DC-3GHz
    ● High reliability
    ● Low VSWR
    ● Ideal for BST applications
    ● N & 7 /16 DIN male/female connectors

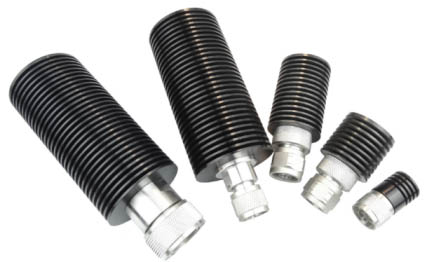

    TEL-DIN-M-2W1
    Product Description Part No
    Termination Load

    TEL-DIN-M-2W2

    N Male /N Female, 2W TEL-TL-NMF2WV
    N Male/N Female, 5W TEL-TL-NMF5W
    N Male/N Female, 10W TEL-TL-NMF10W
    N Male/N Female, 25W        TE-T- NMF 2W
    N Male/N Female, 50W TEL-TL-NMF50W
    N Male/N Female, 100W       TEL-TL-NMF100W
    DIN Male/ Female, 10W TEL-TL-DINMF10WV
    DIN Male/Female, 25W        TEL-TL-DINMF25W
    DIN Male/ Female, 50W TEL-TL-DINMF50W
    DIN Male/ Female, 100WV     TEL-TL-DINMF100WV
    Part No. Frequency Range (MHz) lmpedance(O) Power Rating(W) VSWR Temperature Range(°C)
    TEL-TL-NM/F2W DC-3GHz 50 2 1.15: 1 -10-50
    TEL-TL-NM/F5W DC-3GHz 50 5 1.15: 1 -10-50
    TEL-TL-NM/F10W           DC-3GHz 50 10 1.15: 1 -10-50
    TEL-TL-NM/F25W DC-3GHz 50 25 1.15: 1 -10-50
    TEL-TL-NM/F50W                 DC-3GHz 50 50 1.15: 1 -10-50
    TEL-TL-NM/F100W DC-3GHz 50 100 1.25: 1 -10-50
    TEL-TL-DINM/F10W  DC-3GHz 50 10 1.15: 1 -10-50
    TEL-TL-DINM/F25W DC-3GHz 50 25 1.15: 1 -10-50
    TEL-TL-DINM/F50W DC-3GHz 50 50 1.15: 1 -10-50
    TEL-TL-DINM/F100W DC-3GHz 50 100 1.25: 1 -10-50

    Packing Reference

    2w DIN(1)

  • Previous:
  • Next:

  • Installation Instructions of N or 7 / 16 or 4310 1 / 2″ super flexible cable

    Structure of connector: ( Fig1 )
    A. front nut
    B. back nut
    C. gasket

    Installation Instructions001

    Stripping dimensions is as shown by diagram ( Fig2 ), attention should be paid while stripping:
    1. The end surface of inner conductor should be chamfered.
    2. Remove impurities such as copper scale and burr on the end surface of the cable.

    Installation Instructions002

    Assembling the sealing part: Screw the sealing part in  along the outer conductor of the cable as shown by the diagram ( Fig3).

    Installation Instructions003

    Assembling the back nut  (Fig3).

    Installation Instructions004

    Combine the front and back nut by screwing as shown by diagram ( Figs( 5)
    1. Before screwing, smear a layer of lubricating grease on the o-ring.
    2. Keep the back nut and the cable motionless, Screw on main shell body on back shell body. Screw down main shell body of back shell body using monkey wrench. Assembling is finished.

    Installation Instructions005
