Telsto Cable Entry Panel

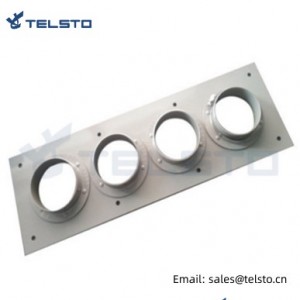

Telsto Aluminum Feed-thru Entry Panels enable multi coax runs to enter building and shelters. The entry panel supports coax at the entry point and prevents moisture from entering the building. Feed-thru entry panels feature 4” or 5” openings to accept 4” or 5” boot assemblies. They can be used in both interior and exterior wall mounting applications. Each feed-thru entry panel includes #14 stainless steel screws, finishing washers, plastic anchors, and entry port caps. Feed-thru entry panels are manufactured from high quality aluminum and are powder-coated to ensure long-term integrity and provide appealing aesthetics.
*Application: Entry port solutions
*Size: Customized
*Design: Entry plates with round ports
*Feature: Easy to install solution
*Mounts to: Walls
*Material: Aluminum
*Includes: Port, caps, mounting hardware
As a National wide wire &cable supplier Telsto continually provide different quality products in the telecom communication fields, the main product is 7/8 feeder cable, 1/2 feeder cable, feeder claim, feeder tools, all kind of the male, female, DIN, connector feeder connector, feeder grounding kit, grounding bar, low loss 7/8 jumper cable and 1/2 jumper cable, indoor optic jumper cable and outdoor fiber cable, splinter and couple and accessories in the telecom field.

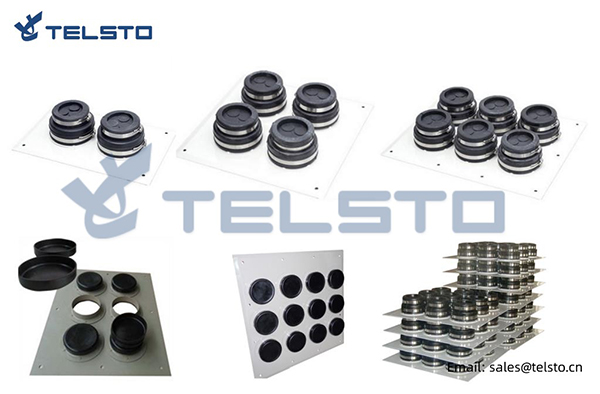

Feeder Window Wall Type
Cable entry is used for weatherproof sealing when several different feeders cables and other cable entry into bastion room. With excellent windproof, waterproof, leak proof performance, it could make all kinds of indoor instruments not be impacted by outside weather. The Frame is made of SUS304 or Aluminium, and surface is passivized or powder plated, the rubber module has the performance of Anti-aging, high and low temperature resistance, corrosion resistance. With simple structure, no need to use tapes, this system could be easily installed. Cable entry size and color be customized.
1. Wall Type
| Material | |
| Metal of panel | 304/Q235/AI |
| Surface plating | Natural color or powder painted |
| Boot | Nit rile Butadiene rubber |
| Specification | |
| Hole number | two/four/six/nine/twelve holes |
| Boot spec. | 1/2x4, 7/8x3, 5/4x3, or 13/8x1 |
| Thickness of panel | 2 mm |
| Sealing plate size | Outer dimension (mm) | Beforehand hole size |
| 2 holes | 400 x 200 | 240 x 100 |
| 4 holes | 400 x 400 | 240 x 240 |
| 6 holes | 390 x 540 | 240 x 380 |
| 9 holes | 500 x 500 | 380 x 380 |
| 12 holes | 540 x 640 | 380 x 510 |

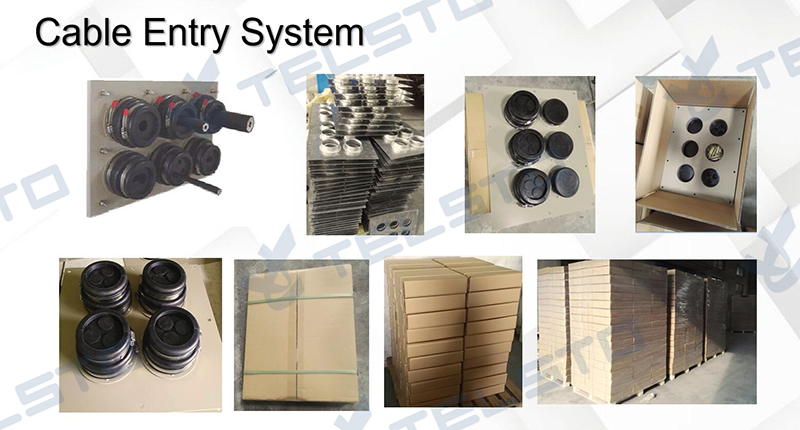

PACKING REFERENCE:
