High quality DC-3.0GHz N type 100W RF Dummy Load / Termination Load


  • Place of Origin: shanghai, China (Mainland)
  • Brand Name: Telsto
  • Model Number: TEL-100-N-F
  • Power: 100W
  • IP(dust&water proof): IP65
  • connector type: N Female
  • Description

    Specifications

    Product Support

    Termination loads absorb RF & microwave energy and are commonly used as dummy loads of antenna and transmitter. They are also used as match ports in many multi port microwave device such as circulation and directional couple to make these ports which are not involved in the measurement be terminated in their characteristic impedance in order to ensure an accurate measurement.

    Termination loads, also call dummy loads, are the passive 1-port interconnect devices, which provide a resistive power termination to properly terminate the output port of a device or to terminate one end of an RF cable. Telsto Termination loads are characterized by low VSWR, high power capacity and performance stability. Widely used for DMA/GMS/DCS/UMTS/WIFI/WIMAX etc.

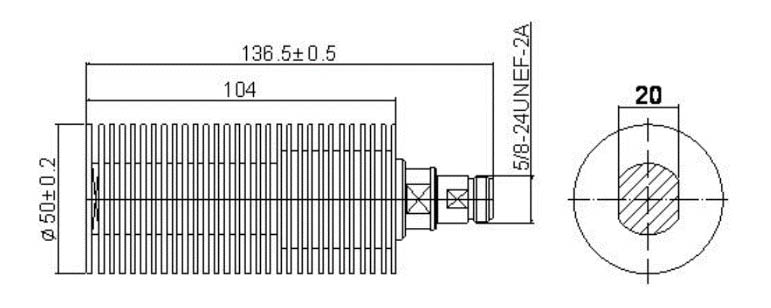

    TEL-100-N-F

    Technical Specifications:

    Product  Description Part No.
    Termination Load N Male / N Female, 2W TEL-TL-NM/F2W
    N Male / N Female, 5W TEL-TL-NM/F5W
    N Male / N Female, 10W TEL-TL-NM/F10W
    N Male / N Female, 25W TEL-TL-NM/F25W
    N Male / N Female, 50W TEL-TL-NM/F50W
    N Male / N Female, 100W TEL-TL-NM/F100W
    DIN Male / Female, 10W TEL-TL-DINM/F10W
    DIN Male / Female, 25W TEL-TL-DINM/F25W
    DIN Male / Female, 50W TEL-TL-DINM/F50W
    DIN Male / Female, 100W TEL-TL-DINM/F100W

    Our service
    1. Professional skills support.
    2. OEM services is available.
    3. Within 24 hours reply.
    4. We will try our best to provide support whatever you need and we can do.

    Material and Plating
    Center contact Brass / Silver Plating
    Insulator PTFE
    Body & Outer Conductor Brass / alloy plated with tri-alloy
    Gasket Silicon Rubber
    Electrical Characteristics
    Characteristics Impedance 50 Ohm
    Frequency Range DC~3 GHz
     Working Humidity 0-90%
    Insertion Loss             0.09
    VSWR                    1.10@3Ghz
    Temperature range ℃ -35~125

  • Previous:
  • Next:

  • Installation Instructions of N or 7 / 16 or 4310 1 / 2″ super flexible cable

    Structure of connector: ( Fig1 )
    A. front nut
    B. back nut
    C. gasket

    Installation Instructions001

    Stripping dimensions is as shown by diagram ( Fig2 ), attention should be paid while stripping:
    1. The end surface of inner conductor should be chamfered.
    2. Remove impurities such as copper scale and burr on the end surface of the cable.

    Installation Instructions002

    Assembling the sealing part: Screw the sealing part in  along the outer conductor of the cable as shown by the diagram ( Fig3).

    Installation Instructions003

    Assembling the back nut  (Fig3).

    Installation Instructions004

    Combine the front and back nut by screwing as shown by diagram ( Figs( 5)
    1. Before screwing, smear a layer of lubricating grease on the o-ring.
    2. Keep the back nut and the cable motionless, Screw on main shell body on back shell body. Screw down main shell body of back shell body using monkey wrench. Assembling is finished.

    Installation Instructions005
